Fan Speed Controller
Price range: £141.00 through £150.00 Exc. VAT

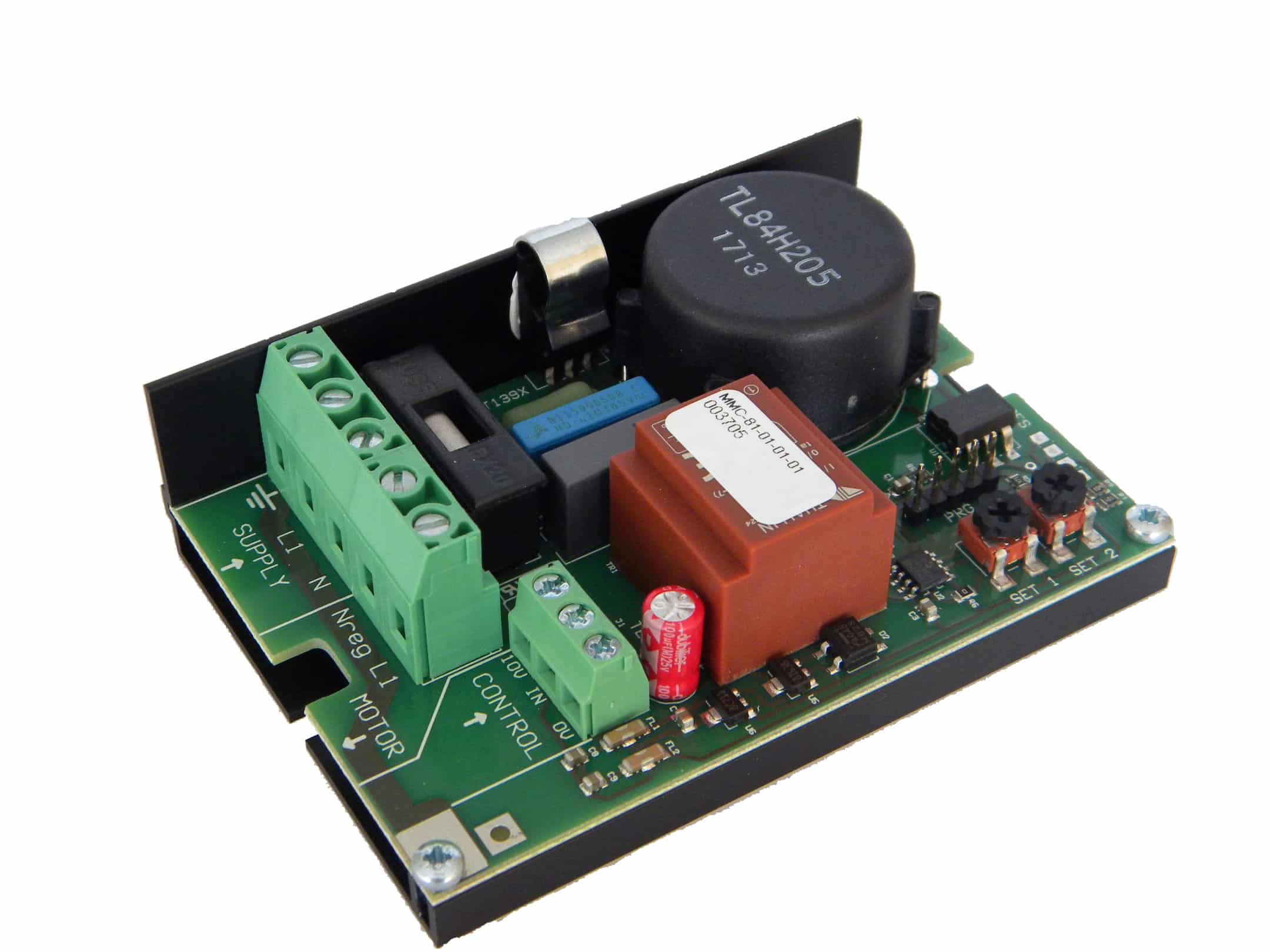

The FSC-MMC is a miniature plug and play efficient triac controller for small and medium sized single phase motors.
The FSC-MMC is a miniature plug-and-play, efficient triac controller for small and medium-sized single-phase motors.
Full technical information on data sheet below.
Product Code:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â FSC-MMC
Supply:                       180 – 250V ~ 50Hz
Fuse:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4, 6 or 8 Amp
Max Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4, 6 or 8 Amp
Efficiency:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Min. 80%
Ambient Temperature:Â Â Â Â Â Â Â Â Â Â Â -10 / +40ËšC
Humidity:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Non-condensing 10-90%RH
Input:                         0 – 10Vdc
Termination:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Rising Cage terminals
Protection:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â IP20
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 65 x 95 x 30mm
Additional information
| Weight | 0.63 kg |
|---|---|
| Dimensions | 65 × 95 × 30 cm |
| Amps | 4A, 6A, 8A |
