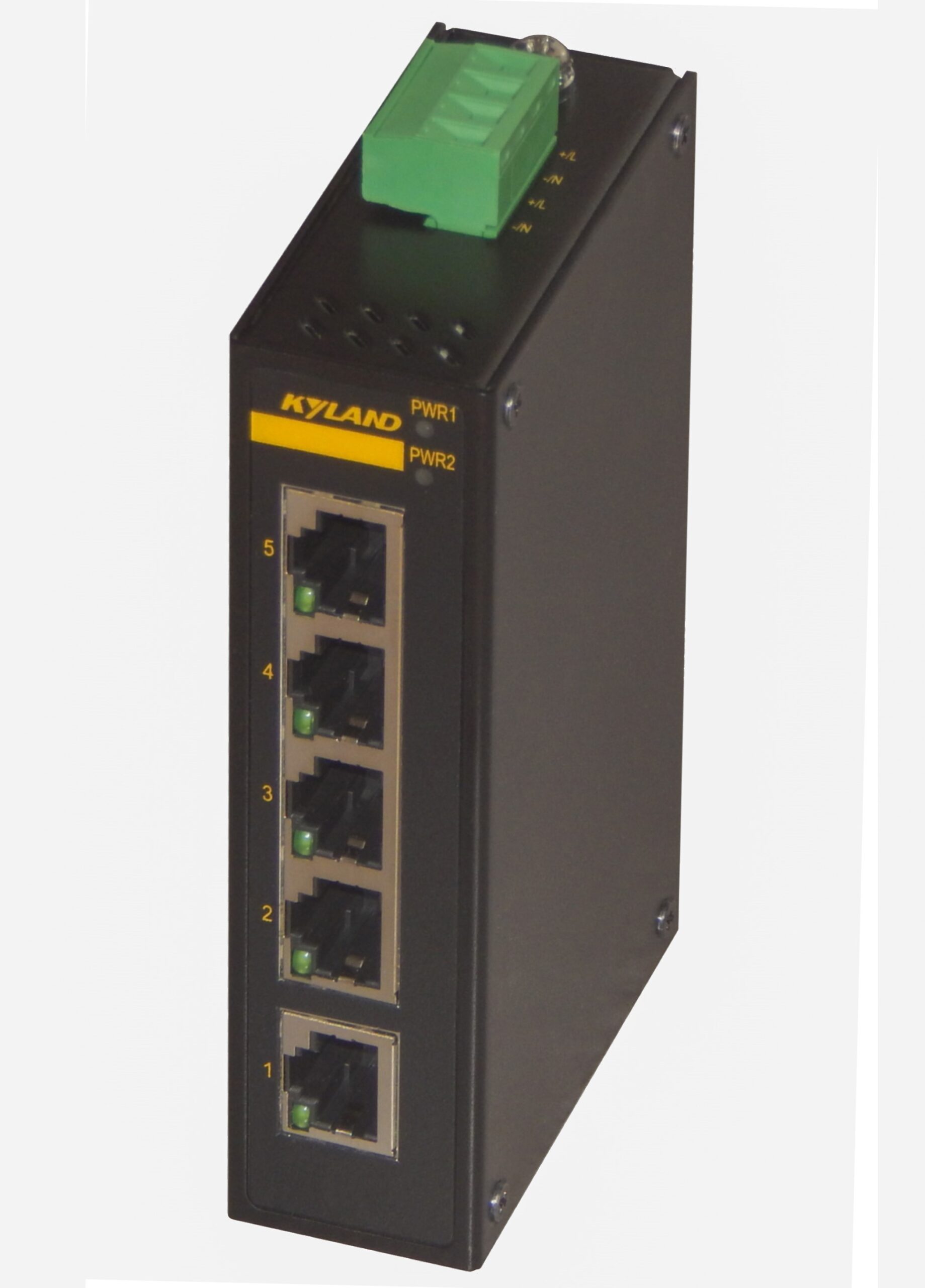

5 Port Ethernet Switch 24VAC/DC

• 5 Port 10/100 Mbs Ethernet Switch
• 1 Fast ethernet fibre/RJ45 optional port, 4 x 10/100 Base t(x) ports
• Redundant dual power inputs: 12-48VDC/18-30VAC
• Din Rail Mount
• Industrial temperature range
• Metal Housing

Product Code:                        IES-0005T

UKCA Declaration:             IES-0005T-UKCA

Specification

Operating Temperature	-10°C to +60°C
Approvals	UL508, Class I Div 2, ATEX Zone 2, IECEx, CE, FCC
Dimensions (mm)	115x68x30
Ingress Protection (IP Rating)	IP30
Data Transmission Speed	10/100 Mbps
Ethernet Port	5 x RJ45
Housing	IP30 Metal Housing
Manufacturer/Brand	Kyland
Voltage	12-48VAC/18-30VAC



BMS Parts PDF Download

IES-0005T
