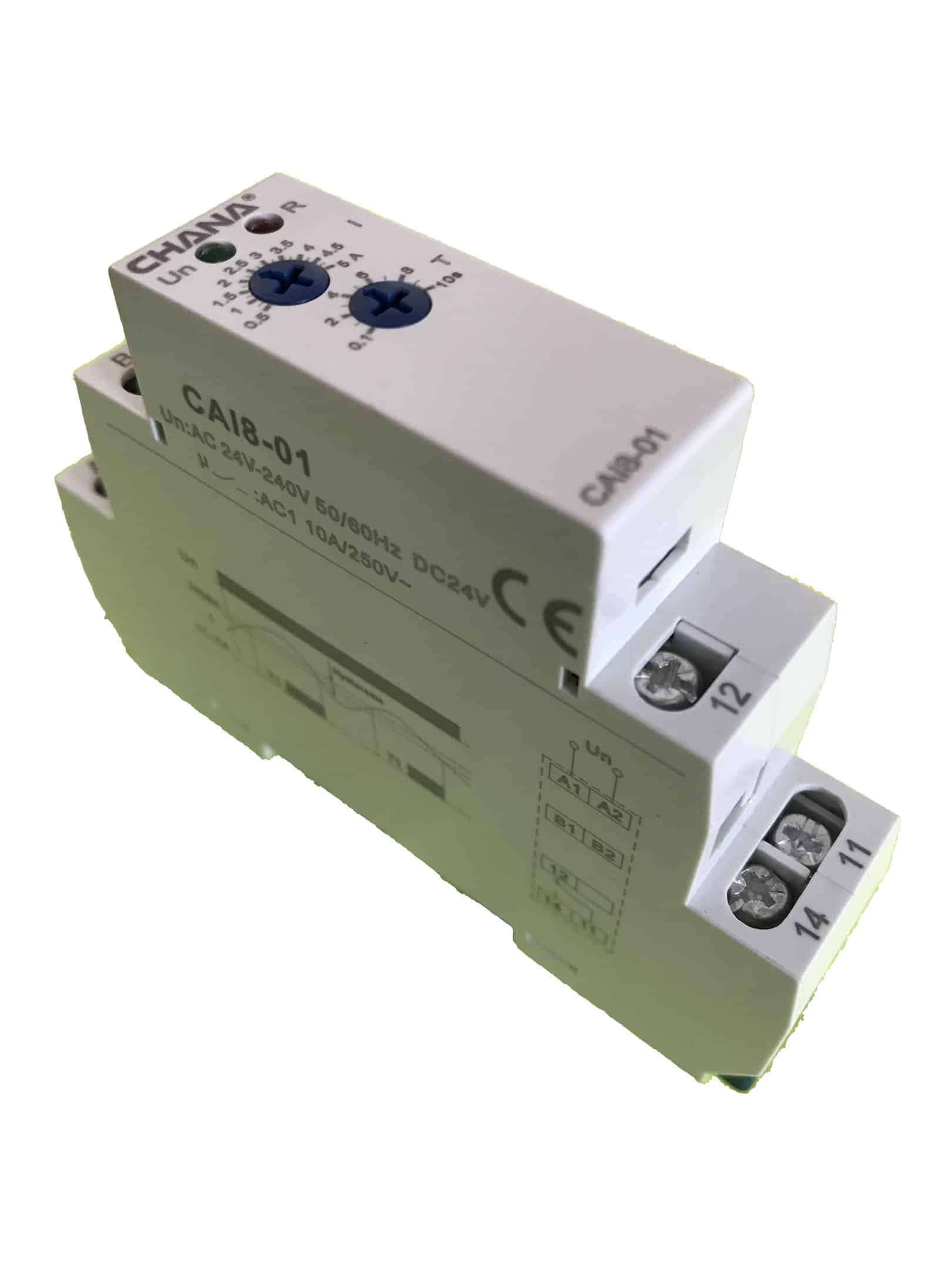

Current Monitoring Relay CMR5-VFC
£32.00 Exc. VAT
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the voltage-free contact at a set current.

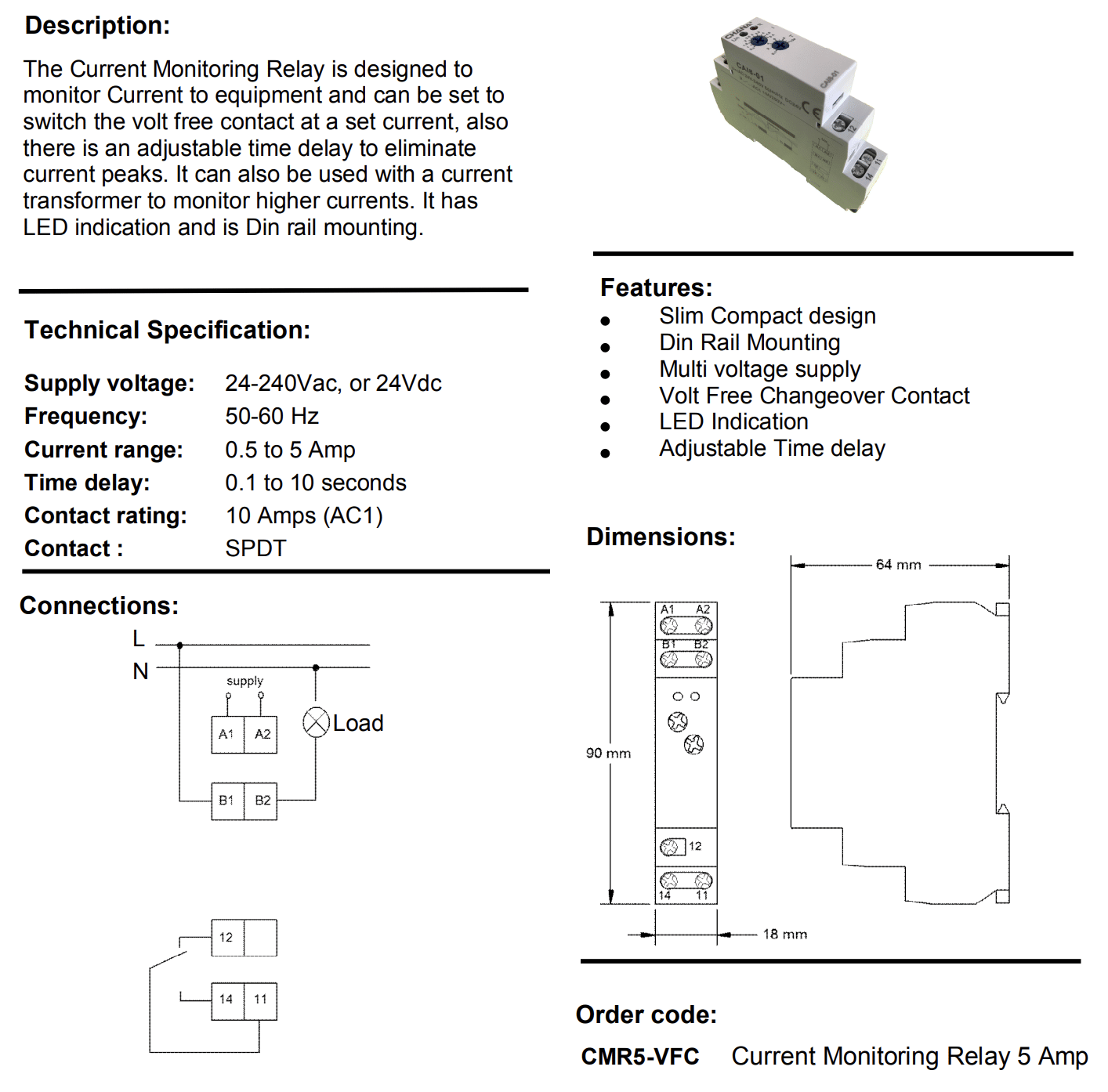

The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the volt free contact at a set current, also there is an adjustable time delay to eliminate current peaks. It can also be used with a current transformer to monitor higher currents. It has LED indication and is Din rail mounting.
Supply Voltage:                24 – 240Vac, or 24Vdc
Frequency:                      50 – 60Hz
Current Range:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.5 to 5 Amp
Time Delay:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.1 to 10 seconds
Contact Rating:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10 Amps (AC1)
Contact:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â SPDT
