Three Phase Thyristor Power Controller 12 Kw 415V

Description

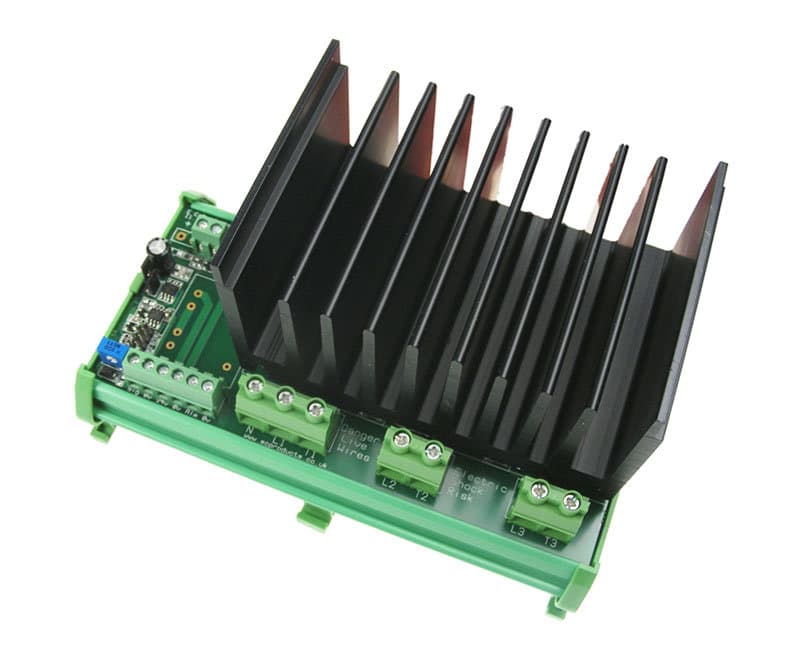

The DIN Rail mounting Power Controllers TCD3 are suitable for providing control of electric heating loads from an analogue signal. Applications include electric heating coils, heating cables, and electric furnaces. The units utilize solid-state switching with “zero crossing technology” to provide accurate switching control. All items have an alarm output for over-temperature protection and LED Indication of Output ON. The TCD3 is designed to be mounted on a DIN rail.

Specification
Input:                              Selectable 0…10V, 0…5V, 2…10V, 4…20mA
Power Supply:           24Vac/dc +/-10%
Alarm Output:           24V alarm output drops to 0V on the alarm for connecting to the external relay
Rated Load:                  Load/Ph    16A                 Dissipated Heat 33W
Max Heater Duty:    12Kw
Rated Supply:              380…440Vac, 50/60Hz
LED Indication:           ON when output is on
Terminals:                       Rising cage terminals
Ambient Temp.:           Maximum 45°C without de-rating
Dimensions:                   170 x 110 x 102mm
Country of Origin:      United Kingdom

BMS Parts PDF Download

TCD3-12
