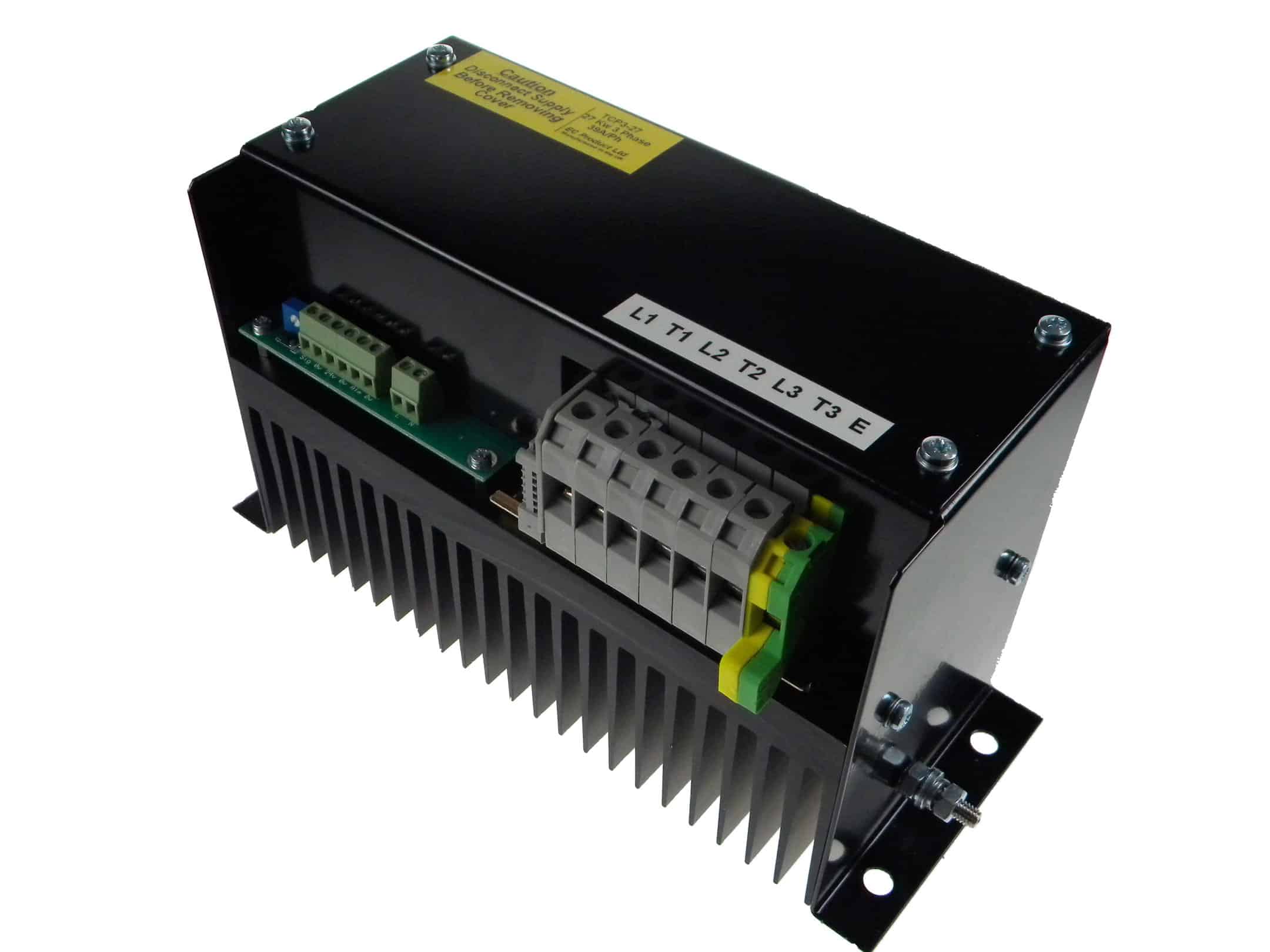

Three Phase Thyristor Power Controller 36Kw 415V

£490.00 Exc. VAT

The panel mounting Power Controllers TCP3 are suitable for providing control of electric heating loads from an analogue signal.

Description

The panel mounting Power Controllers TCP3 are suitable for providing control of electric heating loads from an analogue signal. Applications include electric heating coils, heating cables, and electric furnaces. The units utilize solid-state switching with “zero crossing technology” to provide accurate switching control. All items have an alarm output for over-temperature protection and LED Indication of Output ON. The TCP3 is designed to be mounted on the control panel backplate.

Specification
Input:                              Selectable 0…10V, 0…5V, 2…10V, 4…20mA
Power Supply:           24Vac/dc +/-10%
Alarm Output:           24V alarm output drops to 0V on the alarm for connecting to the external relay
Rated Load:                  Load/Ph    50A                 Dissipated Heat 100W
Max Heater Duty:    36Kw
Rated Supply:              380…440Vac, 50/60Hz
LED Indication:           ON when output is on
Terminals:                       Rising cage terminals
Ambient Temp.:           Maximum 45°C without de-rating
Dimensions:                   257 x 102 x 142mm
Country of Origin:      United Kingdom

BMS Parts PDF Download

BMS Parts PDF Download

TCP3-27

Additional information

Weight 3.6 kg
Dimensions 26 × 11 × 15 cm
