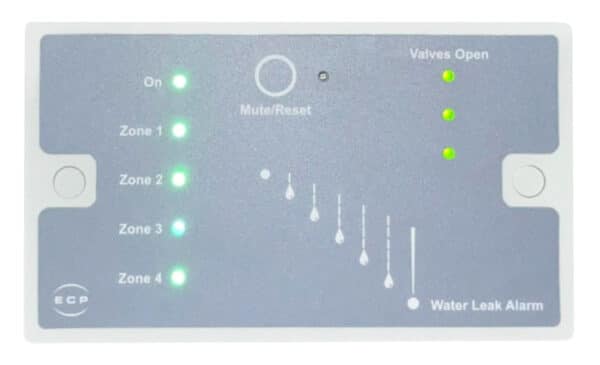

Four Zone Water Leak Detection Module and Valve Controller WLM-VC34
£156.00 Exc. VAT
The WLM-VC leak detection module has up to 4 sensor inputs with zone indication, with volt-free alarm and a 24 alarm output, this unit is designed to fit a standard 2 gang back box allowing it to be flush or surface mounted.

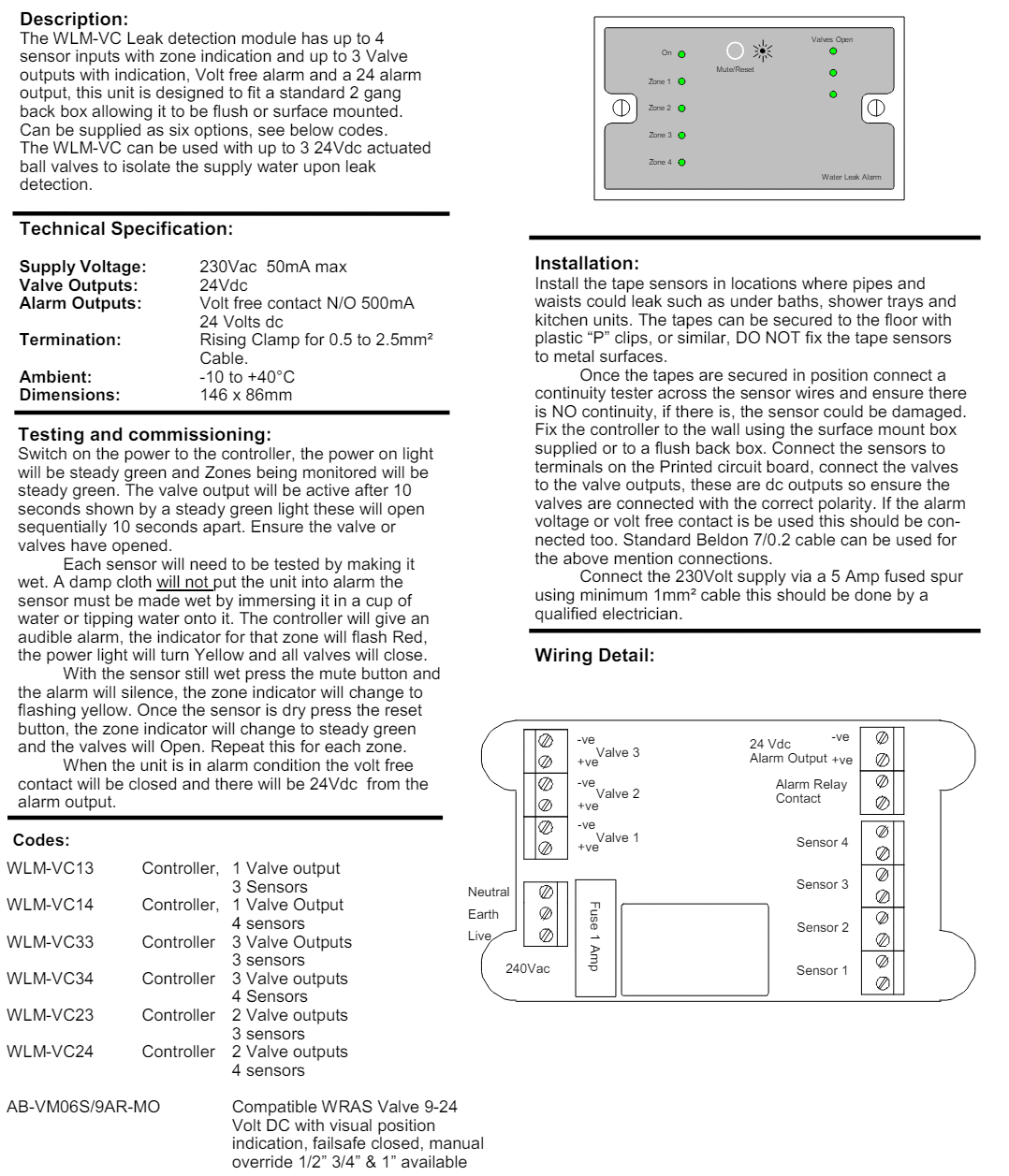

WLM-VC Description
The WLM-VC leak detection module has up to 4 sensor inputs with zone indication, with a volt-free alarm and a 24 alarm output, this unit is designed to fit a standard 2 gang back box allowing it to be flush or surface mounted.
It can be supplied as six options (see codes on datasheet). The WLM-VC can be used with up to 3 24Vdc actuated ball valves to isolate the supply water upon leak detection.
Specification
Supply Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 230Vac - 50mA max.
Valve Outputs:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3 x valve outputs 24Vdc
Sensors:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Supplied with 4
Alarm Outputs:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Volt free contact N/O 500mA 24Vdc
Termination:                 Rising clamp for 0.5 – 2.5mm² cable
Ambient Temperature:Â Â Â Â Â Â Â Â Â -10 to +40ËšC
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 146 x 86mm
Additional information
| Weight | 0.20 kg |
|---|---|
| Dimensions | 7.5 × 4.5 × 3.2 cm |
