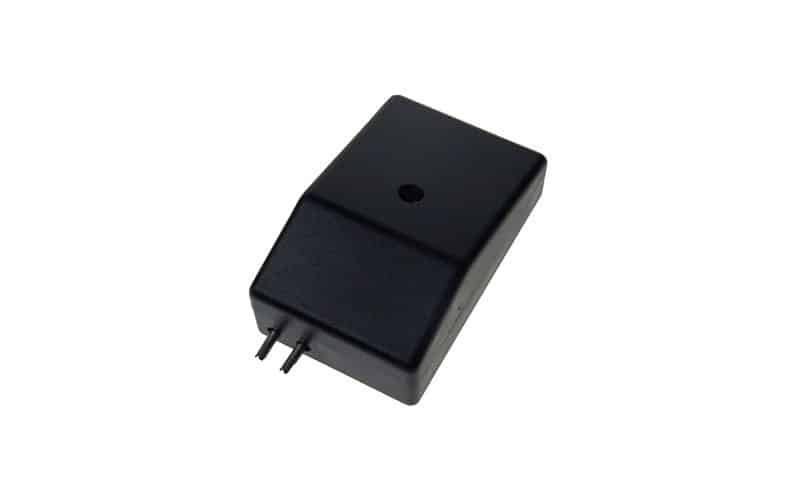

Water Detection Point Sensor WL-PS1
£16.50 Exc. VAT
A range of single-zone water leak detection modules in DIN mounting carriers.
WL-PS1 Description
A range of single-zone water leak detection modules in DIN mounting carriers.
One or more detector tapes or cables to remote water sensors totaling up to 200m in length can be connected and receive an AC excitation signal to minimise corrosion.
A relay output is provided with an LED indicating the alarmed condition.
Typical point water sensor applications include Detecting a pool of water caused by a leak.
Specification
Connection Type:Â Â Â Â Â Â Â Â 2-way terminal block
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Body: 75 x 45 x 32mm - Probes: 8mm long 8mm separation
Materials:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Probes: Stainless steel - Body: ABS
- Detects pool of water
- Suitable for occasional leaks
- For mounting on the skirting board or inside control panels.
- Compatible with our Water Detector Modules - WLM4-230 - WLM4-24 - WL-DT24 - WL-DT24-D
- Stainless steel probes
Additional information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 7.5 × 4.5 × 3.2 cm |
