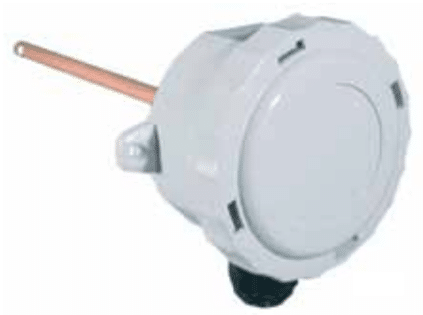

Air Velocity Transmitter 0/8 m/s – 0-10Vdc – AVS-8
£198.00 Exc. VAT
The AV range of Air Velocity Sensors is designed to measure the air velocity in HVAC ducts and provide a linear 0…10Vdc output signal across the range.
Available on back-order

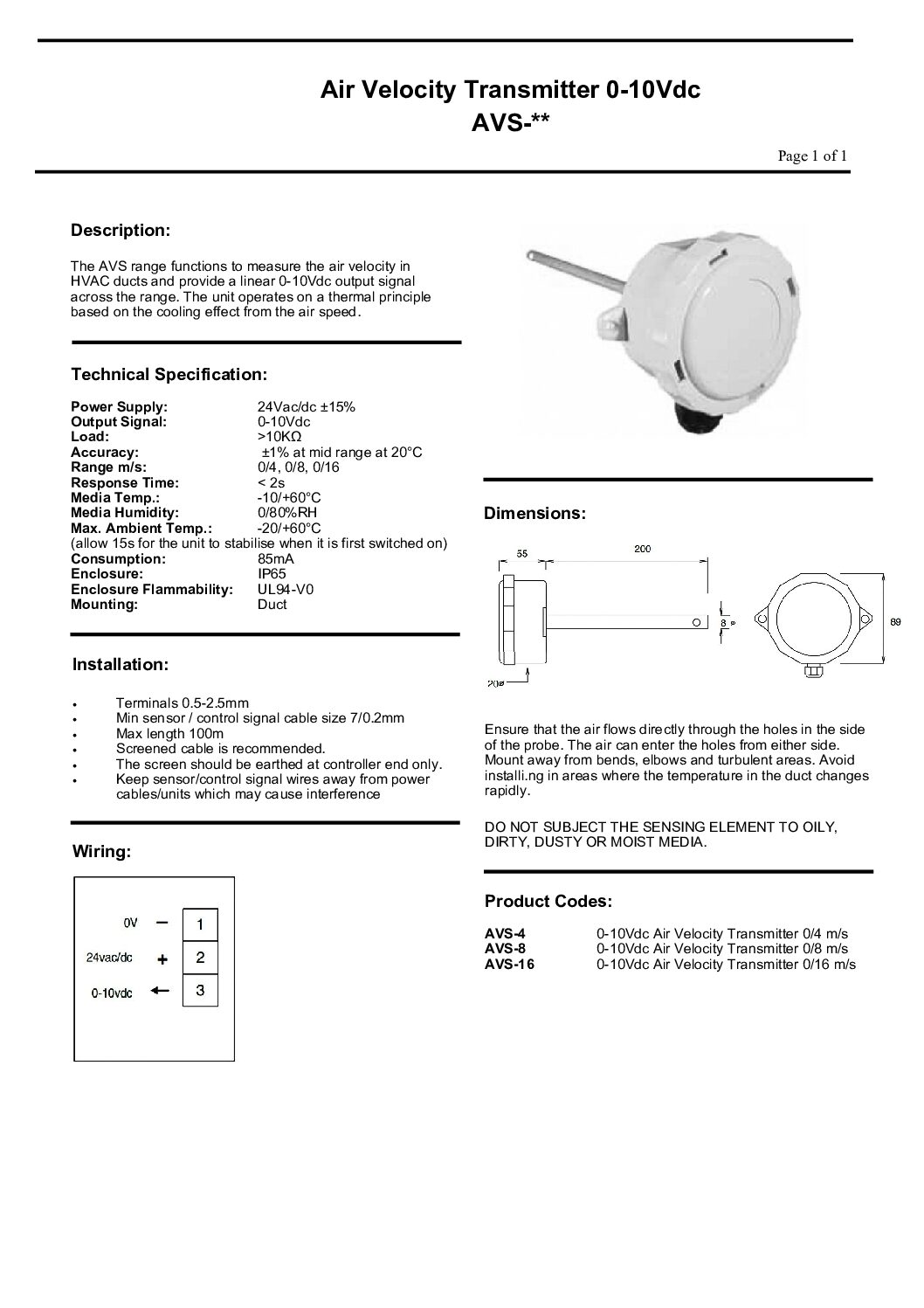

Description
The AVS range functions to measure the air velocity in HVAC ducts and provide a linear 0-10Vdc output signal across the range. The unit operates on a thermal principle based on the cooling effect of the air speed.
Specification
Power Supply: 24Vac/dc ±15%
Output Signal: 0-10Vdc
Load: >10KΩ
Accuracy: ±1% at mid range at 20°C
Range m/s: 0/8
Response Time: < 2s
Media Temp.: -10/+60°C
Media Humidity: 0/80%RH
Max. Ambient Temp.: -20/+60°C
Consumption: 85mA
Enclosure: IP65
Enclosure Flammability: UL94-V0
Mounting: Duct
Additional information
| Weight | 0.10 kg |
|---|---|
| Length | 80mm, 140mm, 195mm, 250mm |
