FCU 24VAC Honeywell M7410E1002 actuator 24v 0/2-10vdc

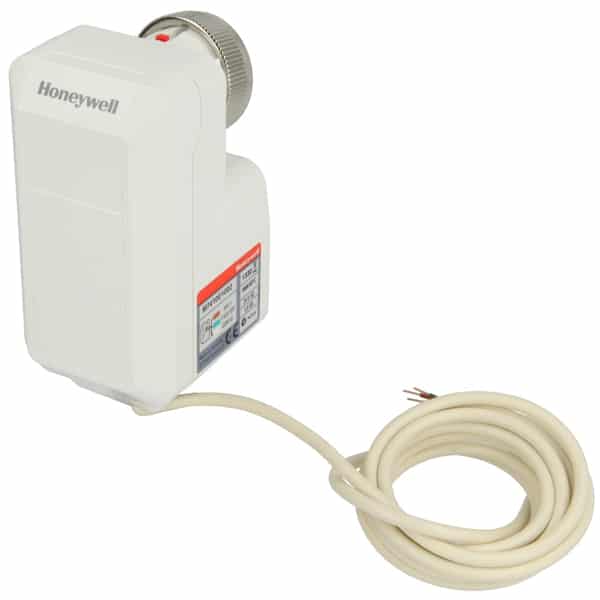

This compact Honeywell M7410E 180 N modulating linear valve actuator works alongside M30 x 1.5 interface Honeywell valves to provide modulating control. It suits fan coil units, induction units, small reheaters, and recoolers, and can also be used in zone control applications and electronic temperature control systems with hot and/or cold water as the controlled medium. This actuator is fully compatible with all controllers offering 0-10V or 2-10V output signals.

Product features

• • Control type: modulating 0 to 10V, 2 to 10V

  • Power consumption: 1.8 VA/1.2W (motor running), 0.6 VA/0.2W (motor stopped)

  • Microprocessor-based positioner ensures precise stem positioning

  • Small size for installation where space is limited

  • Low power consumption

  • Easy-to-operate direct/reverse acting switch

  • Simple input signal override (e.g. for frost protection function)

  • Magnetic coupling for stem force limitation

  • Self-adjustment of close-off point

  • Supplied with pre-wired connection cable

  • Simple, standardised valve/actuator coupling

  • No tools required for mounting

  • Visual valve position indicator furnished with actuator

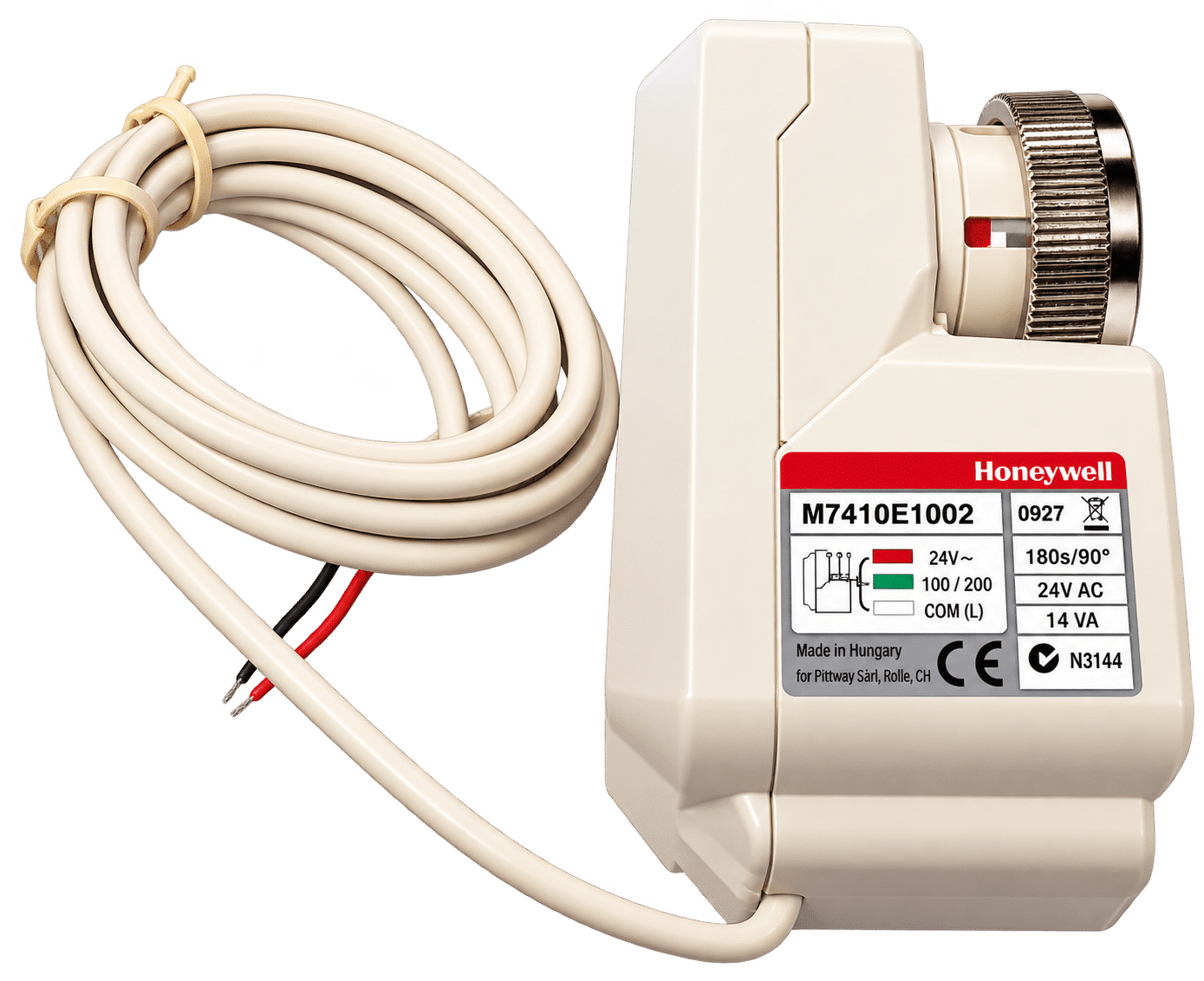

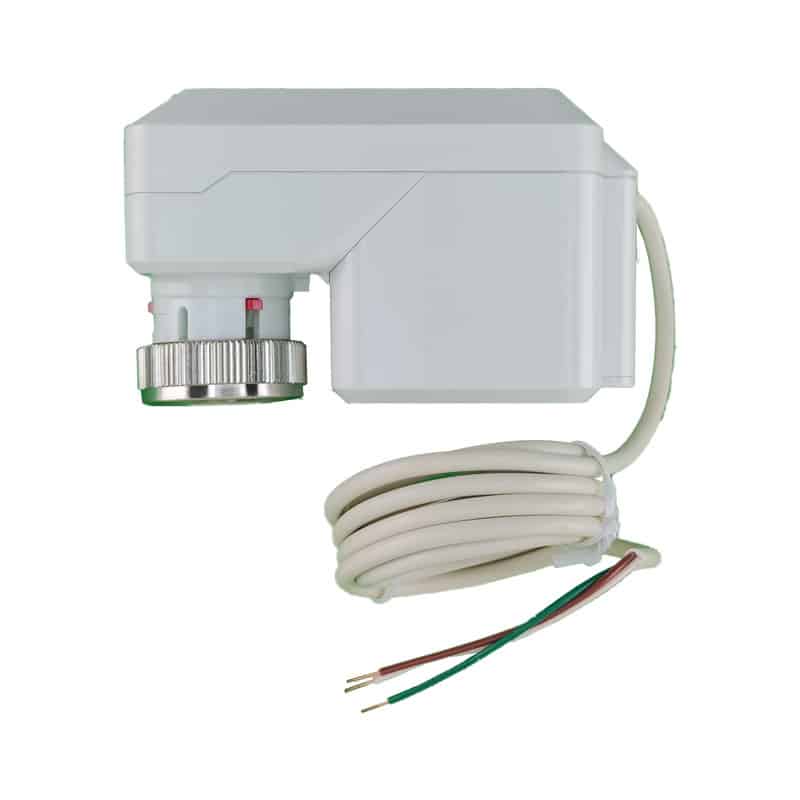

  • 1.5 m cable connection

  • IP42 rated
