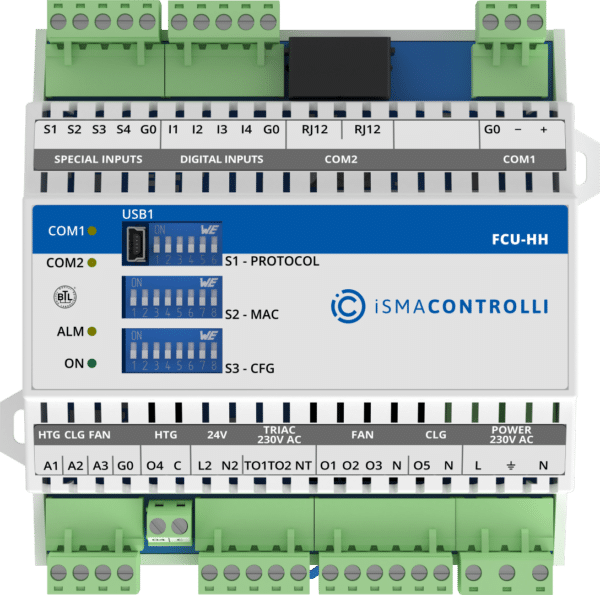

iSMA-B-FCU-HH

Tired of complicated and limited fan coil controllers? Our next-generation controller eliminates those frustrations, combining unparalleled ease of use, ultimate flexibility, and exceptional value in a single unit.

Here are the top 6 reasons to choose this controller for your next project:

1. **Pre-Loaded for Simplicity:** Comes with software templates covering over 95% of application requirements, minimising setup time and changes.
2. **Effortless Programming:** Fully programmable with our intuitive **iSMA Tool**no prior experience or specialized training is needed.

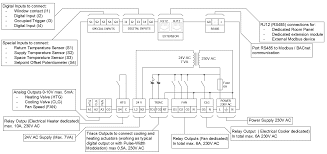

3. **Generous I/O Capacity:**
* 4 Universal/Special Inputs
* 4 Digital Inputs
* 3 Analogue Outputs
* 3 Fan Speed Relays
* 1 Relay for Electric Heater
* 1 Relay for Electric Cooler
* 2 Triac Outputs for Heating/Cooling Valves
4. **Extensive Sensor Support:** Supports a wide range of universal input sensors and can read any 10K3 sensor by default.
5. **Built-In Power:** Features an integrated 24V AC transformer capable of powering most actuator valves on the market.
6. **Dual Communication Ports:**
* For connection to any Modbus or BACnet BMS controller.
* For connection to any Modbus display.

**Quick & Easy Setup:** Configuring for an existing application is simple. All you need is a screwdriver. Follow our guide video to get started quickly.

### **Key Features**

* Preloaded universal application for immediate use
* Supports both 2-pipe and 4-pipe systems
* Easy application adjustment via dedicated DIP switch
* Addressing from 0 to 255 via DIP switch
* Sedona Framework 1.2 support
* Real-time programming capability
* Built-in 18 Inputs/Outputs
* Fast ARM Cortex-M4 processor
* Modbus ASCII/RTU or BACnet MSTP protocols
* 2 x RJ12 ports for connecting Modbus wall panels and external devices
* Built-in 24V AC output for external equipment (230V AC version)
