Fan Speed Controller 8 Amps Soft Start
£145.00 Exc. VAT

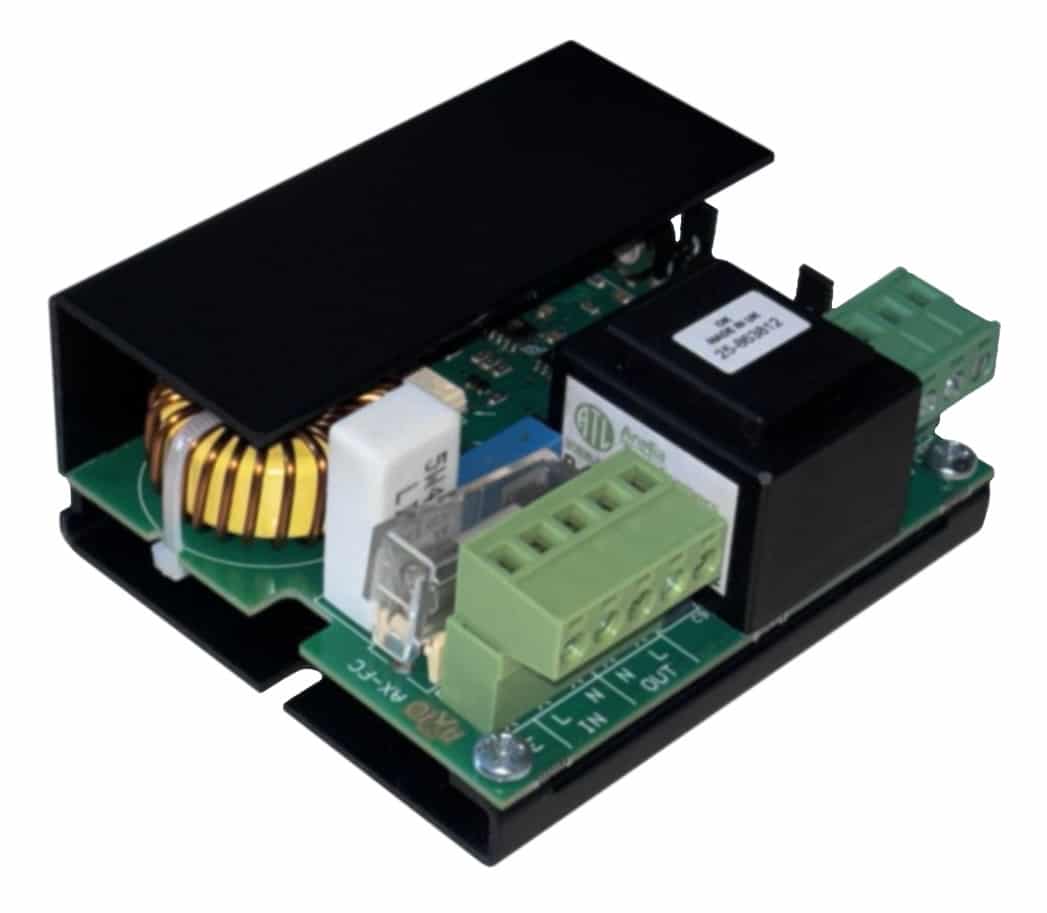

The compact FSC-8 fan speed controller offers stepless speed regulation for single-phase AC motors.
The compact FSC-8 fan speed controller offers stepless speed regulation for single-phase AC motors. The unit provides several voltage and current control input options combined with a fan-off function. The unit is designed for panel mounting.
Specification
Supply Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 210 to 250Vac 50Hz
Control Signal Voltage:Â Â Â Â Â Â Â Â Â Â Â 0-10V or 2-10V
Control Signal Current:Â Â Â Â Â Â Â Â Â Â Â 0-20mA or 4-20mA
0-10V Input Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1mA maximum
Maximum Output Current:Â Â Â Â Â Â Â Â 8 Amps
Start Up:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Soft start
Min. Speed Adjustment:Â Â Â Â Â Â Â Â Â Â 0% to 40%
Max. Speed Adjustment:Â Â Â Â Â Â Â Â Â 60% to 100%
Fuse Size:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -4 4 Amps, -8 8 Amps
Terminals:                      Rising clamp for 0.5-2.5mm² cable
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 83(W) x 37(H) x 74(D)mm,
Weight:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220gms
Ambient Temperature:Â Â Â Â Â Â Â Â Â Â Â Â 0ËšC to 40ËšC
Country of Origin:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â United Kingdom
PDF Datasheet
Additional information
| Weight | 0.30 kg |
|---|---|
| Dimensions | 74 × 83 × 37 cm |
