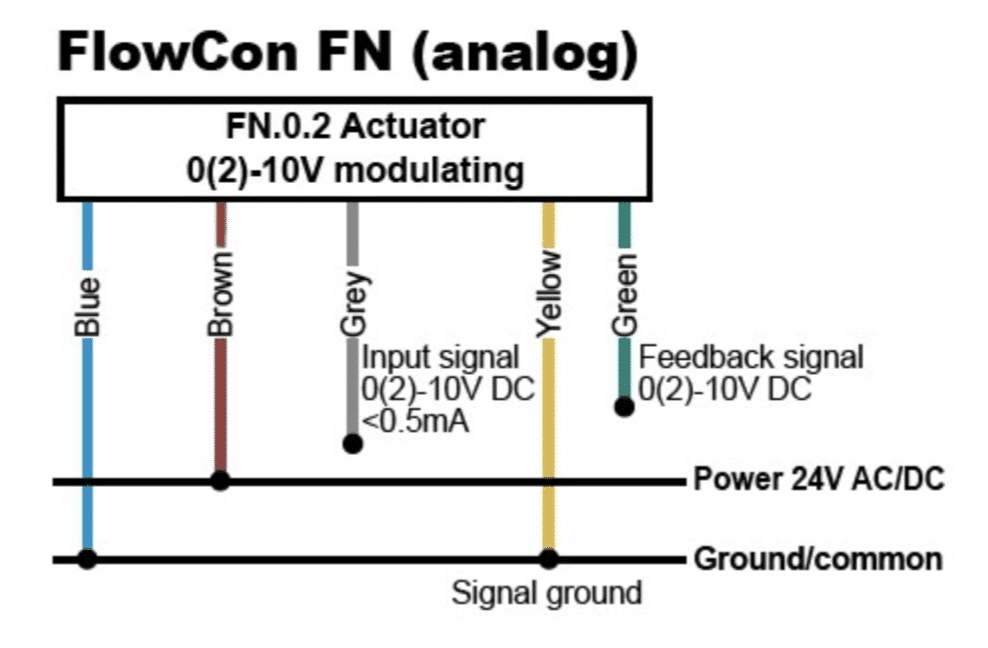

FlowCon Electric Modulating, 0(2)-10V with Feedback Signal

FlowCon FN.0.2 - 24V 0(2)-10V modulating actuator (equivalent to the current FN.0.2 actuator)

FlowCon FN for FlowCon Green

• For FlowCon Green.0, Green.1, Green.1HF, Green.2
• Electrical actuators, 24V
• 0(2)-10V modulating, 3-point floating or 2-position
• Standard with feedback on modulating versions
• Standard with override on modulating versions
• Settable control characteristics (linear control or equal percentage control) on modulating versions
• Settable control direction (NO/NC)
• Optional bus, BACnet or Modbus
• Auto cycle is available on modulating versions
• Position indicator
• IP54, 360°

The Actuator is compatible with the following inserts in the Green

• Green.EQ – 3.4mm stroke – closing time 75 sec
• Green.0 – 3.4 mm stroke – closing time 75 sec
• Green.1 – 3.4 mm stroke – closing time 75 sec
• Green.1HF – 3.4 mm stroke – closing time 75 sec
• Green.2 – 5.2 mm stroke – closing time 114.4 sec

Download the PDF file below

FlowCon-General-Instruction

FlowCon_Actuator_Selection_Matrix

FNP.0.2-FloControl-Addittional-Instructions
