Black Plastic Thimble Temperature
Price range: £12.50 through £22.50 Exc. VAT
Please select resistance type

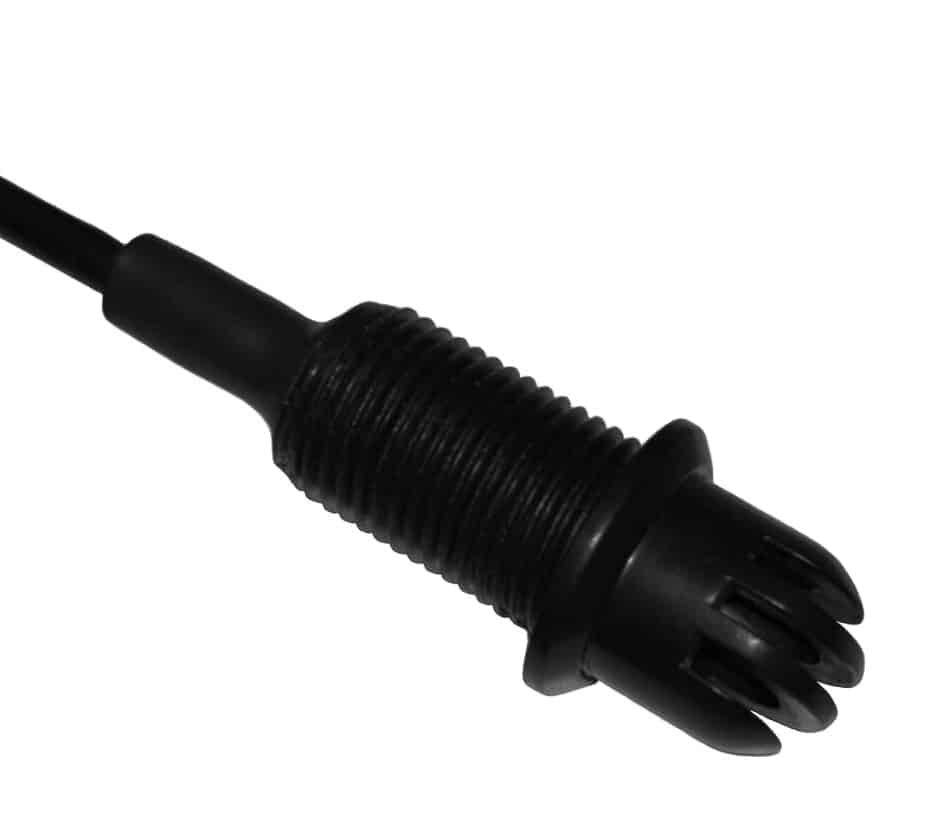

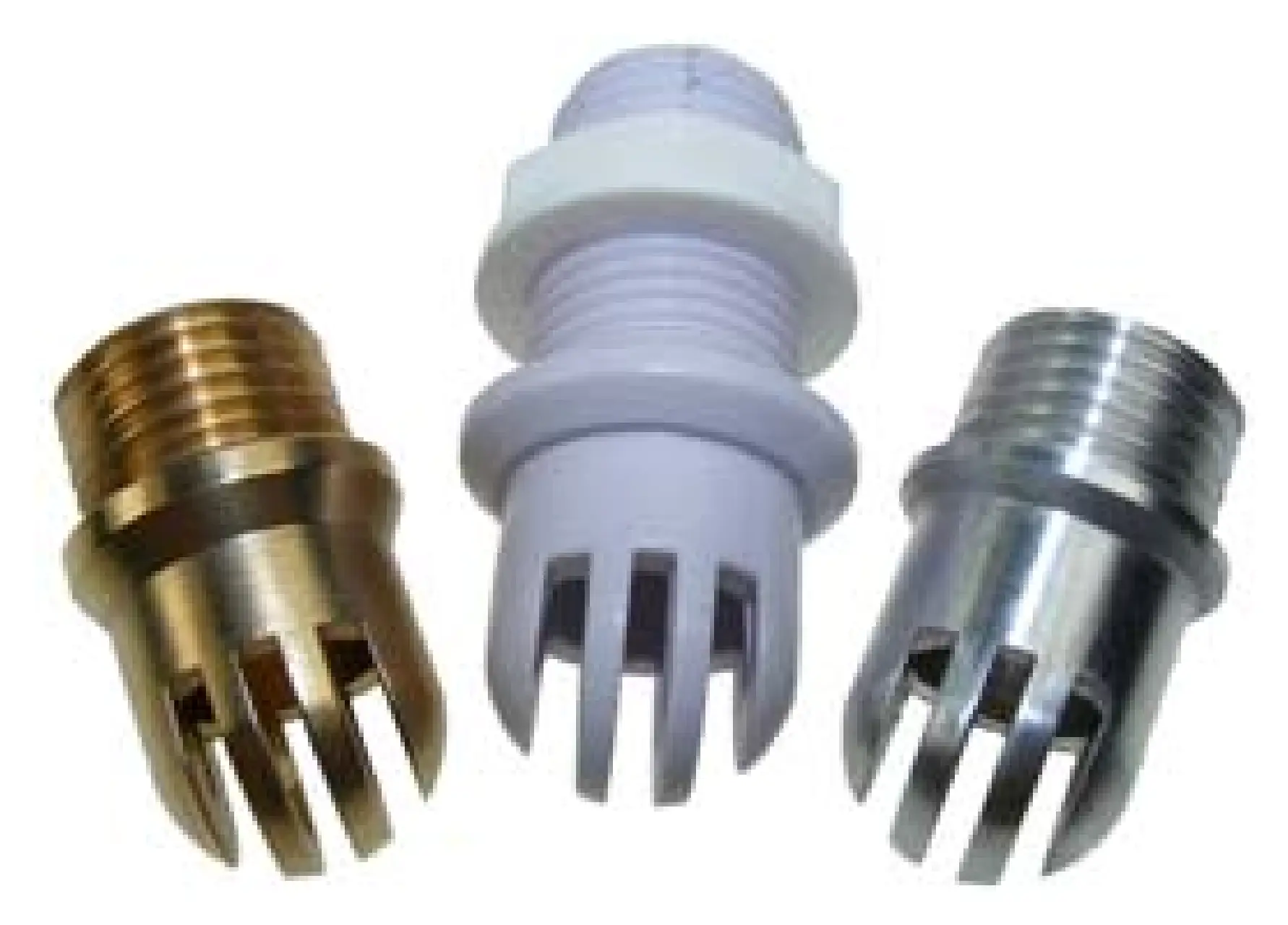

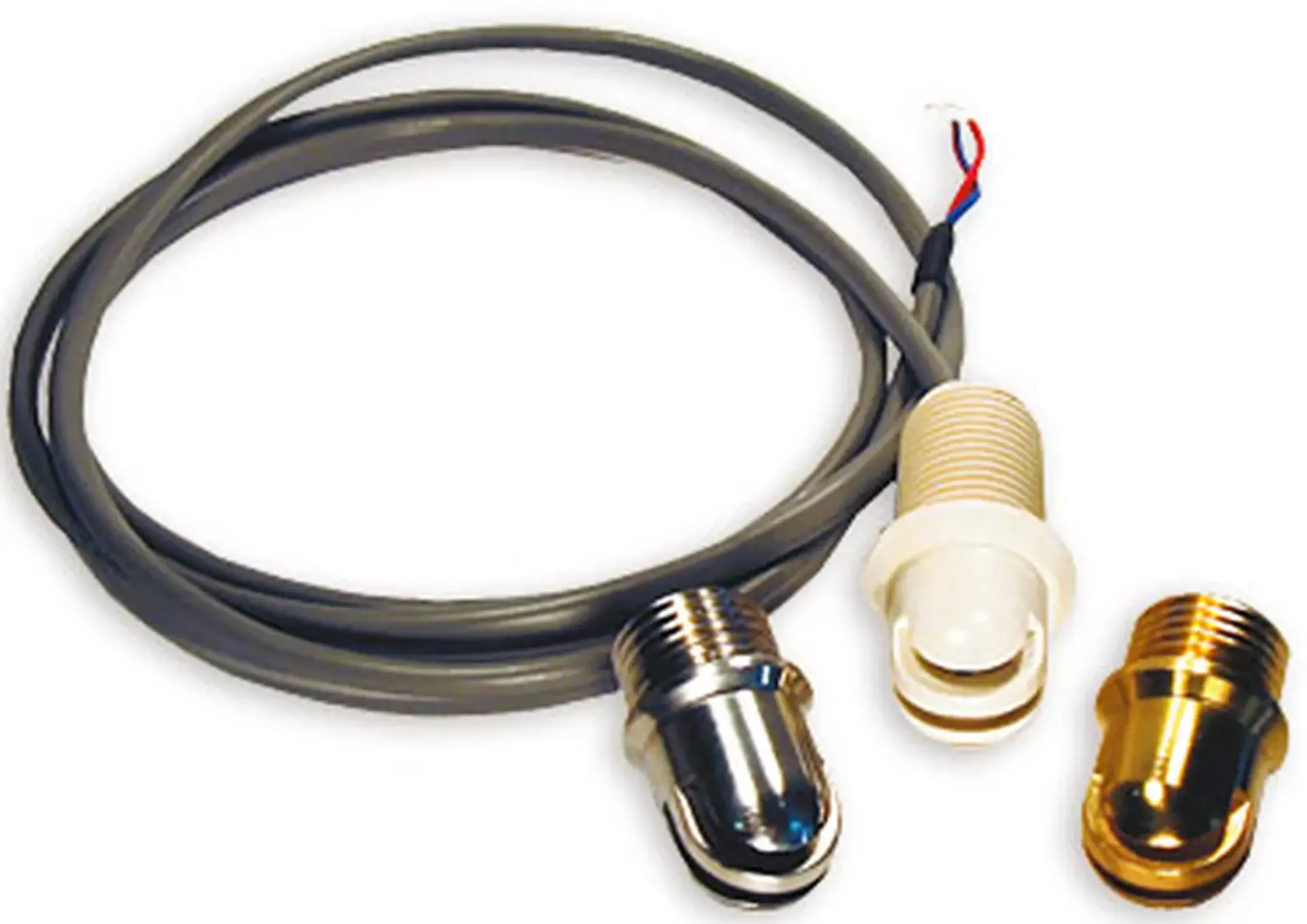

The TE-T range of thimble temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or a platinum element. The sensor is housed in a black plastic thimble-type enclosure with optional white plastic, brass, polished brass or stainless steel versions also available.
Specification
Sensor Type: Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy: ± 0.2°C, 0…70°C
Housing: Black Plastic
Protection: IP30

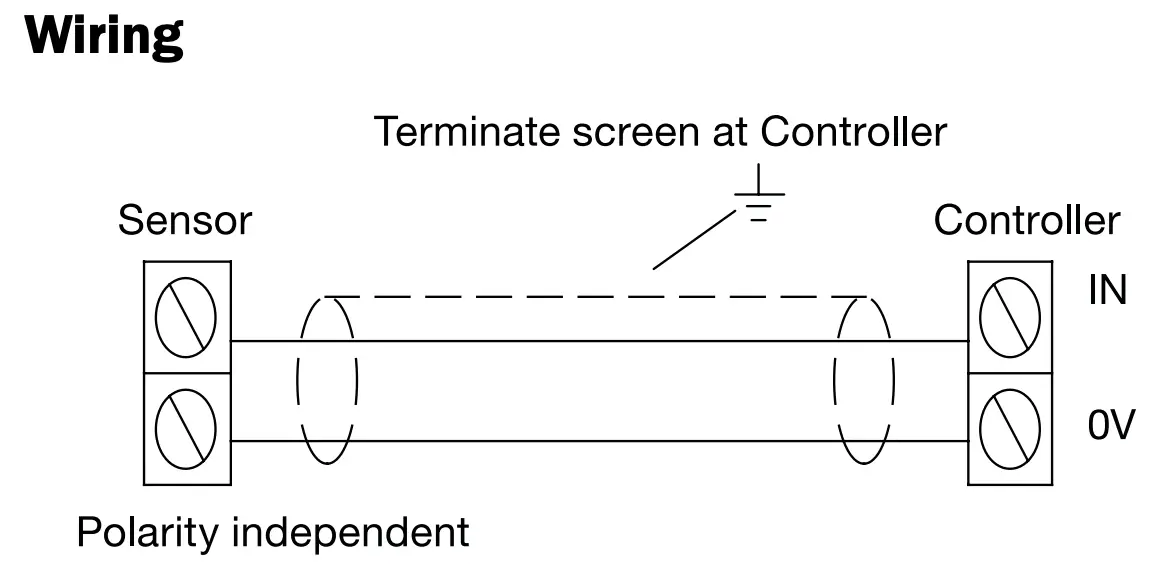

Termination: 2 meters of PVC flying lead
Ambient: 0°C to +50°C, 0-95% RH non-condensing
HVACProducts.co.uk - TE-T-2
Additional information

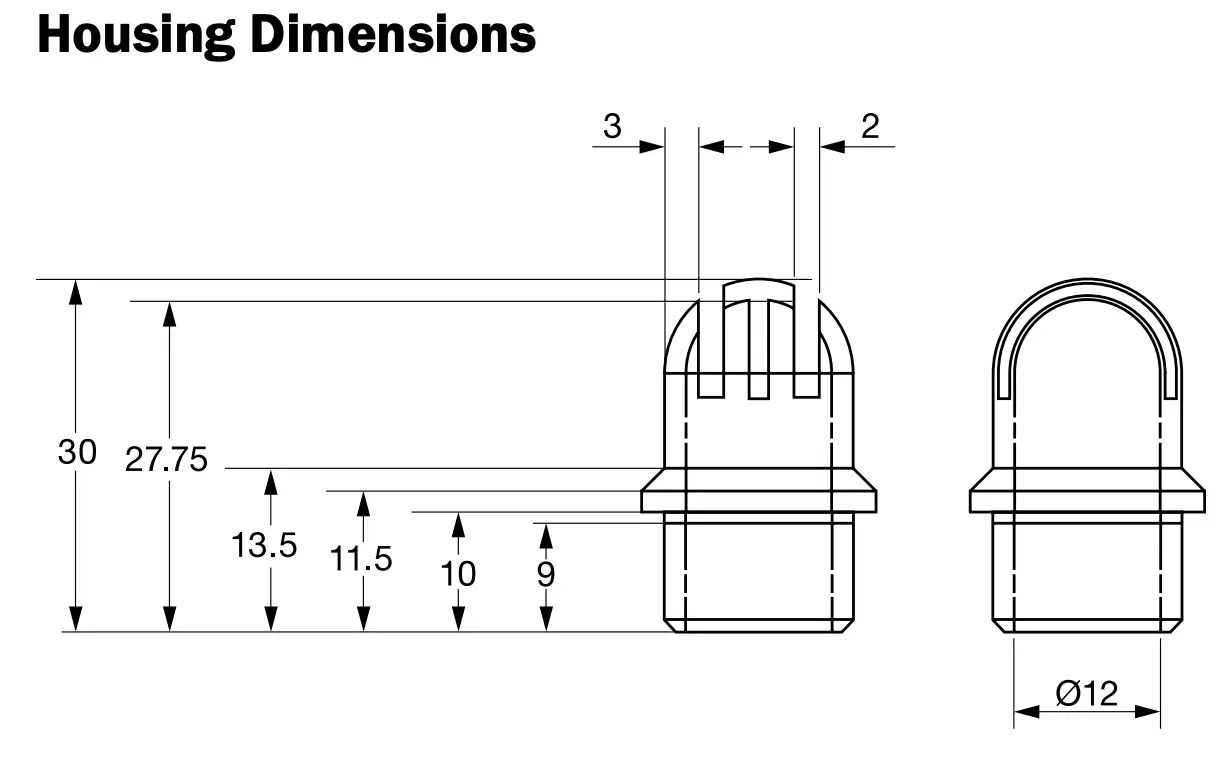

| Dimensions | 8.6 × 8.6 × 1.45 cm |
|---|---|
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
