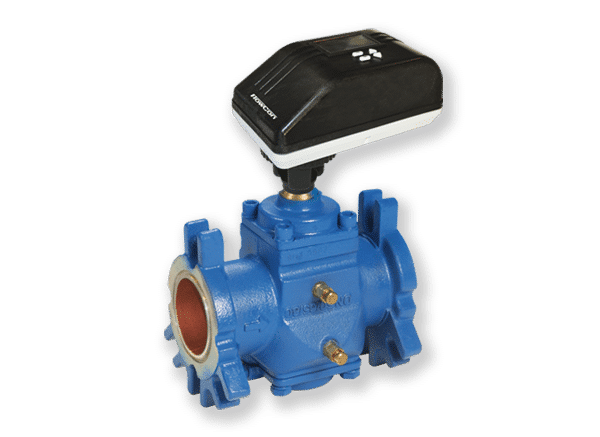

FlowCon PICV SM Valve, kPaD 35-800 – SM.5.2.B.3

• Pressure independent balancing and control valves (PIBCV/PICV)
• Total authority
• State-of-the-art user-friendly SM actuators:

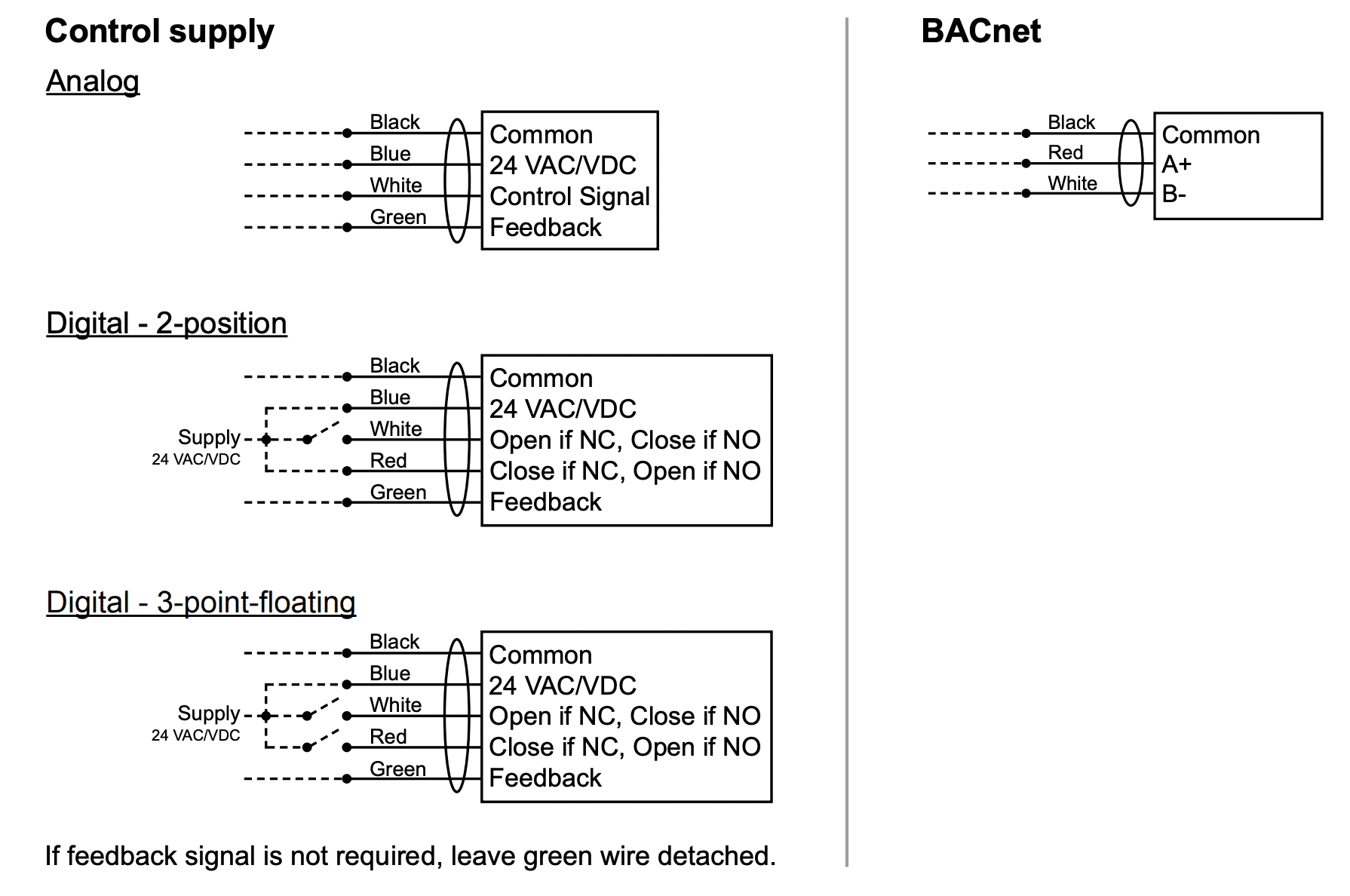

  • Electrical 0(2)-10V or 0(4)-20mA modulating, 3-point floating and 2-position in one and the same actuator, optional failsafe and BACnet/Modbus
  • Display including various actuator information and current flow rate
• Adjustable to a minimum 100 different maximum flow rate limits
• Ductile iron housing
• Standard pressure/temperature plugs
• Universal flange connections
• FlowCon Weather Box available - high protection for the FlowCon SM actuator

Pressure rate
PN40

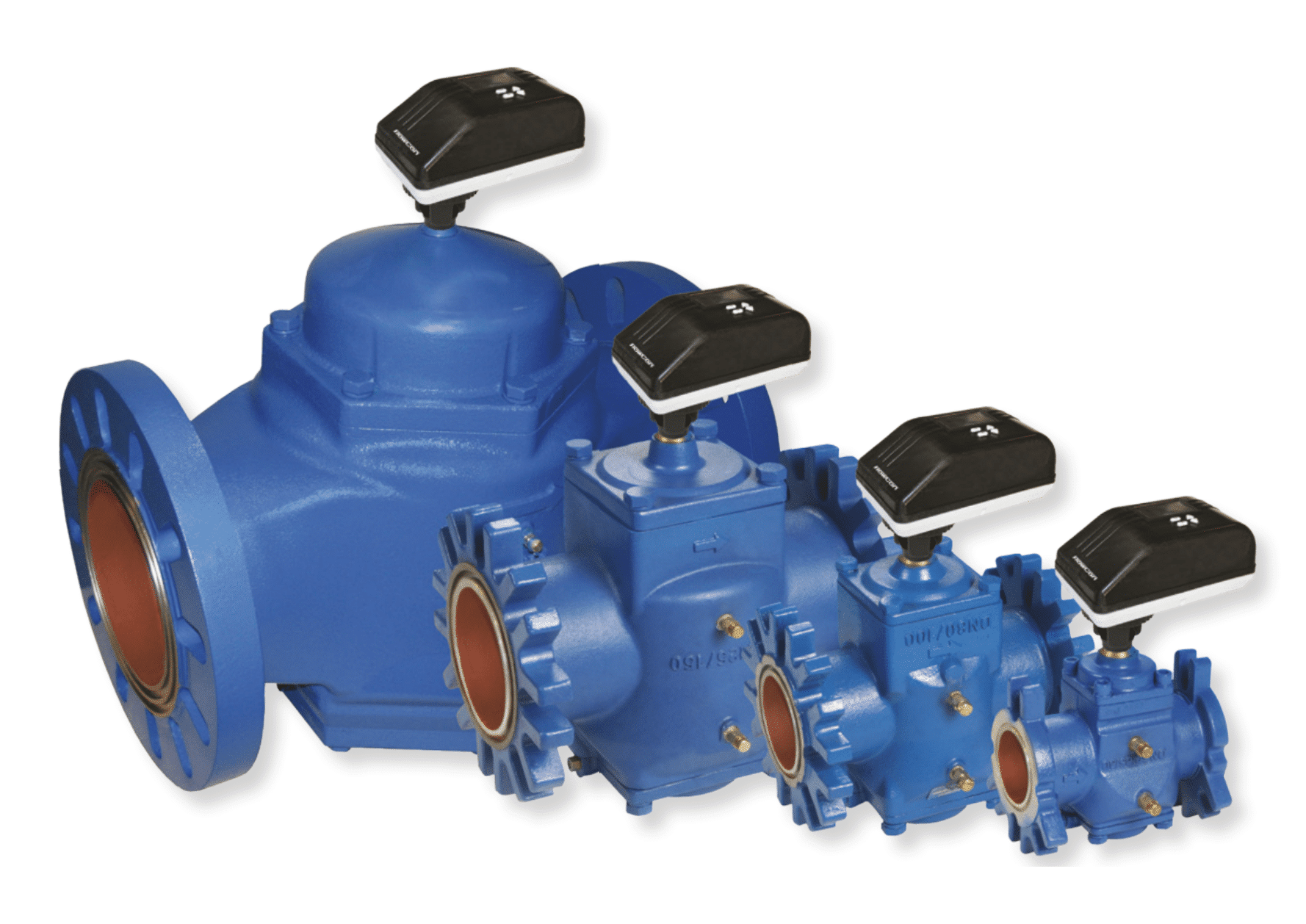

Sizes
DN50-250 (2"-10")

ΔP-range
30-800 kPaD (4.5-116 psid)

Flow rate
0.0416-76.8 l/sec (0.659-1220 GPM)
