Transmitter Range (TR) Flamefast - Image 2

Transmitter Range (TR) Flamefast

£182.00 Exc. VAT

The Transmitter range from Flamefast is one of the most cost-effective air quality transmitters available, capable of monitoring Temperature, Relative Humidity, and either Carbon Dioxide (CO2) or Total Volatile Organic Compounds (TVOC).

SKU: TR Categories: Gas Panels, Gas Sensors Tags: Carbon Dioxide, co2, flamefast, gas, gas panel, TVOC

Description
Additional information

Top Key Features

24V AC/DC Power Supply

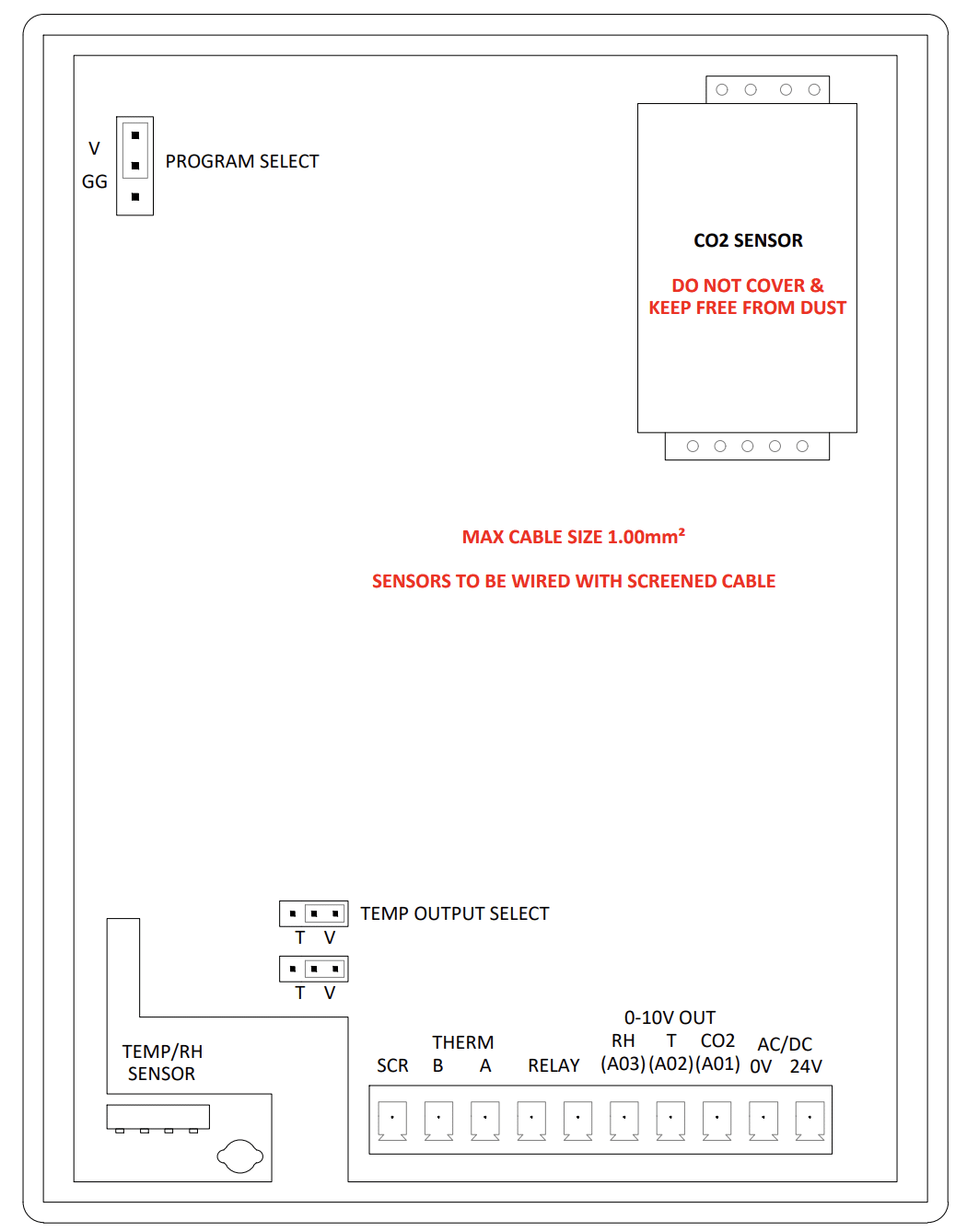

Plug-in terminal block for ease of installation
Optional multi-colour display
3x 0-10V outputs
UK Manufactured

Overview

With a wide range of outputs, including three 0-10V outputs, an on-board relay, and the ability to select between Analogue and Direct Thermistor temperature outputs, this versatile unit is suitable for most general HVAC applications.

With the optional signature Flamefast multi-colour display, the sensor can provide a clear, bold indication of the air quality in the monitored space.

Key Features

24V AC/DC Power Supply
Plug-in terminal block for ease of installation
Optional multi-colour display
3x 0-10V outputs
Selectable Temperature output (0-10V or 10K3)
Volt-free contact output
Typical 10+ year life expectancy
Mounts onto any standard single-gang junction box or conduit box
UK MANUFACTURED

Dimensions

Height:	125 mm
Width:	86 mm
Depth:	36 mm

Technical Specifications

Power Supply:

24V AC/DC ±10%

Power Consumption:

50mA Max

Power Output:

3x 0-10V

Thermister Outputs:

10K3A1

VFC Output:

SPST - 100mA @ 24V Max

CO2 Range:

0 - 10,000 ppm

CO2 Output Scale:

0 ~ 2,000 / 5,000ppm

CO2 Accuracy:

±40 ppm +3% @ NTP

CO2 Display Resolution:

1ppm

CO2 Sensing Method:

Non Dispersive Infra-red (NDIR)

CO2 Sensor Life:

10+ Years

TVOC Range:

0 ~ 100% VOC Index

TVOC Output Scale:

0 ~ 100%

TVOC Accuracy:

±5% @ NTP

TVOC Display Resolution:

TVOC Sensing Method:

Metal-oxide (MOx)

TVOC Sensor Life:

10+ Years

Temp Range:

0 - 50°C

Temp Accuracy:

±0.3°C @ 25°C

Temp Display Resolution:

0.1°C

RH Range:

0 - 100%

RH Accuracy:

±2% @20 ~ 80%

RH Display Resolution:

0.1%

Operation Conditions:

Temp	0 ~ 50°C
Humidity	0 ~ 95% (NC)

Sampling Method:

Diffusion

Warm-up Time:

30 seconds

IP Rating:

IP40

Colour:

Pure White (RAL9010)

Approval:

CE, UKCA

Installer Selectable Options

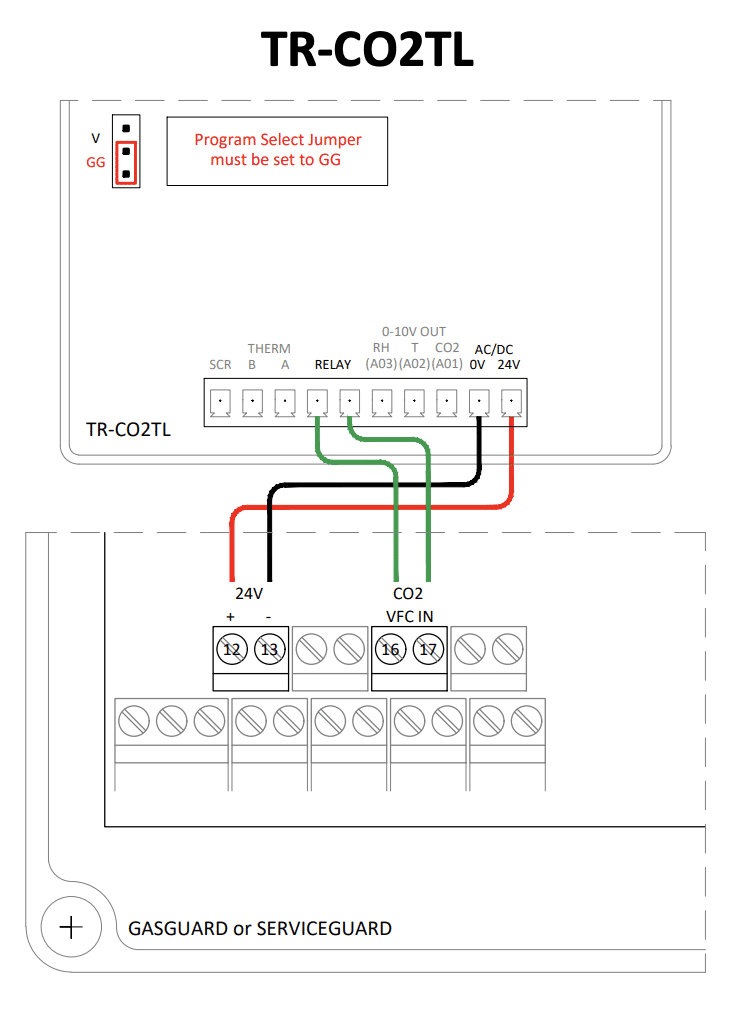

The unit has two user-selectable programmes to control the traffic light and voltage-free contact set point depending on the application.
These are as follows:

Programme	Ventilation	Gas Safety
Green - Yellow	800ppm / 40%	800ppm / 40%
Yellow - Amber	1000ppm / 60%	1500ppm / 60%
Amber - Red	1500ppm / 80%	2800ppm / 80%
Relay Position	Normally Open	Normally Closed
Relay Set Point	800ppm / 40%	4500 ppm

Part Numbers & Options / Accessories

PART NO	DESCRIPTION
TR-CO2T	Transmitter - CO2 & Temp
TR-CO2TL	Transmitter - CO2 & Temp c/w LCD
TR-CO2TH	Transmitter - CO2, Temp & RH
TR-CO2THL	Transmitter - CO2, Temp & RH c/w LCD
TR-AQT	Transmitter - TVOC & Temp
TR-AQTL	Transmitter - TVOC & Temp c/w LCD
TR-AQTH	Transmitter - TVOC, Temp & RH
TR-AQTHL	Transmitter - TVOC, Temp & RH c/w LCD
TR-TH	Transmitter - Temp & RH
TR-THL	Transmitter - Temp & RH c/w LCD
TR-T	Transmitter - Temp
TR-TL	Transmitter - Temp c/w LCD

HVACProducts.co.uk

Data Sheets

General specifications in .pdf format TR_DS_0223

Operation Manuals

Installation and Operation instructions in .pdf format TR_OM_0224

Additional information

Weight	0.2 kg
Dimensions	12.5 × 8.6 × 3.6 cm
