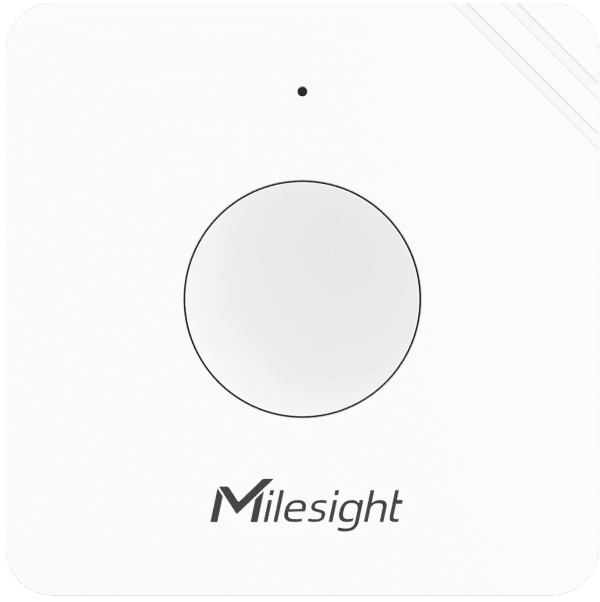

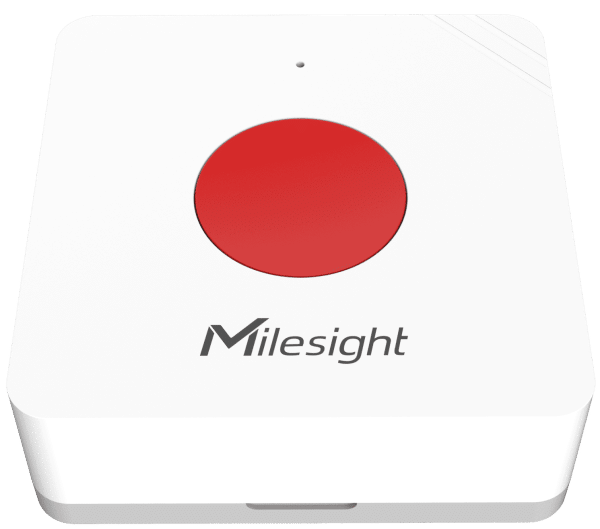

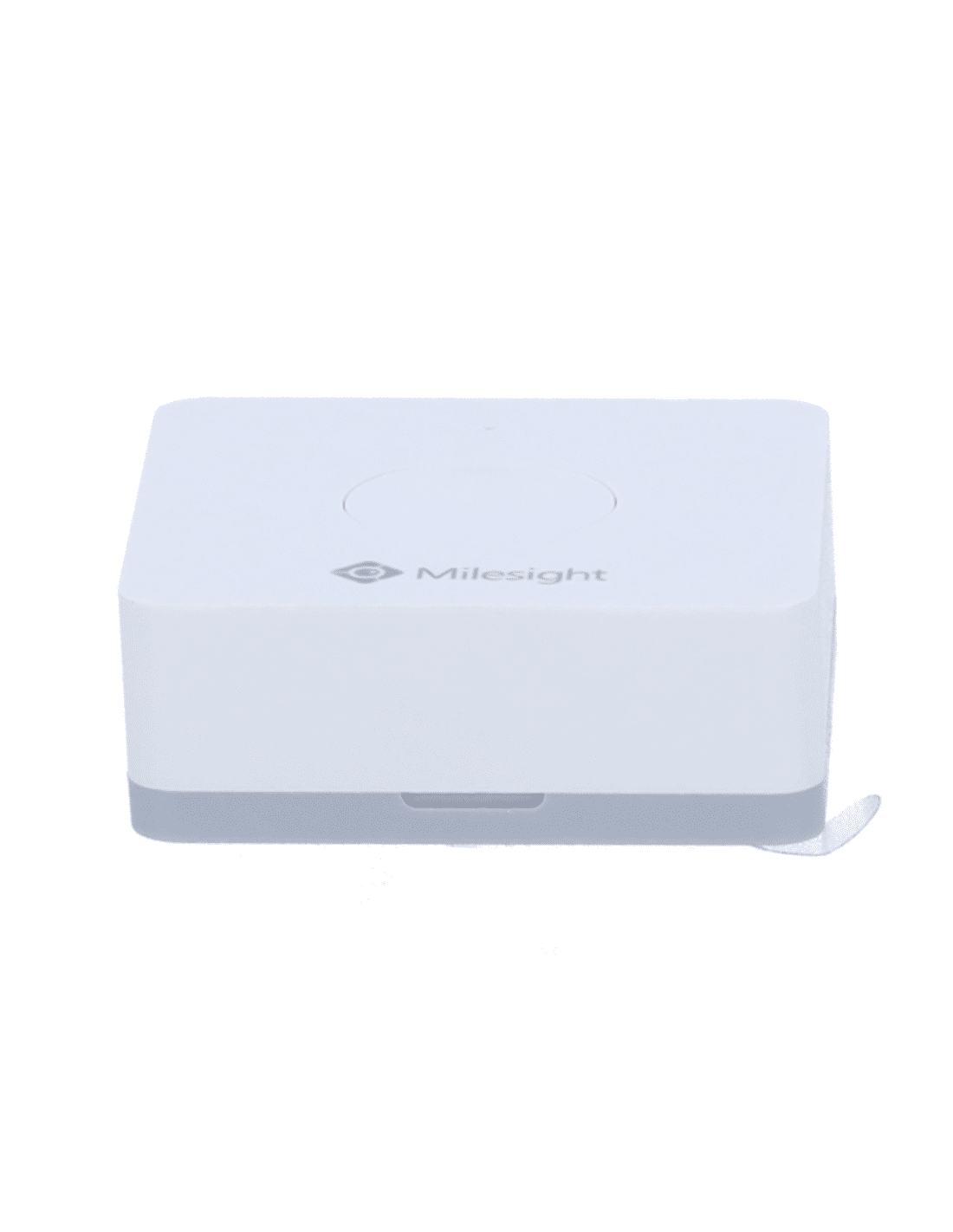

WS101-868M-SCN – LoRaWAN Smart Button

Milesight WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms. WS101 supports multiple press actions, all of which can be defined by the user to control devices or trigger scenes. Compact and battery-powered, WS101 is easy to install and carry everywhere. Compliant with Milesight LoRaWAN® gateways, users can know the alarms and use the WS101 to easily trigger other sensors or appliances remotely via web or mobile Apps. WS101 can be widely used in smart homes, smart offices, hotels, schools, etc.

Features

• Support multiple press actions to control devices, trigger a scene or send emergency alarms
• Easy to install or carry with the convenient size
• Built-in LED indicator and buzzer for press actions, network status, and low battery indication
• Ultra-wide-distance wireless transmission: 15 km in line-of-sight scene
• Equipped with NFC for one-touch configuration and supports card emulation mode. Supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control without a gateway
• Functions well with standard LoRaWAN® gateways and network servers

Interface

• Button: 1 * External Button (Scene) + 1 * Reset Button (Internal)
• Buzzer: Support
