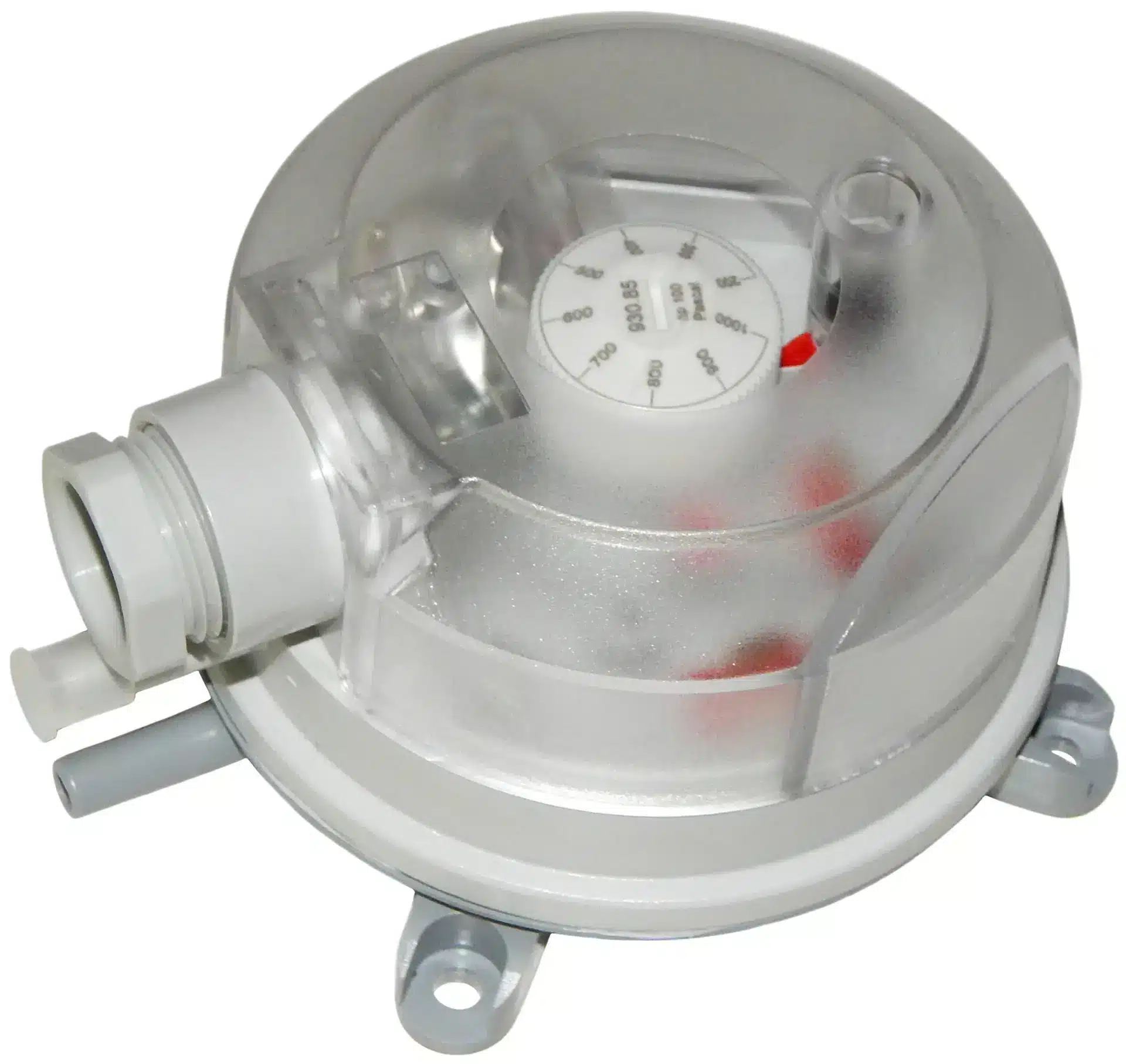

Air Differential Pressure Switch

The 930 range of air differential pressure switches is suitable for low-differential-switching applications and is ideal for indicating fan status or ‘filter dirty’ conditions.

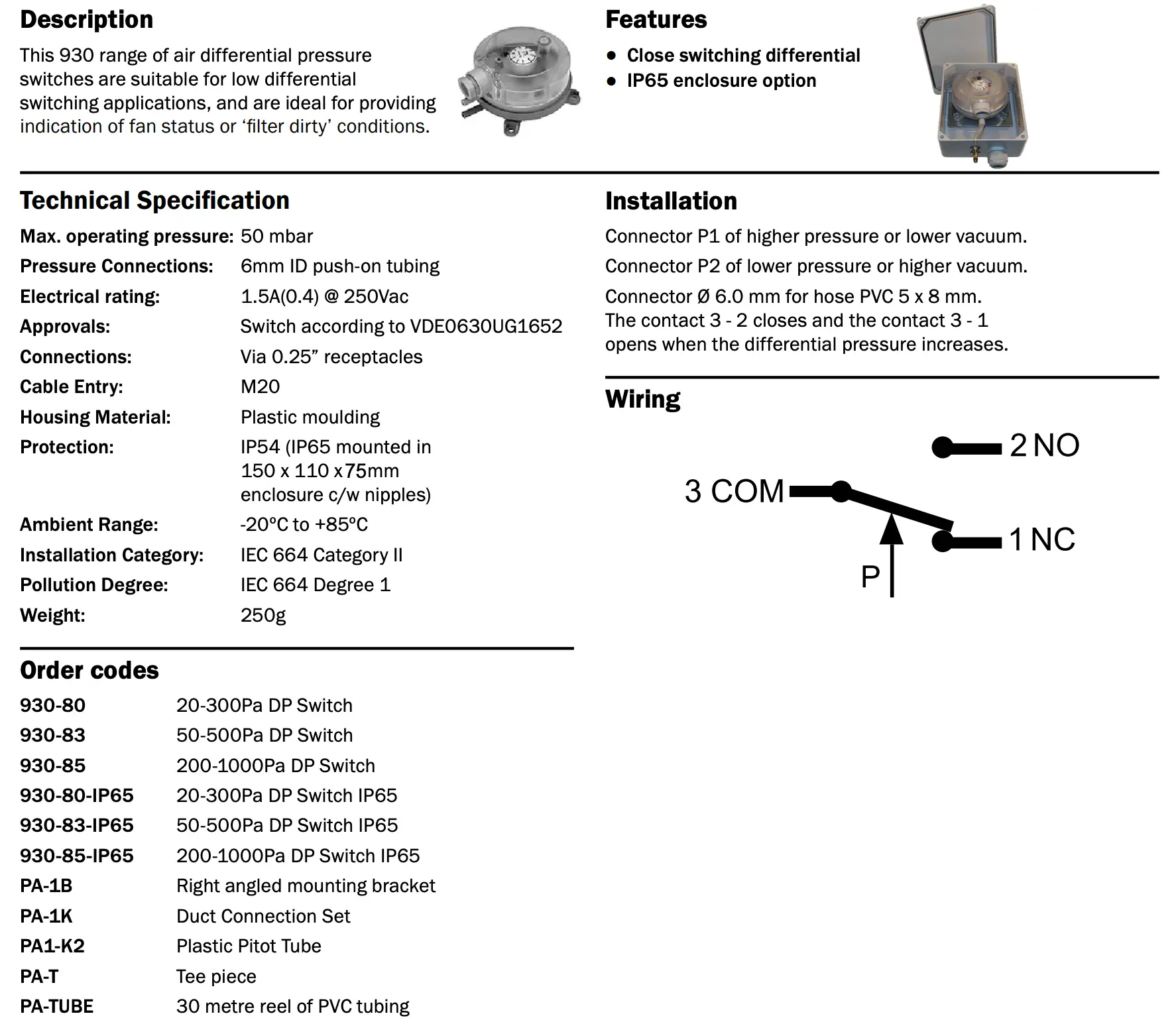

Specification

Max. Operating Pressure:         50 mbar
Pressure Connections:                6mm ID push-on tubing
Electrical Rating:                             1.5A (0.4) @ 250Vac
Approvals:                                            Switch according to VDE0630UG1652
Connections:                                       Via 0.25” receptacles
Cable Entry:                                         M20
Housing Material:                            Plastic moulding
Protection:                                            IP54
Ambient Range:                                -20ºC to +85ºC
Installation Category:                    IEC 664 Category II
Pollution Degree:                              IEC 664 Degree 1

Replace your old pressure sensor and Pitots.

Replace your old weathered sensor https://hvacproducts.co.uk

Datasheet
930
