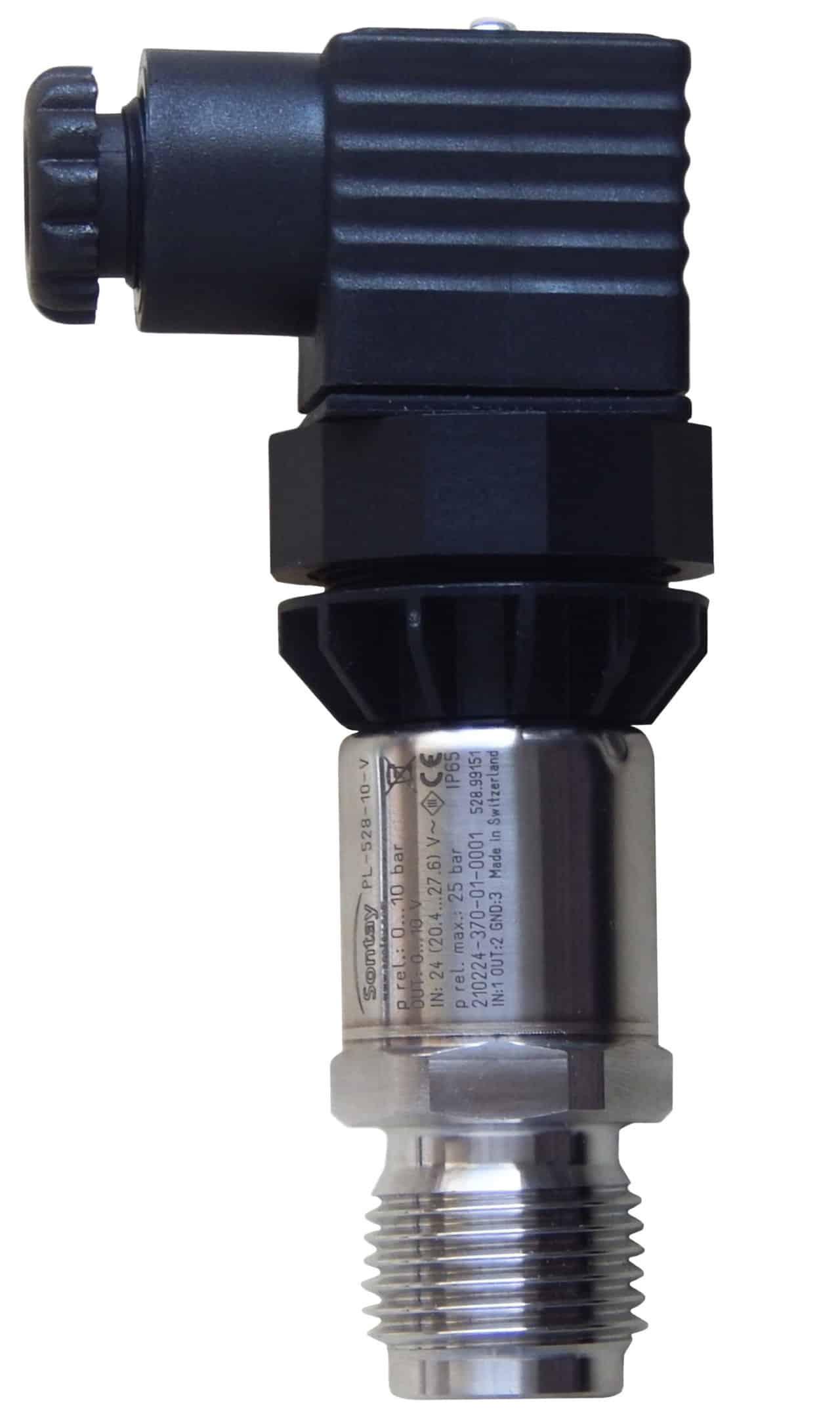

Liquid Static Pressure Sensor 0-10Vdc 0-16 bar

The PL-520 pressure sensor uses thick-film technology, where the pressure cell is fully welded. This then meets high burst protection requirements and is suitable for a wide range of media.

Features:

• Suitable for water, steam (with PL-HS) or air
• Compact rugged construction
• Welded without sealing parts
• Very high measurement accuracy
• Excellent thermal characteristic

Specification

Output:                                            0-10Vdc
Supply Voltage:                           12-33Vdc or 24Vac ± 15%
Pressure Range:                          0 to 16 bar
Current Consumption:           <7mA
Temperature…
Media:                                               -40 to 135˚C
Ambient:                                         -30 to 85˚C
Storage:                                           -50 to +100°C
Dimensions:                                   88 x 36mm
Pressure connection:               ½” BSP male
Protection:                                      IP65

PL-520-BW
