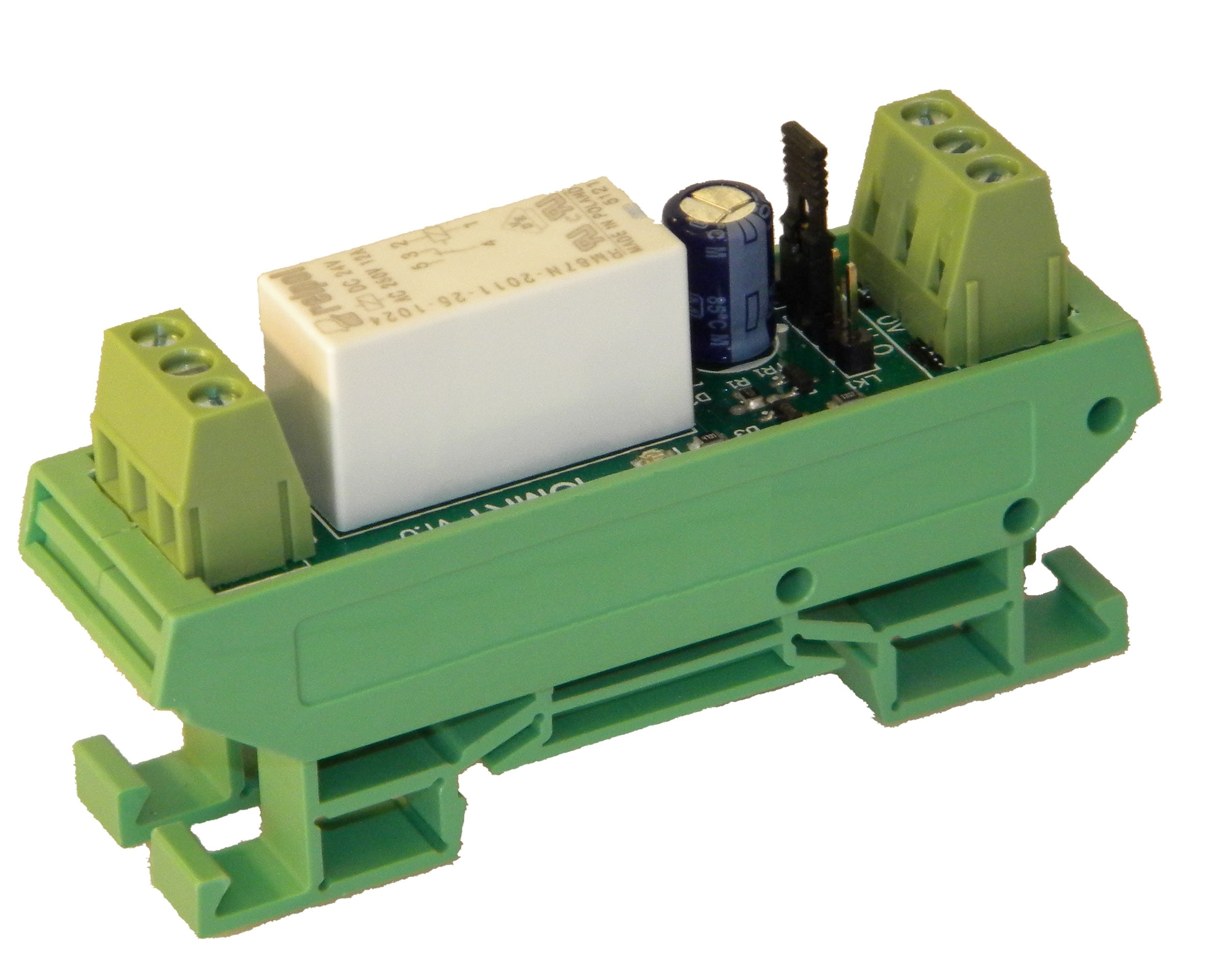

Single Channel Override Relay Module – IOMR1
£13.50 Exc. VAT
The IOMR1 is designed to provide a manual override of the output from a BMS Controller (or similar) and is particularly useful for commissioning or temporary control applications.
Description
The IOMR1 is designed to provide a manual override of the output from a BMS Controller (or similar) and is particularly useful for commissioning or temporary control applications.
The IOMR1 can also be used as an alternative to the IO-RM1-12DC relay module, with the added advantages of ON/OFF/AUTO links.
The unit has a fixed switchpoint at 6V.
Specification
Supply Voltage:Â Â Â Â Â Â Â Â Â 24V ac or dc
Input Signal:Â Â Â Â Â Â Â Â Â Â Â Â Â 0/10Vdc
Switchpoint:Â Â Â Â Â Â Â Â Â Â Â Â 6Vdc
Output Contacts:Â Â Â Â Â Â Â Â 1 x SPCO
Rating:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 12A @ 230Vac
LED Indication:Â Â Â Â Â Â Â Â Â ON when relay is energised
Ambient:               0°C to 40°C/5-90% RH
Storage:                 0/+50°C
Terminals:               Rising clamp 0.5-2.5mm² cable.
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â 76 x 23 x 45mm approx.
Country of Origin:Â Â Â Â Â Â Â United Kingdom
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
