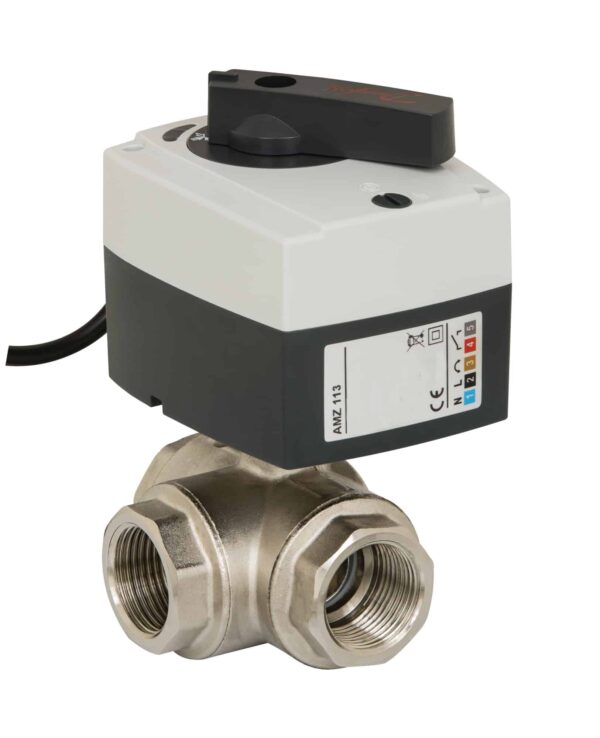

AMZ 113, 4.3 m³/h, Rp 1/2 - AMZ 113 ON/OFF 3-w int th 24V DN15
| Gross weight |
1.227 Kilogram |
| Net weight |
1.16 Kilogram |
| Volume |
3.95 Liter |
| EAN |
5710104079943 |
| Type |
AMZ 113 |
| Product group |
Motorised control valves |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| China RoHS compliance |
Out of scope |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 1/2 |
| Connection types |
Internal thread |
| Contains batteries |
No |
| Description |
AMZ 113 ON/OFF 3-w int th 24V DN15 |
| Diameter [mm] |
15 mm |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Kvs values [m³/h] |
4.3 m³/h |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Circulation water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
3 |
| Operating torque [Nm] |
5 N-m |
| Permissible media |
District heating/cooling circulation water |
| Pressure nominal [bar] |
40 bar |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
9fa32728-1915-421d-86bc-7b5cdc83b5fe |
| SCIP dossier product name |
082G5412 |
| Spindle position |
None |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve size |
DN 15 |
| Valve stem material |
CW 614 N UNI EN 12164 |
