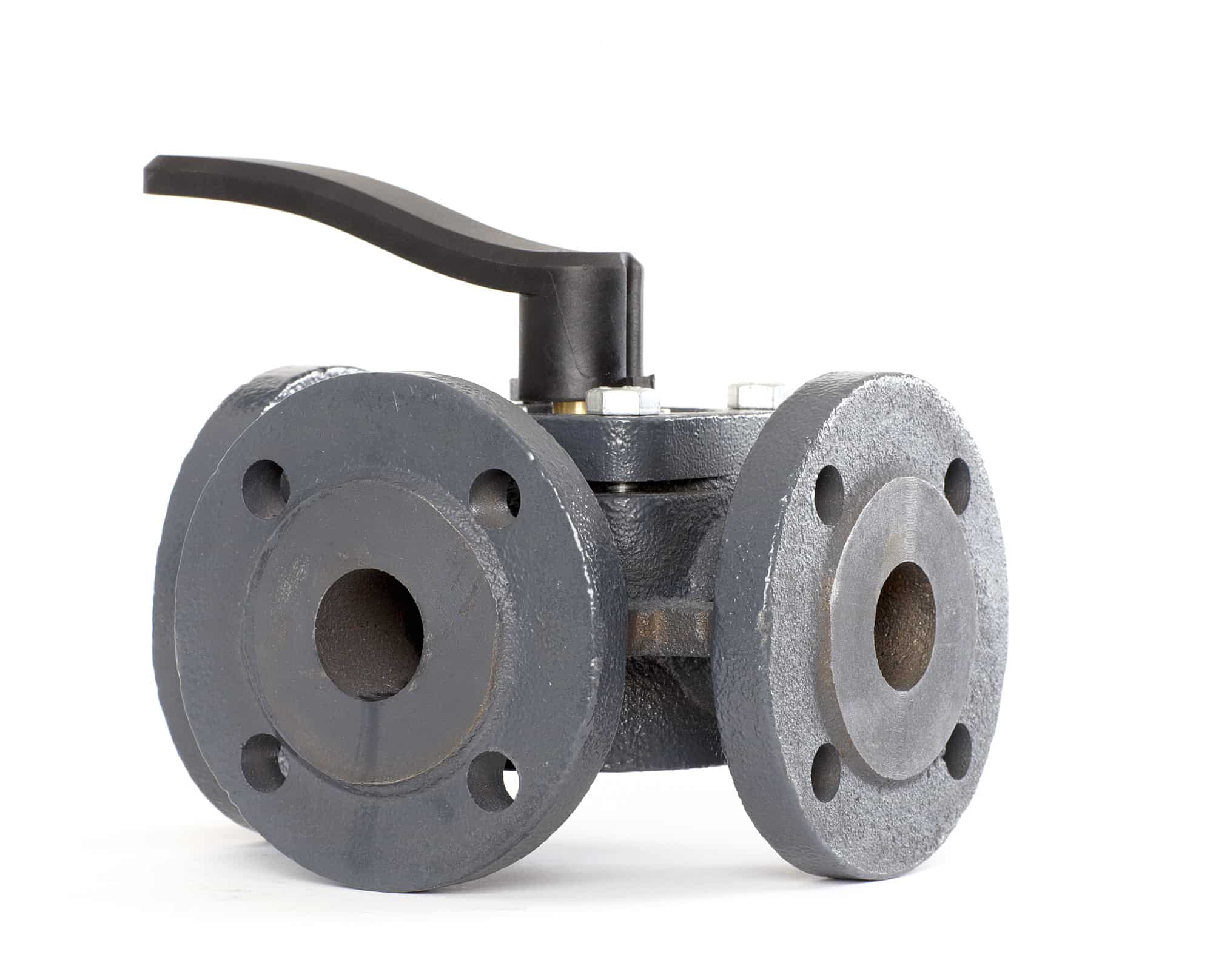

HFE3 65/90 – 65mm 3P Rotary Shoe Valve, Kv 90

Name: HFE3 65/90 - 65mm 3P Rotary Shoe Valve, Kv 90
SKU: 065Z0433
Availability: InStock

£319.00 Exc. VAT

HFE 3 PN6 65/90 rotary 3-way Flange

HFE 3 PN6 65/90 rotary 3-way Flange

Application	Heating
Application alternative VSP	District heating
China RoHS compliance	Out of scope
Closing differential pressure (diverting) [bar] [Max]	0.5 bar
Closing differential pressure (mixing) [bar] [Max]	0.5 bar
Connection size	PN 6
Connection types	Flange
Contains batteries	No
Description	HFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm]	65 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	S characteristic
Function	Pressure relief
Kvs values [m³/h]	90 m³/h
Leakage through port max. [% Kvs]	Diverting: 0.5 Mixing: 1.0
Media pH [Max]	10

Media pH [Min]	7
Media temperature [°C] [Max]	110 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 50%
Mounting version	Flow
Number of ports	3
Operating torque [Nm]	10 N-m
Permissible media	District heating/cooling circulation water
Pressure nominal [bar]	6 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	b522cde8-91be-41f7-a332-895ff80167a5
SCIP dossier product name	HRB HRE HFE
Slide shoe material	DZR brass CuZn36Pb2AS (CW 602N)
Spindle material	Stainless steel
Stuffing box sealing material	EPDM
Valve body material	Grey cast iron EN-GJL-250 (GG-25)
Valve cone material	DZR brass CuZn36Pb2AS (CW 602N)

Additional information

Weight	21 kg
