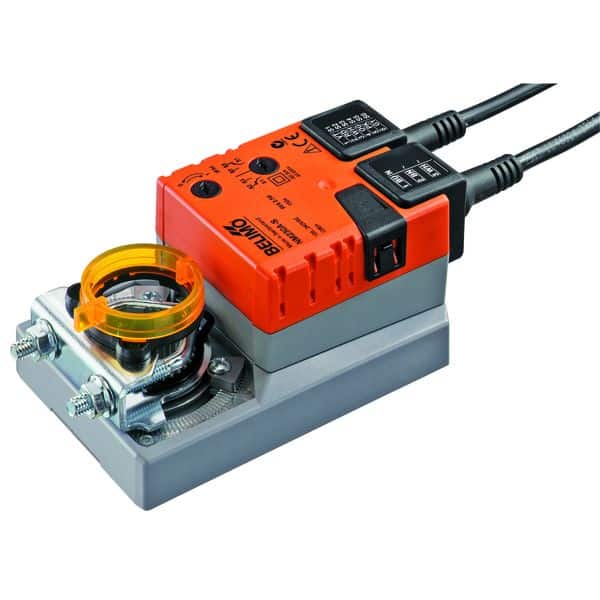

10Nm Actuator 230Vac/dc Open/Close with Aux Switch NM230A-S

£148.00 Exc. VAT

Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations with auxiliary switch

Description

Description

Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations with auxiliary switch

Specification

Nominal Voltage:                            AC 100…240V, 50/60Hz
Nominal Voltage Frequency:         50/60Hz
Nominal Voltage Range:                AC 85… 265V

Power Consumption
In operation:                                        2.5W @ nominal torque
At rest:                                                     0.6W
For wire sizing:                                    5.5VA
Auxiliary Switch:                                                                1 x SPDT, 0…100%
Switching Capacity Auxiliary Switch:                   1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control:                                       Cable 1m, 3 x 0.75mm²
Connection Auxiliary Switch:                                     Cable 1m, 3 x 0.75mm²
Parallel Operation:                                                             Yes

NM230A-S_datasheet_en-gb

Additional information

Weight 0.80 kg
