Description
Description

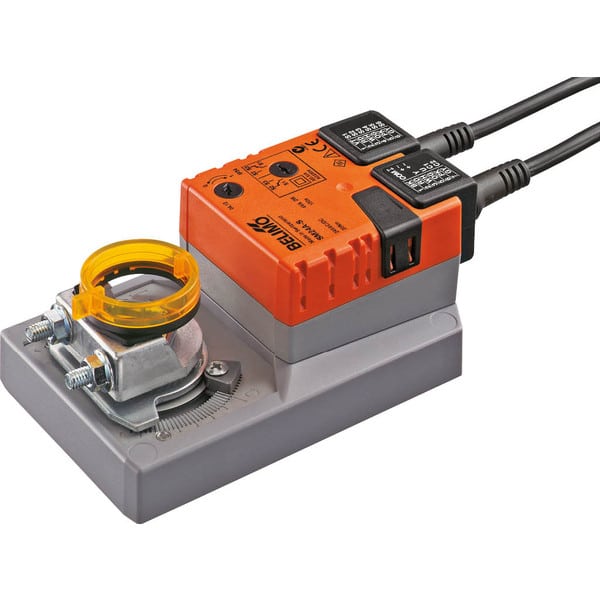

Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC 24V, 50/60Hz / DC 24V
Nominal Voltage Range:                       AC/DC 19.2…28.8V
Power Consumption…
In operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1.5W @ nominal torque
At rest:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.2W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3.5VA
Connection:                                      Cable 1m, 3 x 0.75mm²
