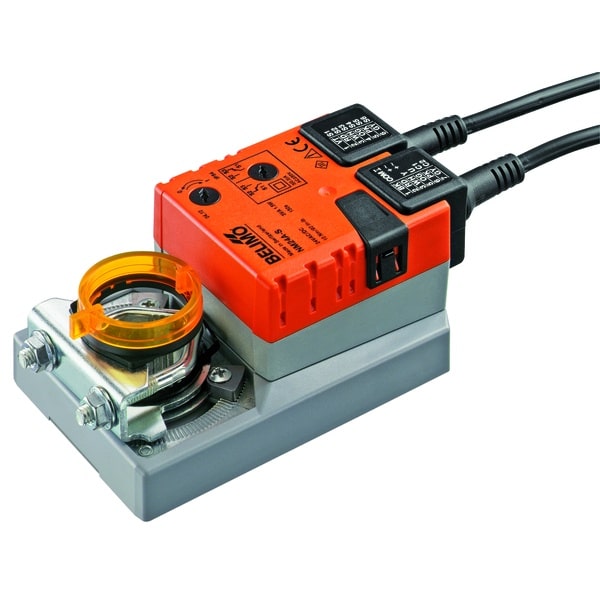

10Nm Actuator 24Vac/dc Open/Close with Aux switch NM24A-S

£144.00 Exc. VAT

Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations.

Description

Description

Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations with Auxilliary switch.

Specification

Nominal Voltage:                                                             AC/DC 24V
Nominal Voltage Frequency:                                    50/60Hz
Nominal Voltage Range:                                              AC 19.2…28.8V / DC 19.2…28.8V

Power Consumption…
In operation:                                                                         1.5W
At rest:                                                                                      0.2W
For wire sizing:                                                                     3.5VA
Auxiliary Switch:                                                                 1 x SPDT, 0…100%
Switching Capacity Auxiliary Switch:                    1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control:                                        Cable 1m, 3 x 0.75mm²
Connection Auxiliary Switch:                                      Cable 1m, 3 x 0.75mm²
Parallel Operation:                                                               Yes

NM24A-S_datasheet_en-gb

Additional information

Weight 0.9 kg
