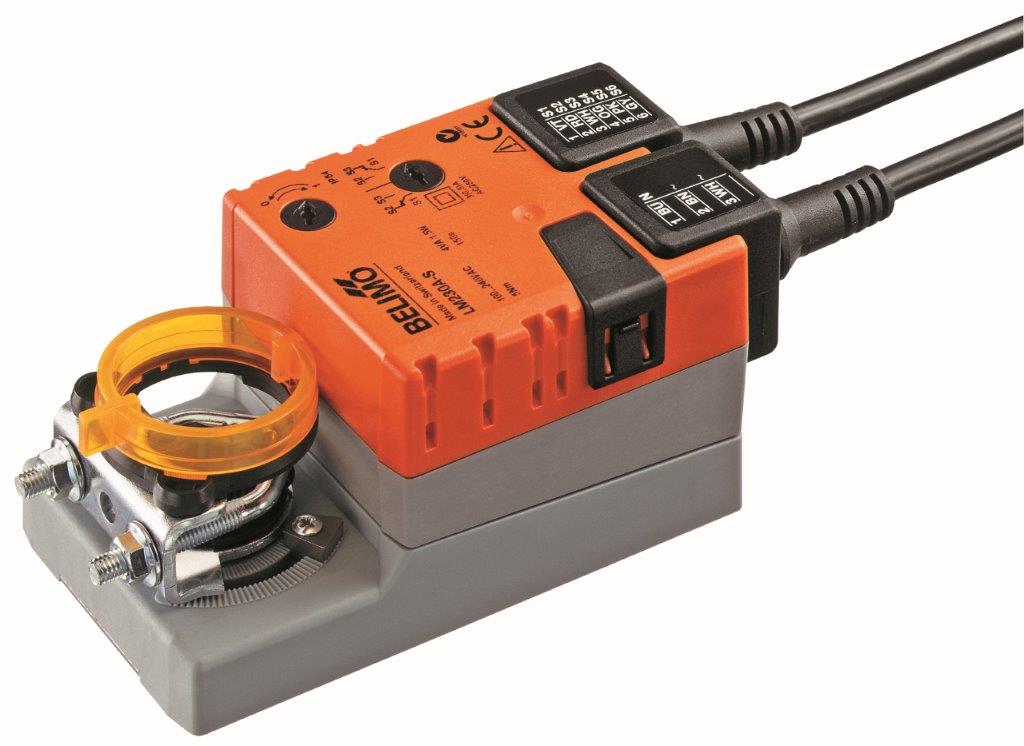

5Nm Damper Actuator 230Vac/dc Open/Close with Auxiliary Switch LM230A-S

£111.00 Exc. VAT

Damper actuator for operating air control dampers in ventilation and air-conditioning systems for building services installations.

Description

Description

Damper actuator for operating air control dampers in ventilation and air-conditioning systems for building services installations.

Specification

Nominal Voltage:                                                             AC 230V
Nominal Voltage Frequency:                                    50/60Hz
Nominal Voltage Range:                                              AC 85…264V

Power Consumption…

In operation:                                                                         1.5W
At rest:                                                                                      0.5W
For wire sizing:                                                                     3.5VA
Auxiliary Switch:                                                                 1 x SPDT, 0…100%
Switching Capacity Auxiliary Switch:                    1mA…3 (0.5 inductive) A, AC  250V
Connection Supply/Control:                                         Cable 1m, 3 x 0.75mm²
Connection Auxiliary Switch:                                       Cable 1m, 3 x 0.75mm²
Parallel Operation:                                                                Yes

LM230A-S_datasheet_en-gb

Additional information

Weight 0.5 kg
