Solid Core and Split Core Current Sensors, 0-10, 0-20, 0-50, 0–100, 0-150, 0-200 A, output 0-10VDC or 4-20-mA
£21.20 – £53.00 Exc. VAT

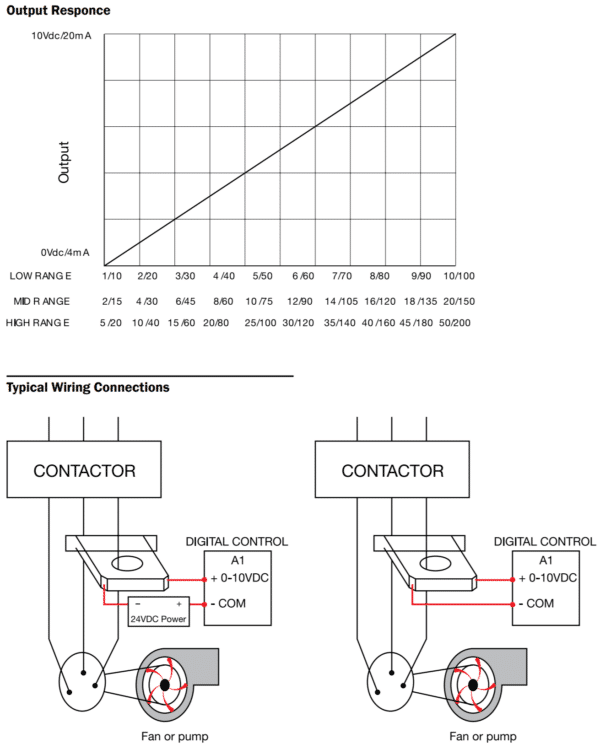

The CS series current sensors monitor the current flowing to electrical equipment or buildings. The magnitude of this current is then converted into a linear 4-20mA or 0 to 10 VDC output signal, which can be monitored by a Building Management System.
Description
The CS series current sensors monitor the current flowing to electrical equipment or buildings.
The magnitude of this current is then converted into a linear 4-20mA or 0 to 10 VDC output signal, which can be monitored by a Building Management System.
The units have jumper selectable input ranges.
These current sensors should be used in load trending (current monitoring) type applications and are fast-acting, accurate, reliable, and extremely easy to install.
Specification
Power Supply: 0…10Vdc output – self-powered / 4…20mA output – nominal 24Vdc supply
Selectable Ranges: Low Range – 0…10/20/50A / High Range – 0…100/150/200A
Frequency: 40…100Hz (VSD Version 10…400Hz)
Insulation Class: 600Vac RMS
Accuracy: ± 1%
Response Time: 0.5 S
Enclosure Size: Solid core – 61 x 90 x 25mm / Split core – 63 x 100 x 32mm
Enclosure Material: UL 94V – 0 flammability rated ABS
Conductor Hole Size: Solid core – 19mm diameter / Split core – 22.6 x 22.6mm
Operating Temperature: –30˚C to +70˚C
Certification: CE, UL and RoHs
Additional information
| Weight | .50 kg |
|---|---|
| Type | CS-SD10L, CS-SD10, CS-SD420L, CS-SD420, CS-SD420LT, CS-SD420, CS-SD420T, CS-SP10L, CS-SP10, CS-SP420L, CS-SP420 |
