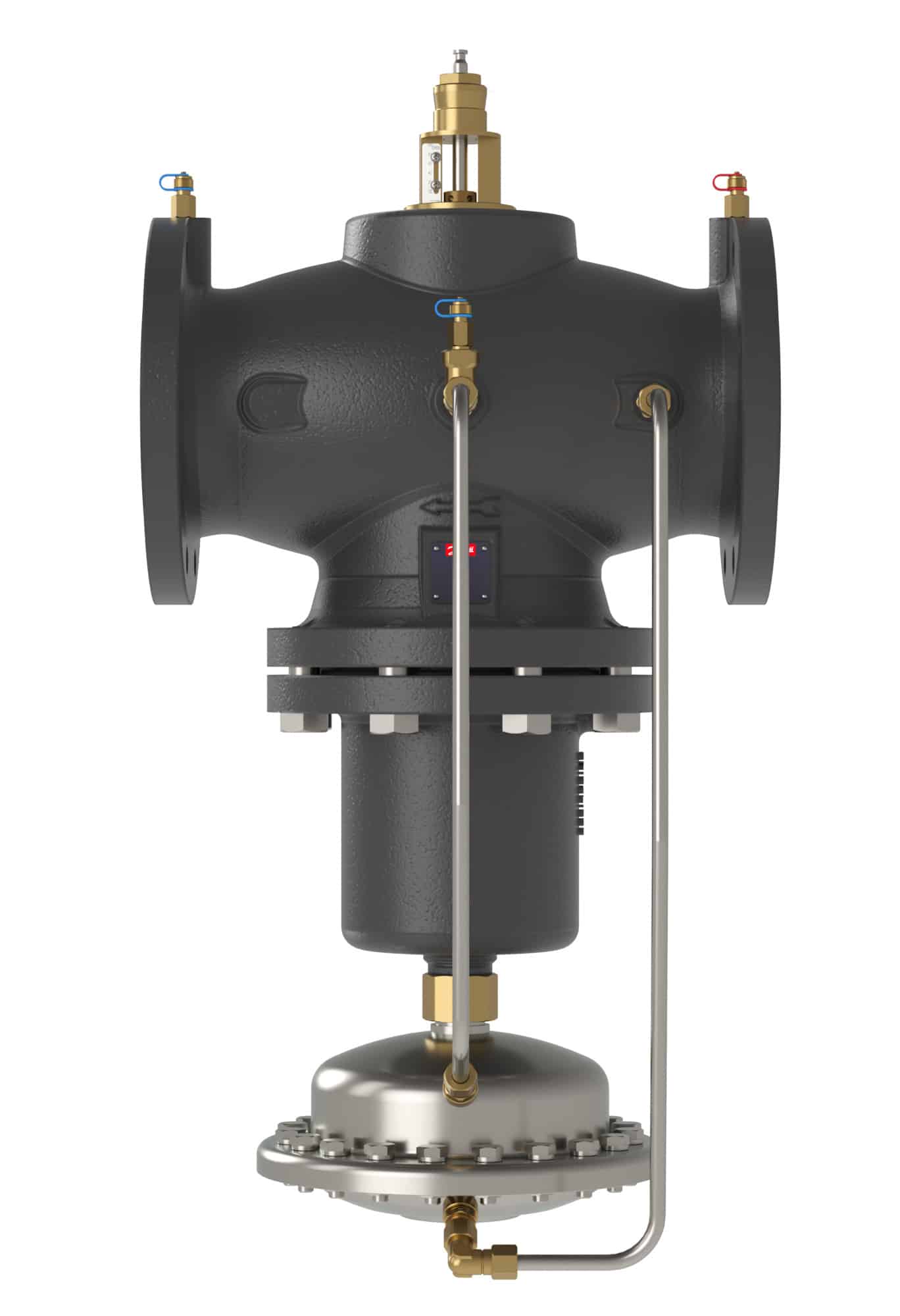

ABQM 125HF – 125mm High Flow PICV
£5,820.00 Exc. VAT
AB-QM DN 125 High flow, with three test plugs, pressure independent balancing and control valve
AB-QM, DN 125; High flow, Test plugs: With test plugs, Flange
AB-QM DN 125 High flow, with three test plugs, pressure independent balancing and control valve
| Gross weight | 123.8 Kilogram |
| Net weight | 123.8 Kilogram |
| Volume | 662.4 Liter |
| EAN | 5702425082115 |
| Type | AB-QM |
| Product group | Pressure-independent balancing and control valves |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | AB-QM DN 125 High flow, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 110 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 5fe0b894-3a5b-4095-979e-4da9ae00c7de |
| SCIP dossier product name | AB-QM DN125 |
| Stroke [mm] | 30 mm |
| Test plugs | With test plugs |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 125 High flow |
| Version | AB-QM |
Additional information
| Weight | 124 kg |
|---|
