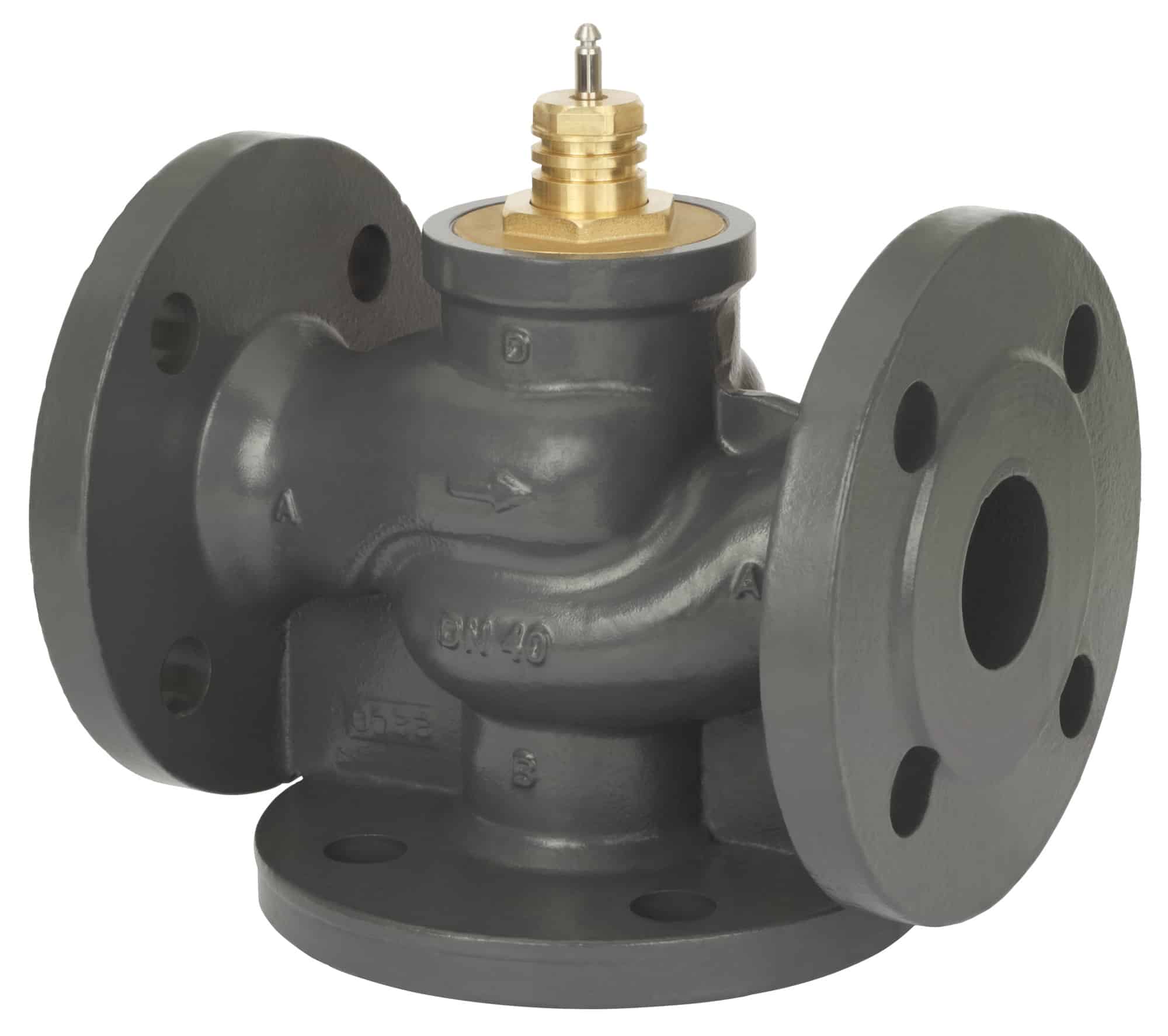

VF3/65/63 – 65mm 3P Control Valve, Kv 63
£907.00 Exc. VAT
VF 3 PN16 65/63 3-way seated flange
VF 3 PN16 65/63 3-way seated flange
| Gross weight | 25.2 Kilogram |
| Net weight | 25.2 Kilogram |
| Volume | 82.992 Liter |
| EAN | 5710104007533 |
| Type | VF 3 |
| Product group | Other valves |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| China RoHS compliance | Out of scope |
| Closing differential pressure (diverting) [bar] [Max] | 0.6 bar |
| Closing differential pressure (mixing) [bar] [Max] | 2.5 bar |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VF 3 PN16 65/63 3-way seated flange |
| Diameter [mm] | 65 mm |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Function | Mixing valve |
| Function 2 | Pressure relief |
| Kvs values [m³/h] | 63 m³/h |
| Leakage through the port max. [% Kvs] | bubble-tight design |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | cb1d506c-44ab-4133-bfa4-a03be834a838 |
| SCIP dossier product name | VF 3 PN16 65/63 3-WAY SEATED FLANGE |
| Stroke [mm] | 20 mm |
| Stuffing box sealing material | EPDM |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Brass |
| Valve stem material | Stainless steel |
Additional information
| Weight | 25.2 kg |
|---|
