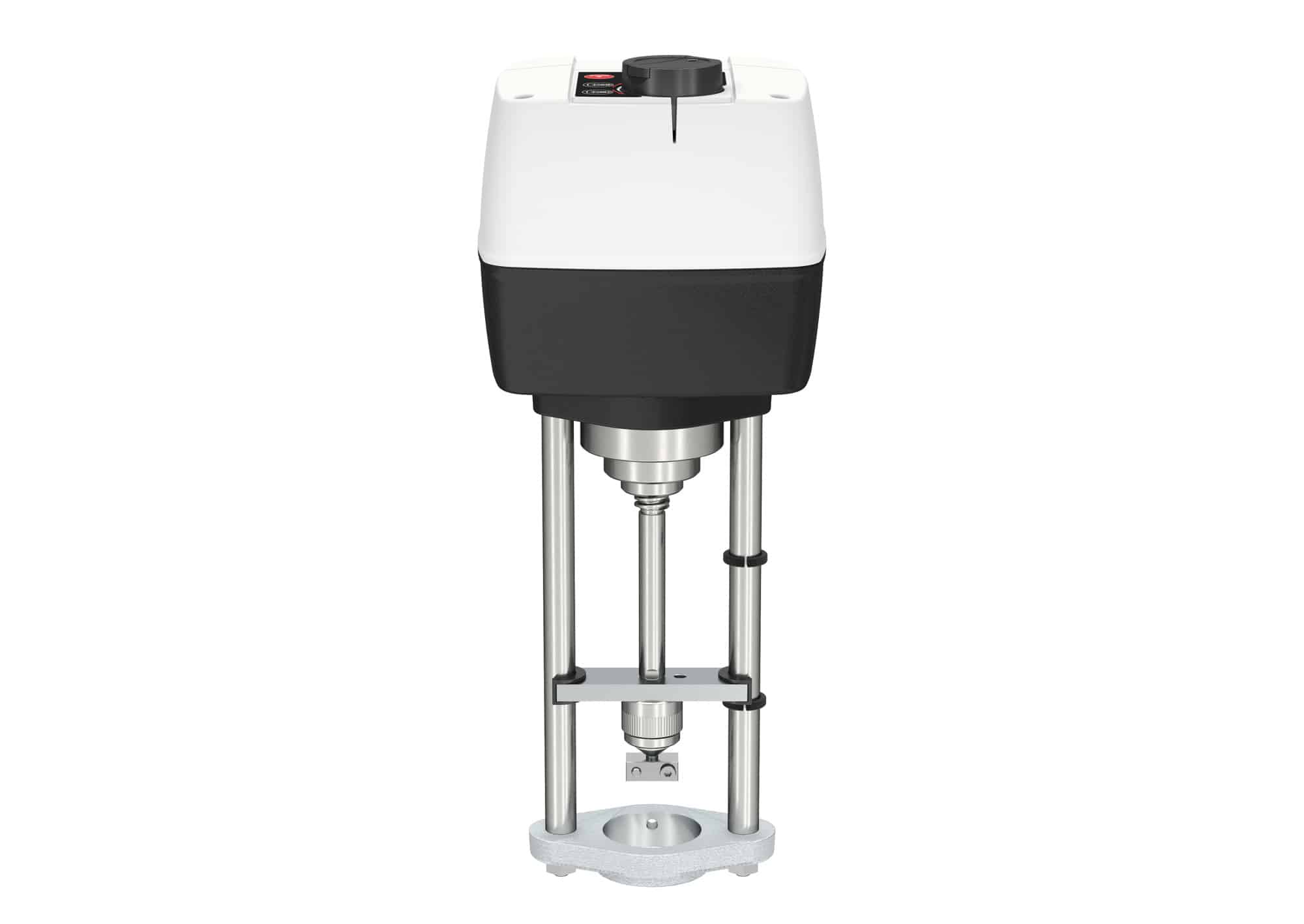

AME 685-1, Supply voltage [V] AC: 24, Supply voltage [V] DC: 24, 32 mm
AME 685-1, 24V AC/DC, 80 mm, UL certified actuator for modulating control for AB-QM DN 200-250
| Gross weight |
8.64 Kilogram |
| Net weight |
5.79 Kilogram |
| Volume |
27.83 Liter |
| EAN |
5710104095288 |
| Type |
AME 685-1 |
| Product group |
Gear actuators |
| Approval standard |
UL 60730 |
| Cable included |
No |
| China RoHS compliance |
Yes with exemptions |
| China RoHS exemption clause |
7.3 |
| Compatibility with the valve |
AB-QM 8-10” |
| Contains batteries |
No |
| Control input signal Y [mA] |
0(4) - 20 mA |
| Control input signal Y [V] |
0(2) - 10 V |
| Control signal type |
Modulating/3-point |
| Description |
AME 685-1, 24V AC/DC, 80 mm, UL certified actuator for modulating control for AB-QM DN 200-250 |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| IP protection class |
IP54 |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
e470f2f9-df83-43d7-bac8-2014725de1e7 |
| SCIP dossier product name |
AME 685-1 |
| Stroke [mm] |
32 mm |
| Supply voltage [V] AC |
24 V |
| Supply voltage [V] DC |
24 V |
