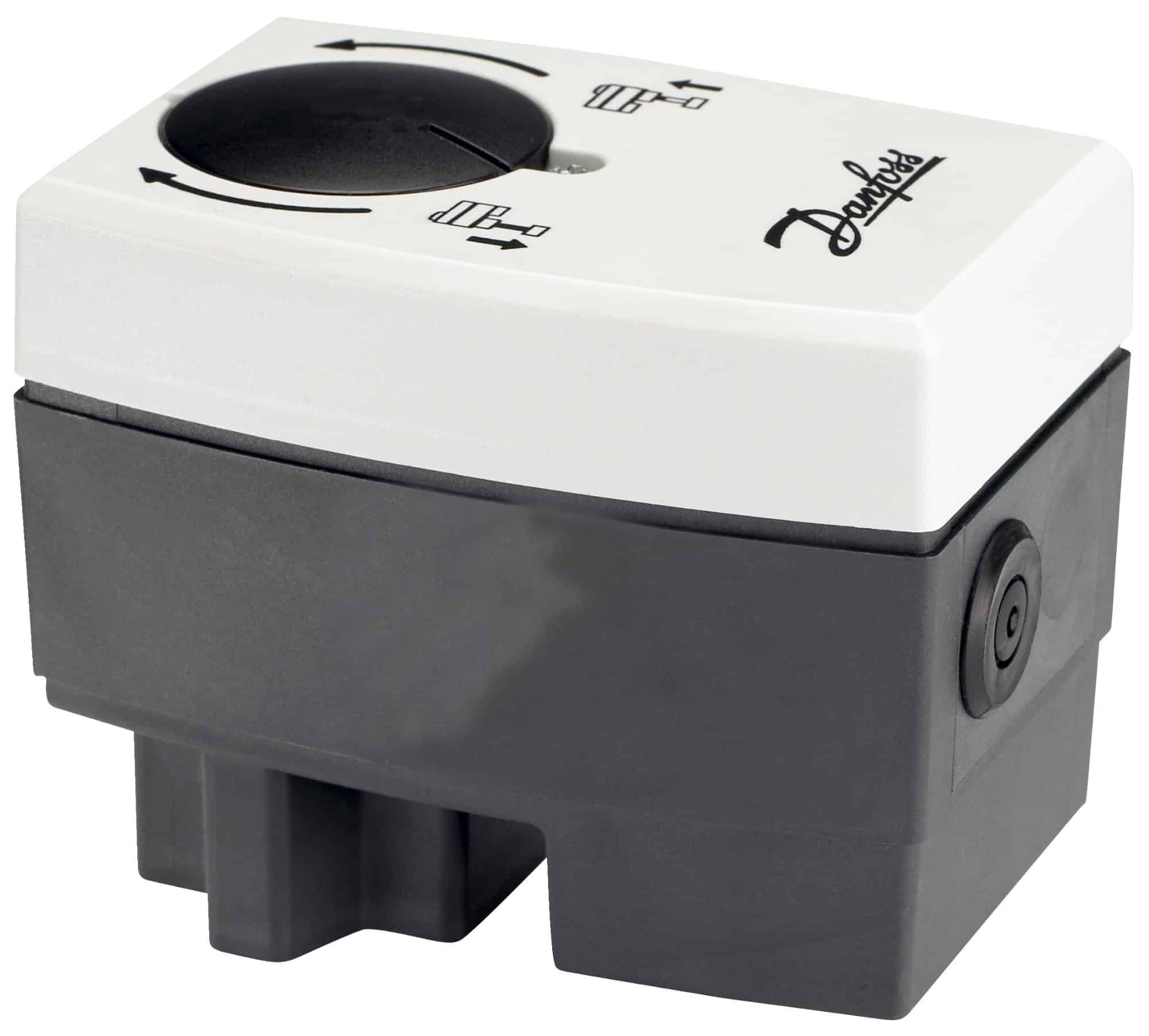

Electrical actuators, AME 13, Supply voltage [V] AC: 24
AME 13 24V 14s/mm 5mm 300N
| Gross weight |
0.872 Kilogram |
| Net weight |
0.872 Kilogram |
| Volume |
1.694 Liter |
| EAN |
5702421507568 |
| Type |
AME 13 |
| Product group |
Electrical actuators |
| Actuator speed [s/mm] |
14 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [max] |
55 °C |
| Ambient temperature [°C] [min] |
0 °C |
| Application |
District Heating |
| China RoHS compliance |
Out of scope |
| Closing force [N] |
300 N |
| Contains batteries |
No |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] |
500 Ohm |
| Control input signal Y [V] |
0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] |
24 kOhm |
| Control signal type |
Modulating/3-point |
| Description |
AME 13 24V 14s/mm 5mm 300N |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Grade of enclosure |
IP54 |
| Manual operation |
Yes |
| Position feedback |
yes |
| Power consumption [W] |
9 W |
| Protection Class of the Coating |
II |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Safety function |
Yes |
| SCIP dossier no. |
ebea89b0-e049-4151-bb9c-338b14868406 |
| SCIP dossier product name |
AMV(E) 10/13 |
| Speed type |
Standard |
| Spring down (return) |
Yes |
| Spring up |
No |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
5 mm |
| Supply voltage [V] AC |
24 V |
| Turn time per 90° [s] |
0 “ |
