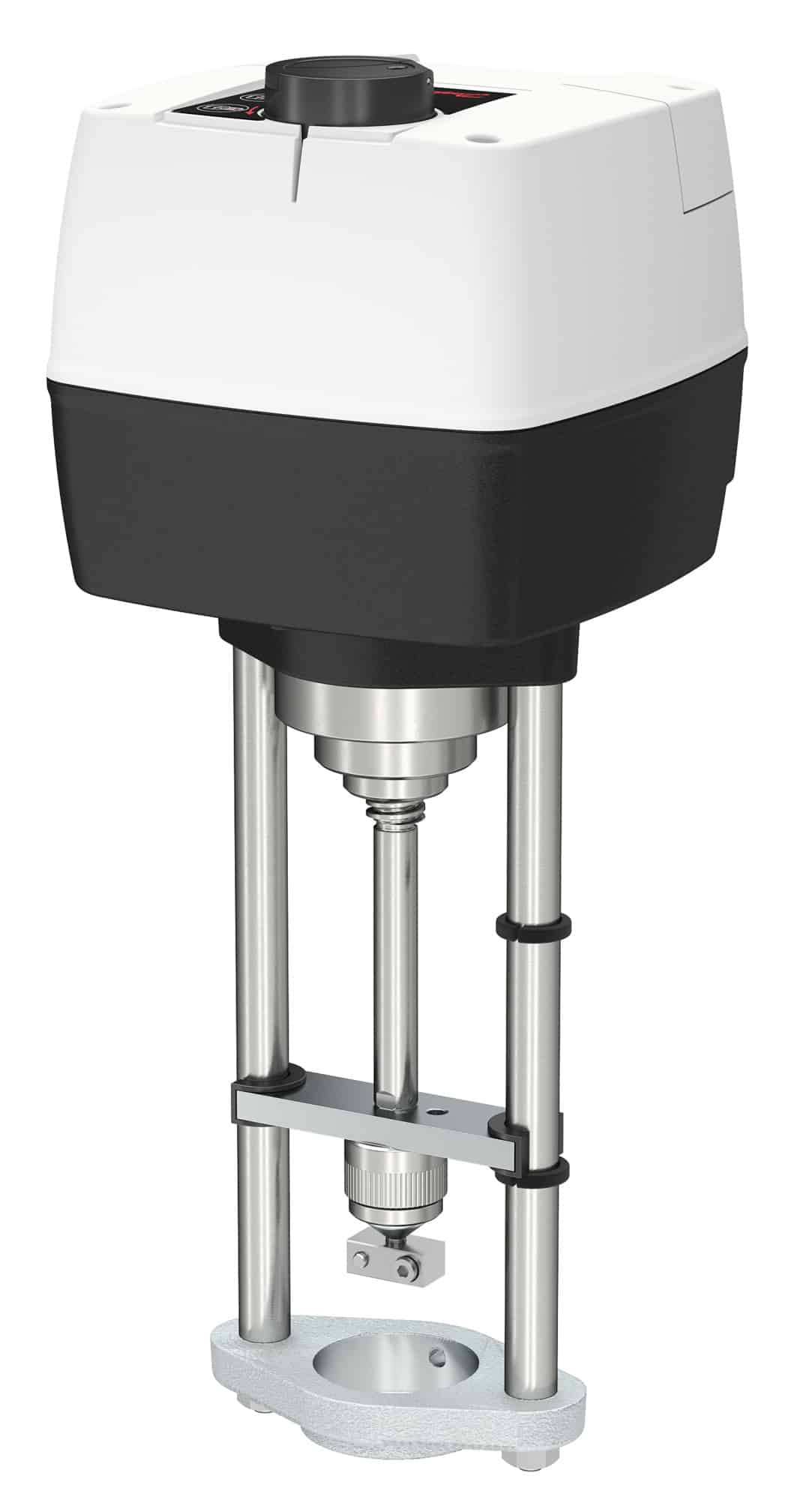

AME685 – 24v 0-10v Actuator – To Suit VF3 DN200-300

Name: AME685 - 24v 0-10v Actuator - To Suit VF3 DN200-300
SKU: 082G3500
Availability: InStock

£2,950.00 Exc. VAT

AME 685, 24 V AC/DC, 6 s/mm;3 s/mm, 80 mm

SKU: 082G3500 Categories: Danfoss, Danfoss Actuators Tags: actuator, Danfoss

AME 685, 24 V AC/DC, 6 s/mm;3 s/mm, 80 mm

Actuator speed [s/mm]	3 s/mm 6 s/mm
Actuator type	Electrical
Ambient temperature [°C] [max]	55 °C
Ambient temperature [°C] [min]	0 °C
Application	HD District Heating
China RoHS compliance	Out of scope
Closing force [N]	5000 N
Contains batteries	No
Control input signal Y [mA]	0(4) - 20 mA
Control input signal Y [mA], impedance [Ohm]	100 Ohm
Control input signal Y [V]	0(2) - 10 V
Control input signal Y [V], impedance [kOhm]	1 kOhm
Control signal type	Modulating/3-point
Description	AME 685, 24V AC/DC, 2.7 s/mm - 6 s/mm, 80 mm stroke
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Frequency [Hz]	50/60
IP protection class	IP54

Manual operation	Yes
Media temperature [°C] [Max]	200 °C
Position feedback	yes
Power consumption [W]	35 W
Protection Class of the Coating	II
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Safety function	No
SCIP dossier no.	1383b0ac-9597-4acd-8949-becd4eb06779
SCIP dossier product name	AMV(E) 65x/685/855_1
Speed type	Standard
Spindle speed [s/mm] [Max]	6 s/mm
Spindle speed [s/mm] [Min]	3 s/mm
Spring down (return)	No
Spring up	No
Storage temperature [°C] [Max]	70 °C
Storage temperature [°C] [Min]	-40 °C
Stroke [mm]	80 mm
Supply voltage [V]	24 V AC/DC

Additional information

Weight	10 kg
