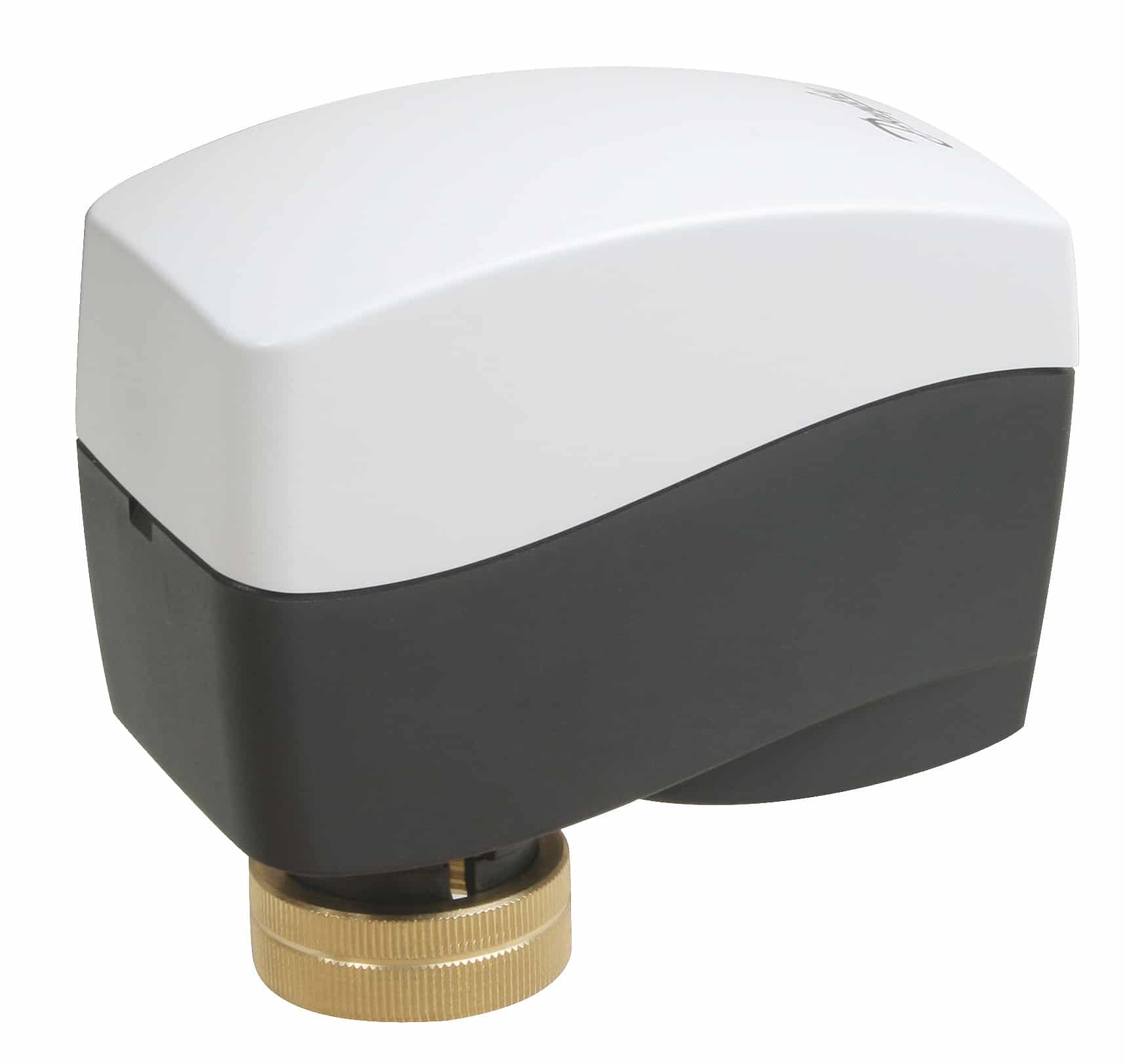

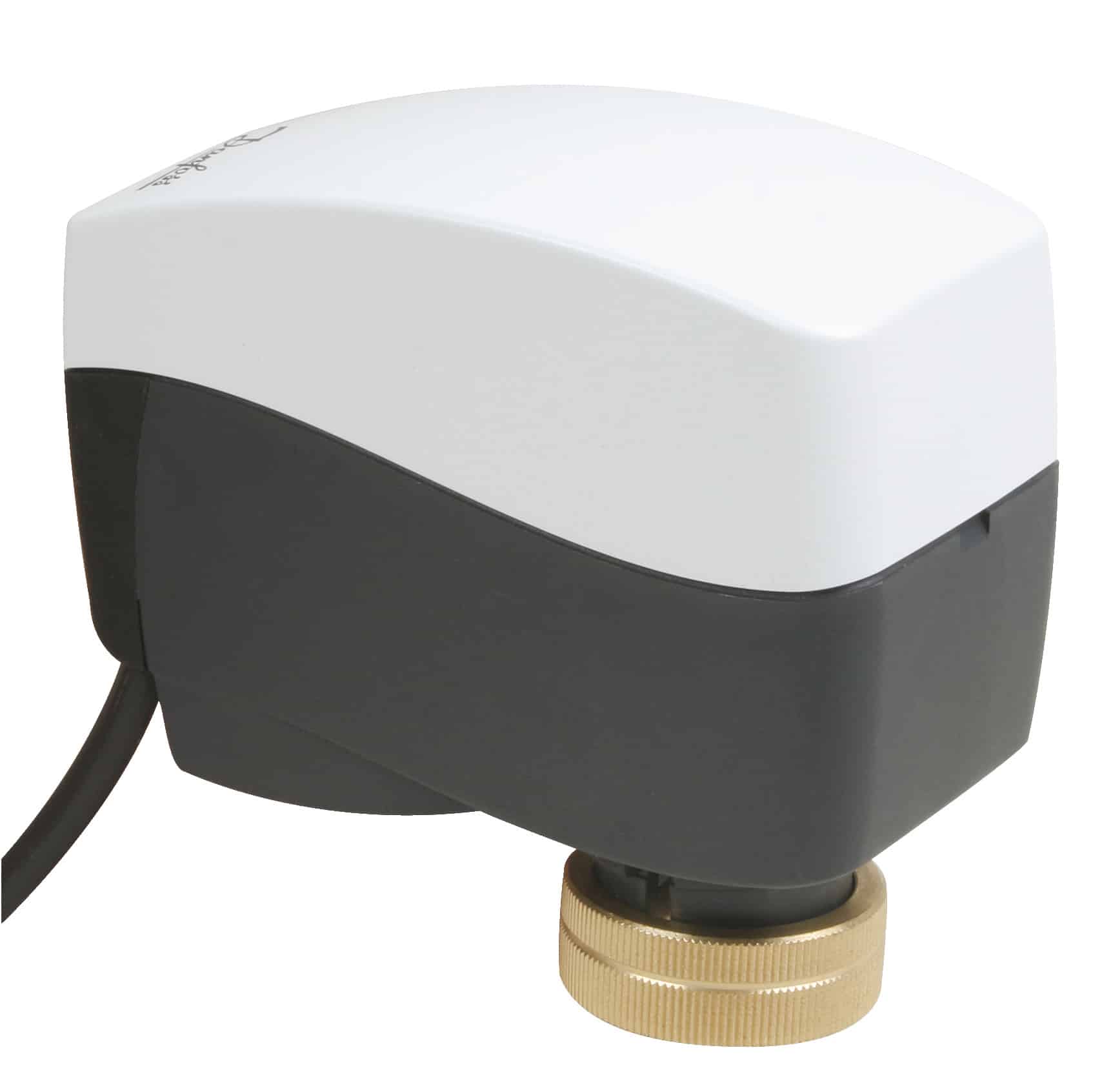

AMV130 Danfoss
£65.00 Exc. VAT
AMV 130, Supply voltage [V] AC: 24, 5.5 mm
AMV 130, Supply voltage [V] AC: 24, 5.5 mm
AMV 130 24V 24s/mm 5,5mm 200N
| Gross weight | 0.34 Kilogram |
| Net weight | 0.34 Kilogram |
| Volume | 1.025 Liter |
| EAN | 5702421551837 |
| Type | AMV 130 |
| Product group | Gear actuators |
| Actuator speed [s/mm] | 24 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | fan coils |
| Cable included | Yes |
| Cable length [m] | 1.5 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 200 N |
| Compatibility with the valve | VZ DN 15-20 VZL DN 15-20 |
| Contains batteries | No |
| Control input signal Y [mA] | 0 - 20 mA |
| Control input signal Y [V] | 0 - 10 V |
| Control signal type | 3-point |
| Description | AMV 130 24V 24s/mm 5,5mm 200N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP42 |
| Manual operation | Yes |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 1 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 5941c580-cf9b-456d-b3c6-52adde56771d |
| SCIP dossier product name | AMV (E) 130 - 150 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5.5 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 " |
Additional information
| Weight | 0.4 kg |
|---|
