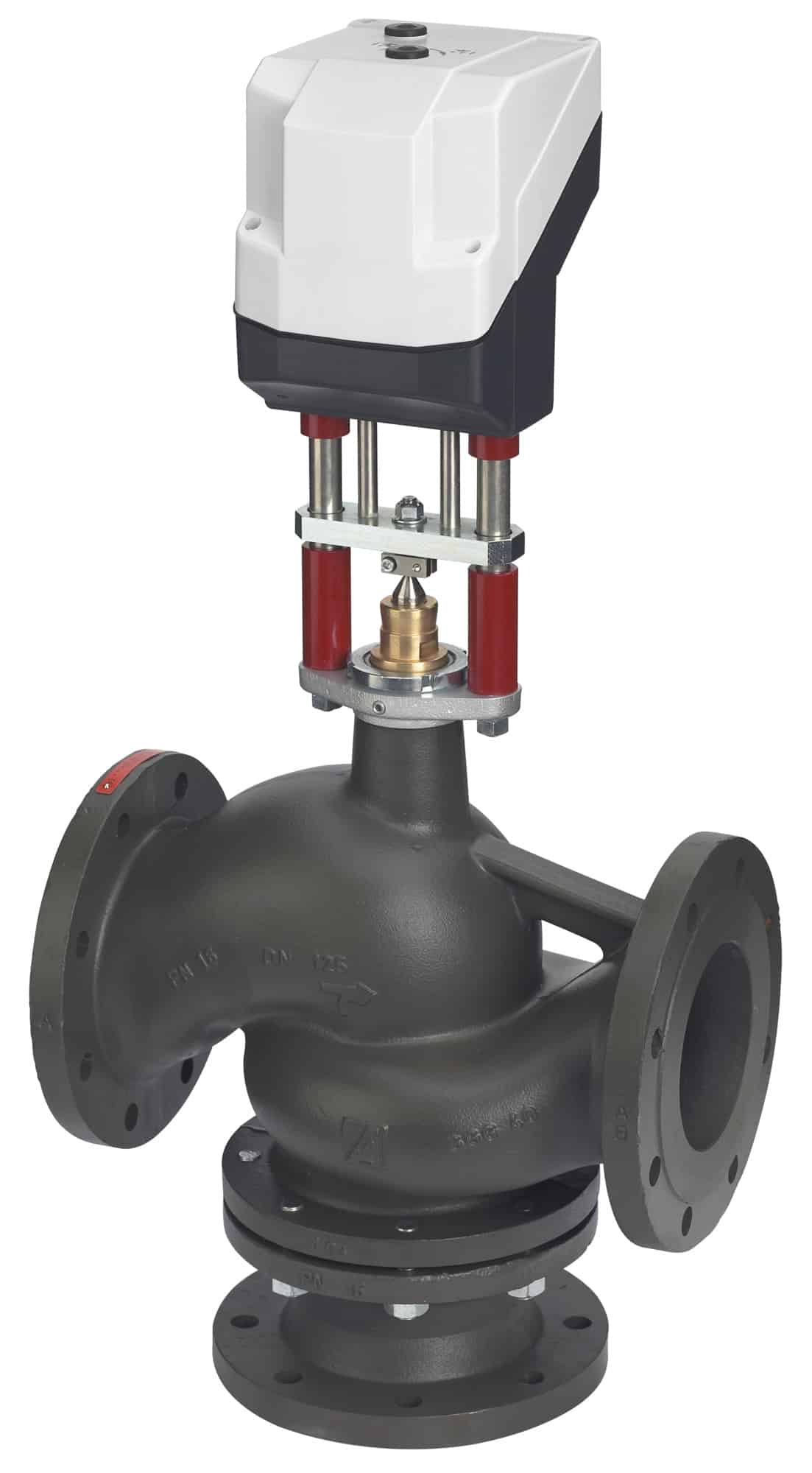

Electrical actuators, AMV 85, Supply voltage [V] AC: 230
| Gross weight |
10.418 Kilogram |
| Net weight |
9.733 Kilogram |
| Volume |
18.096 Liter |
| EAN |
5702421507599 |
| Type |
AMV 85 |
| Product group |
Electrical actuators |
| Actuator speed [s/mm] |
8 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [max] |
55 °C |
| Ambient temperature [°C] [min] |
0 °C |
| Application |
HD HVAC and DH |
| China RoHS compliance |
Out of scope |
| Closing force [N] |
5000 N |
| Contains batteries |
No |
| Control signal type |
3-point |
| Description |
AMV 85 230V 8s/mm 40mm 5000N |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Frequency [Hz] |
50/60 |
| Grade of enclosure |
IP54 |
| Manual operation |
Yes |
| Position feedback |
no - potentiometer needed |
| Power consumption [W] |
11 W |
| Protection Class of the Coating |
II |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Safety function |
No |
| SCIP dossier no. |
1aa24132-5502-41d0-b1ff-216d3124f43f |
| SCIP dossier product name |
AMV(E) 85/86 |
| Speed type |
Standard |
| Spring down (return) |
No |
| Spring up |
No |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
40 mm |
| Supply voltage [V] AC |
230 V |
| Turn time per 90° [s] |
0 " |
