Air Flow Switch
£72.00 Exc. VAT

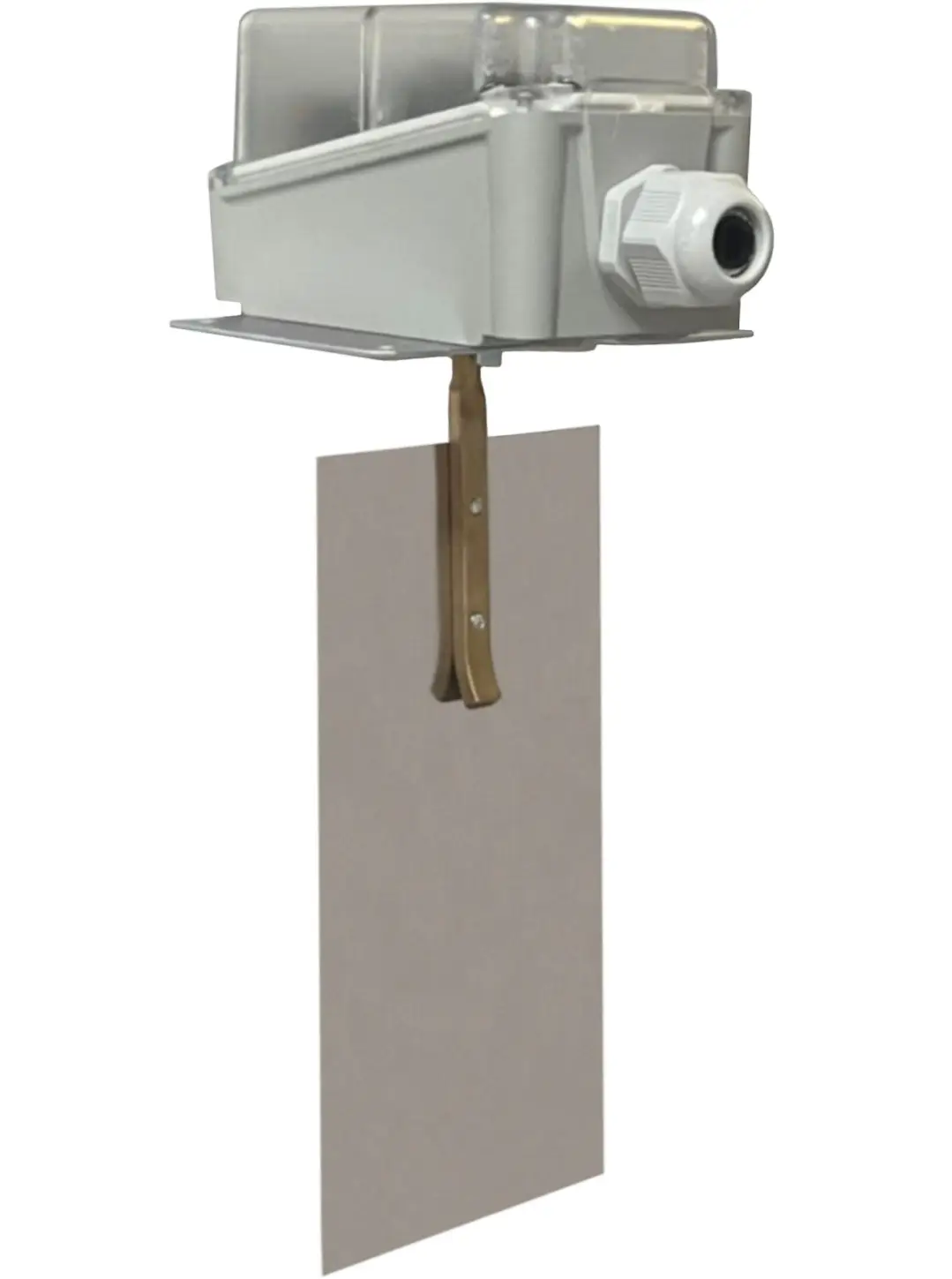

Air Flow Switch

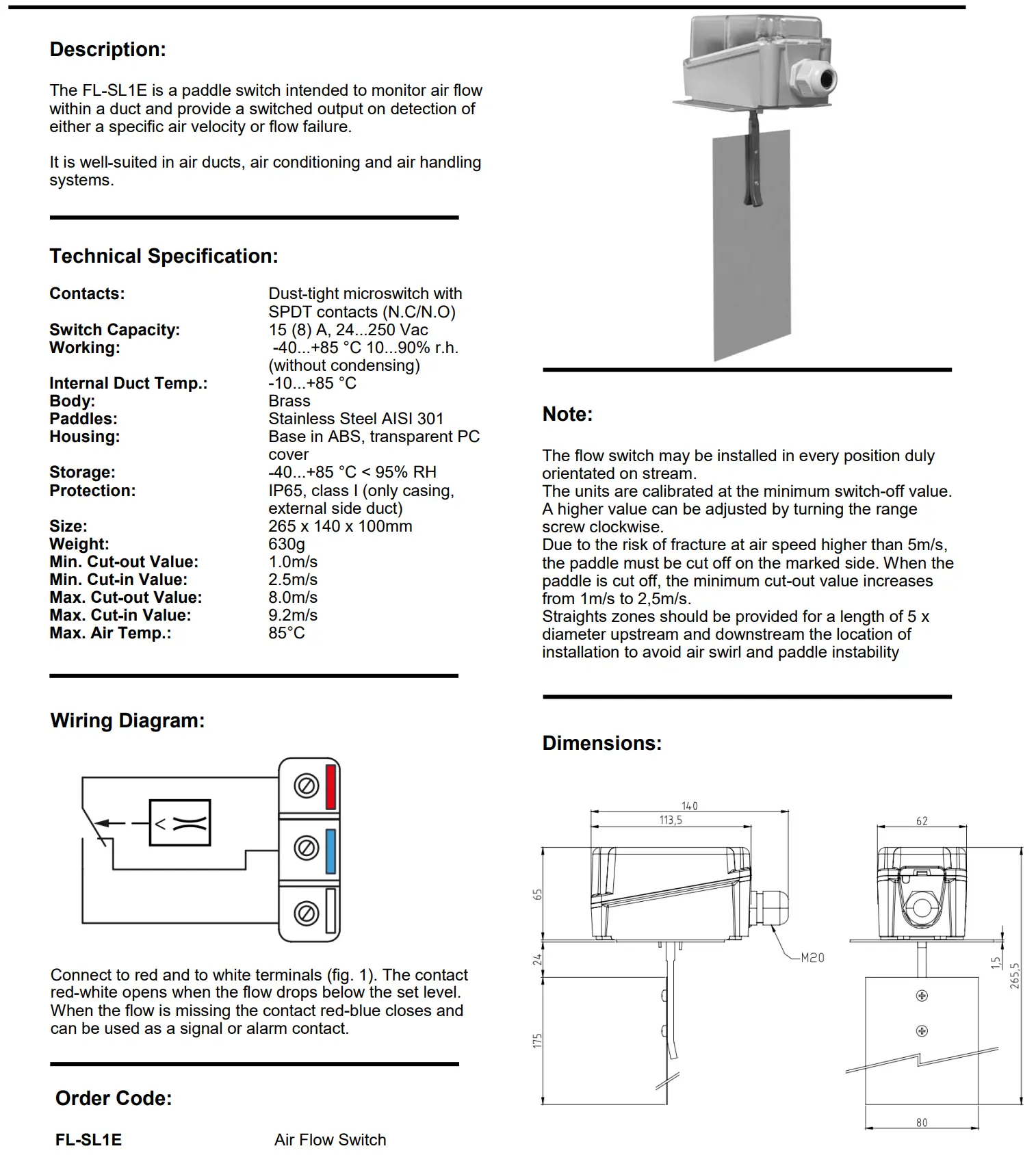

The FL-SL1E is a paddle switch intended to monitor airflow within a duct and provide a switched output upon detection of either a specific air velocity or flow failure.
Specification
Contacts: Dust-tight microswitch with SPDT contacts (n.c./n.o.)
Switch Capacity: 15(8)A, 24…250Vac
Working: -40…+85˚C 10…90% RH (without condensing)
Internal Duct Temp.: -10…+85˚C
Body: Brass
Paddles: Stainless steel AISI 301
Housing: Base in ABS, transparent PC cover
Storage: -40…+85˚C < 95% RH
Protection: IP65, class I (only casing, external side duct)
Size: 265 x 140 x 100mm
Additional information
| Weight | 0.85 kg |
|---|---|
| Dimensions | 9.7 × 7.9 × 6.5 cm |
