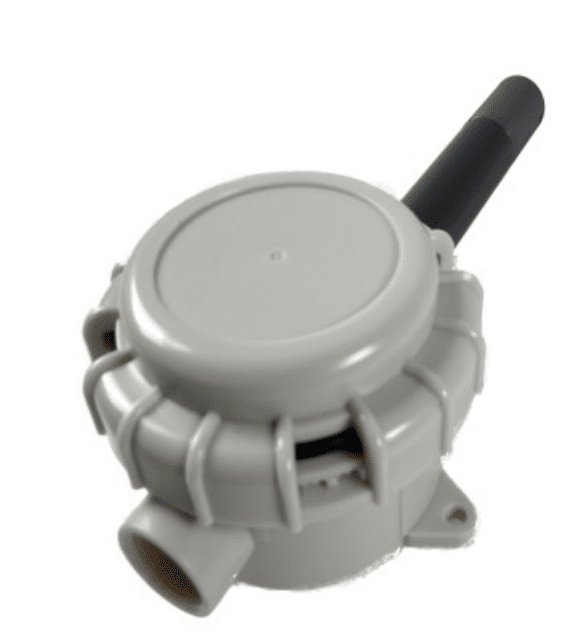

Humidity Sensor, selectable output with direct thermistor 2 percent
£112.00 Exc. VAT
This type of humidity and temperature sensor uses state-of-the-art single-chip multi-sensor technology.
This type of humidity and temperature sensor uses state-of-the-art single-chip multi-sensor technology. The sensing element is a polymer sensing chip with built-in electronics to give accurate signals and fast responses. This product has been designed with state-of-the-art electronics, and built in the UK to assure excellent reliability and quality.

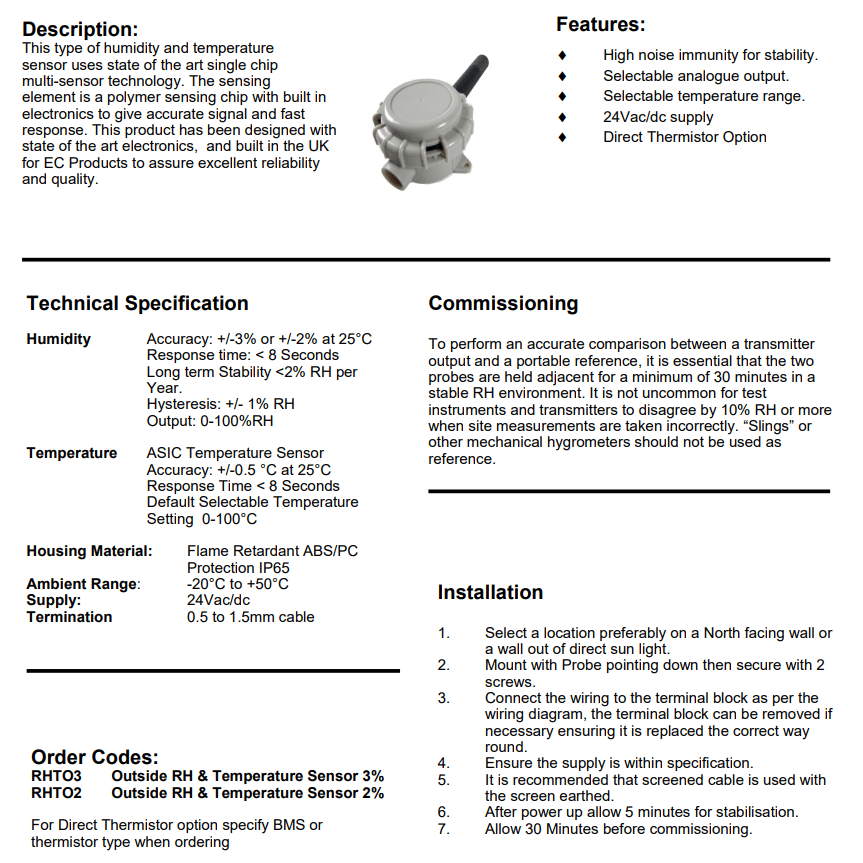

Specification
Humidity…
Accuracy: +/-2% at 25˚C
Response Time: < 8 seconds
Long-term Stability: < 2% RH per year
Hysteresis: +/- 1% RH
Output: 0 – 100% RH
Temperature…
ASIC Temp. Sensor Accuracy: +/-0.5˚C at 25˚C
Response Time: < 8 seconds
Default Selectable Temp. Setting: 0 – 100˚C
Housing Material: Flame retardant ABS/PC
Protection: IP65
Ambient Range: -20˚C to +50˚C
Supply: 24Vac/dc (+/-10%)
Termination: 0.5 to 1.5mm cable
Additional information
| Weight | 0.56 kg |
|---|---|
| Dimensions | N/A |
| Sensor Type | RHTO2-10K3, RHTO2-TAC, RHTO2-10K4, RHTO2-H, RHTO2-3K, RHTO2-P, RHTO2-100, RHTO2-LAN, RHTO2-1K, RHTO2-SAT |
