Tri-Rated Cable
Price range: £28.00 through £139.00 Exc. VAT
Tri-Rated Cable – High temperature, flame-retardant cable designed for use in switch control, relay and instrumentation panels.
High temperature, flame-retardant cable designed for use in switch control, relay and instrumentation panels.

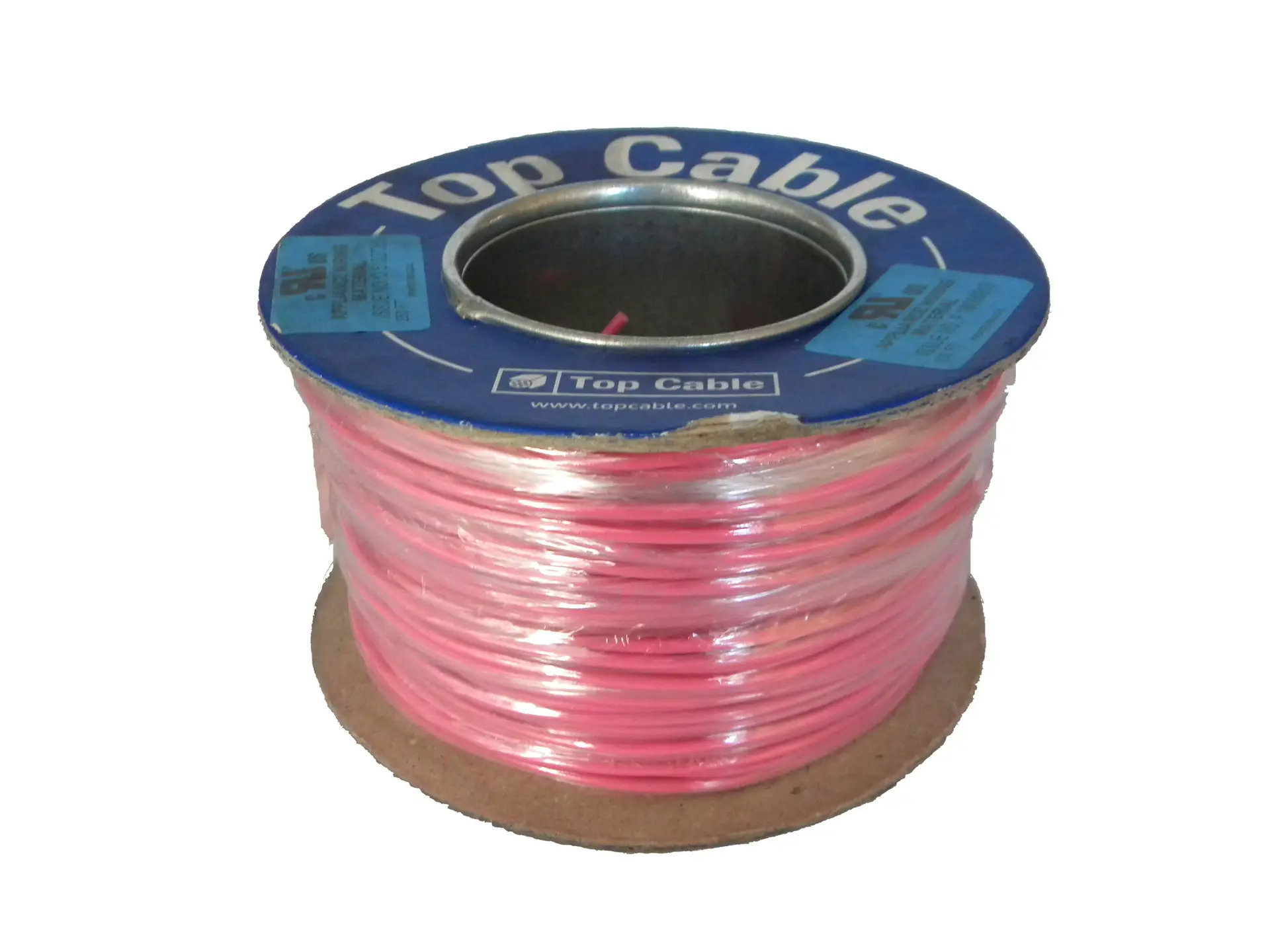

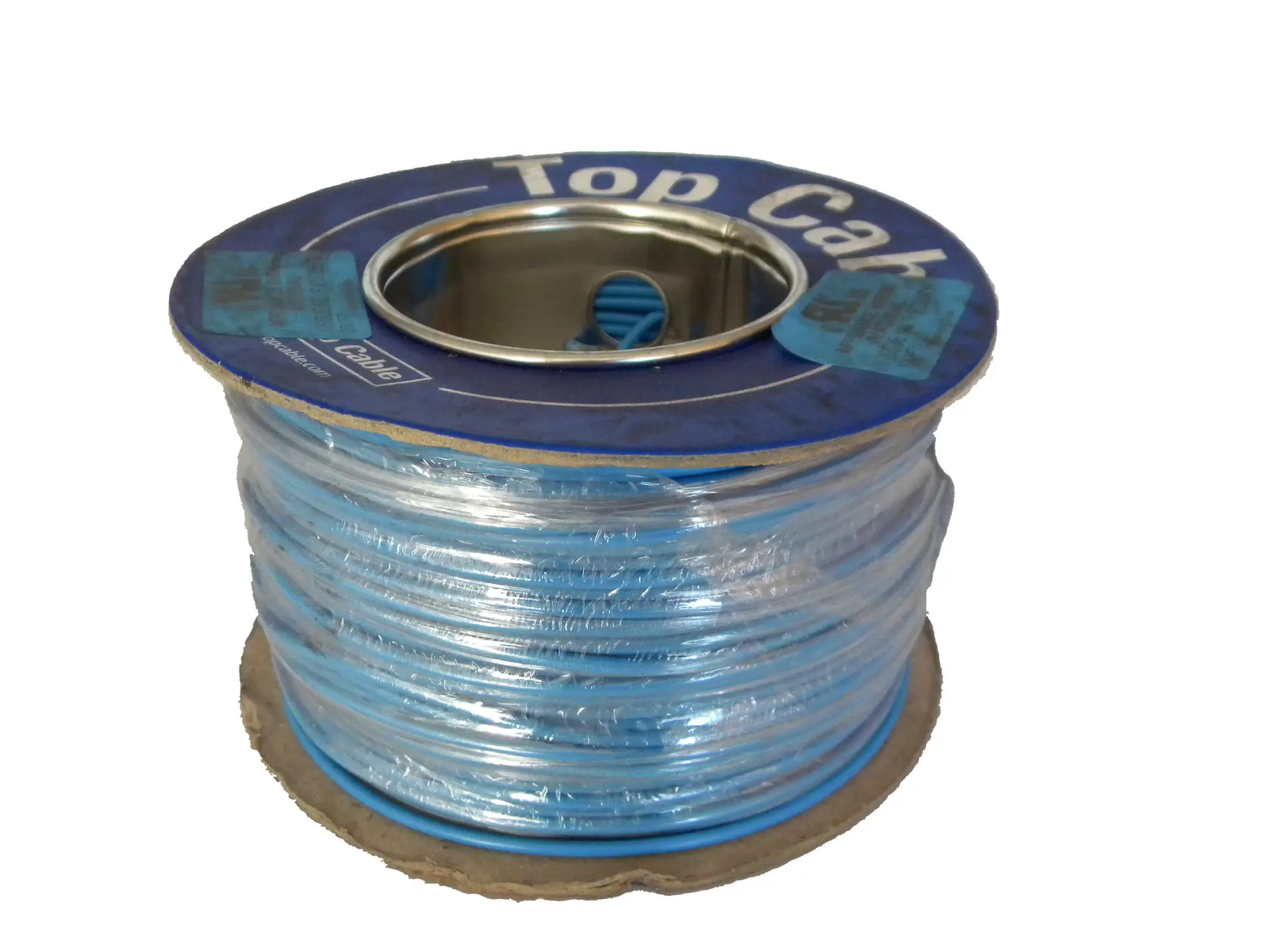

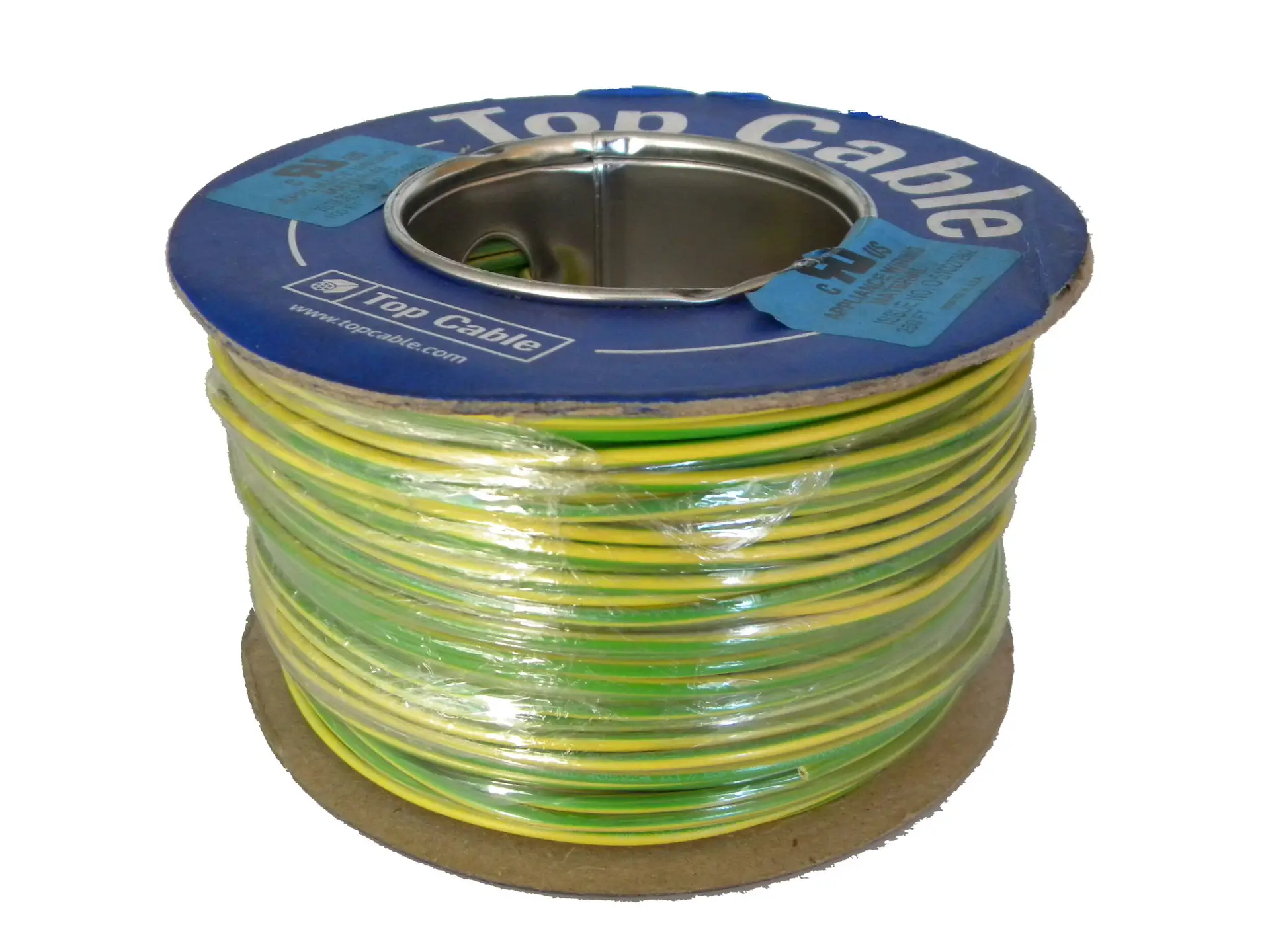

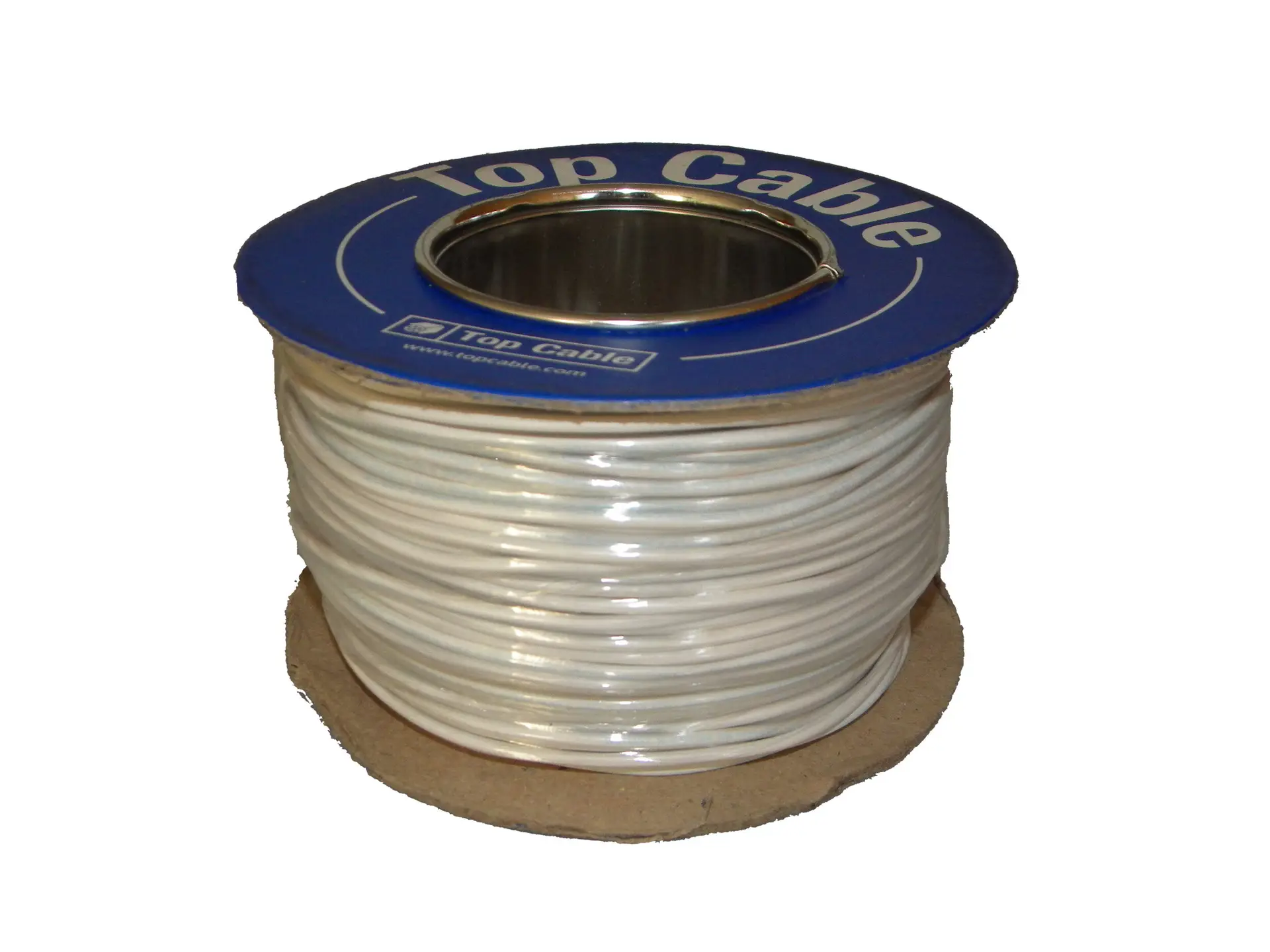

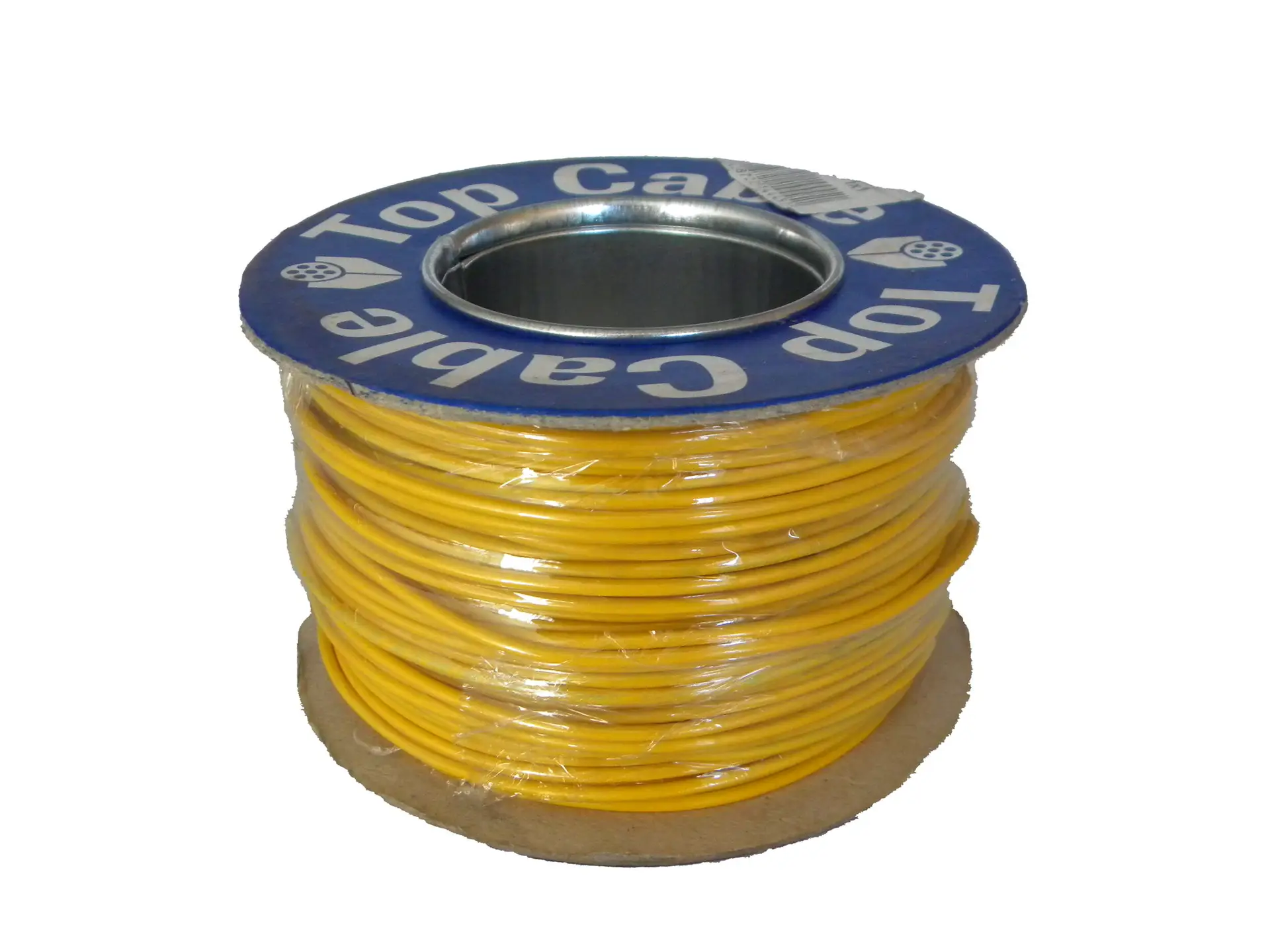

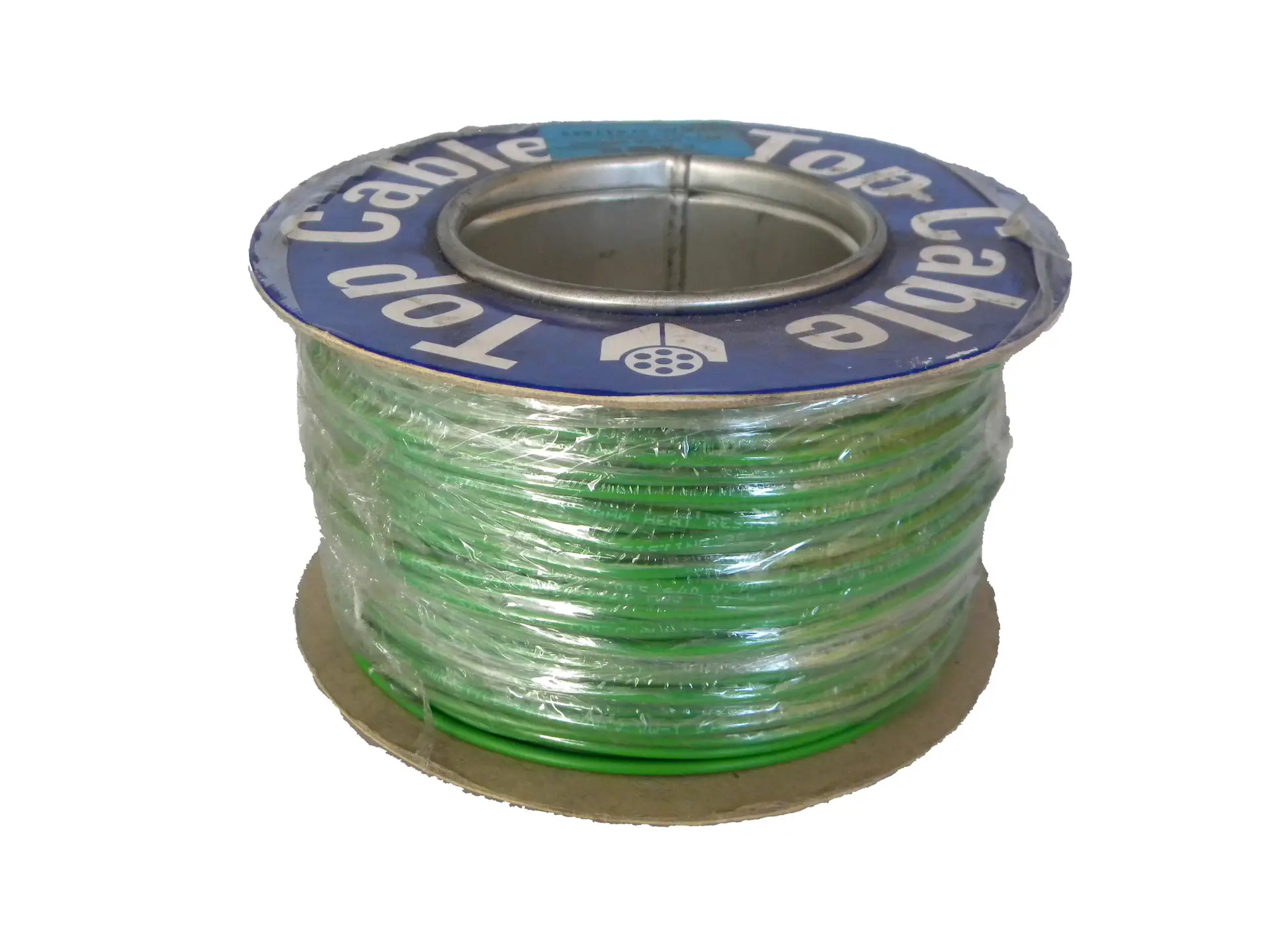

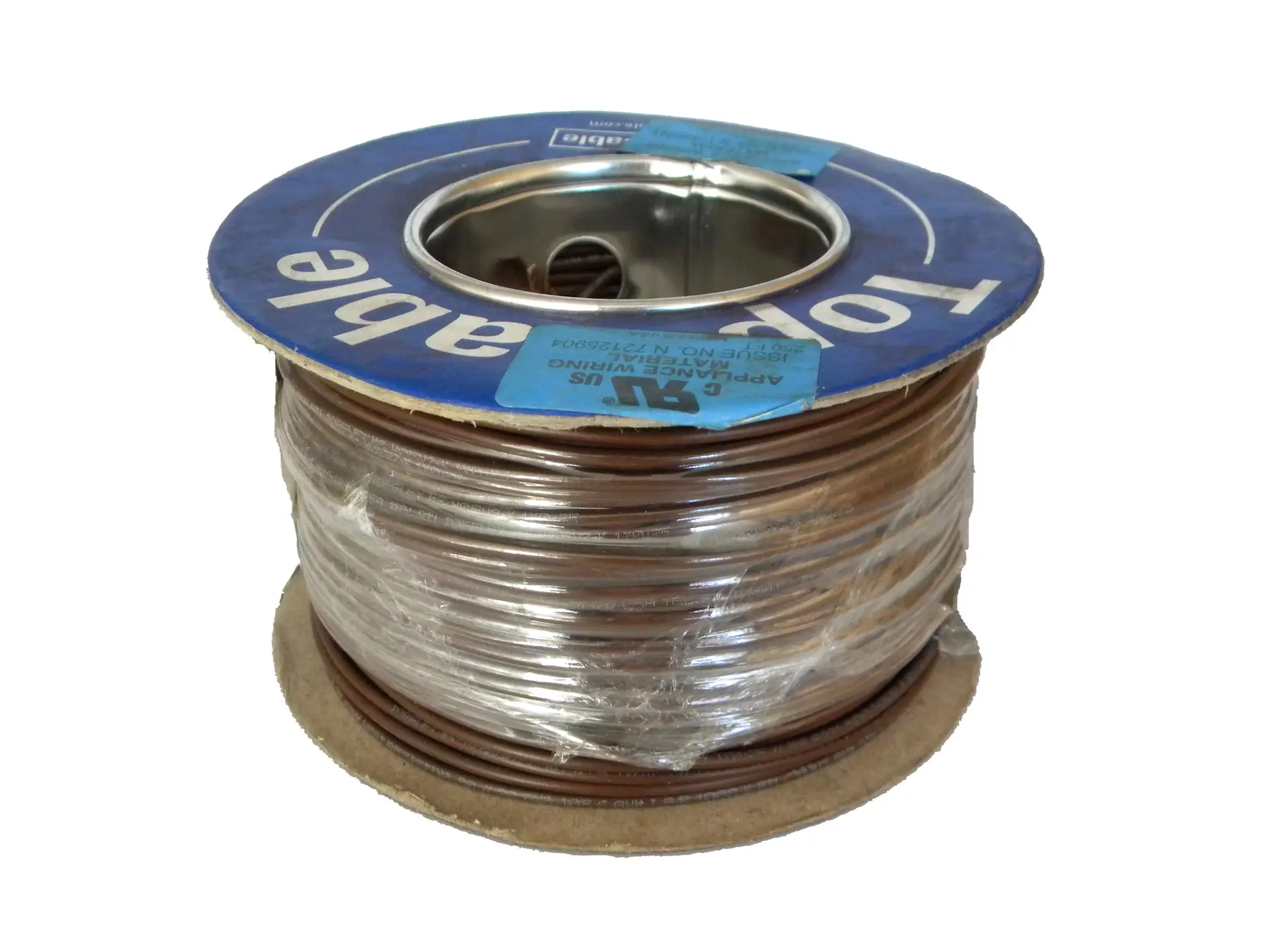

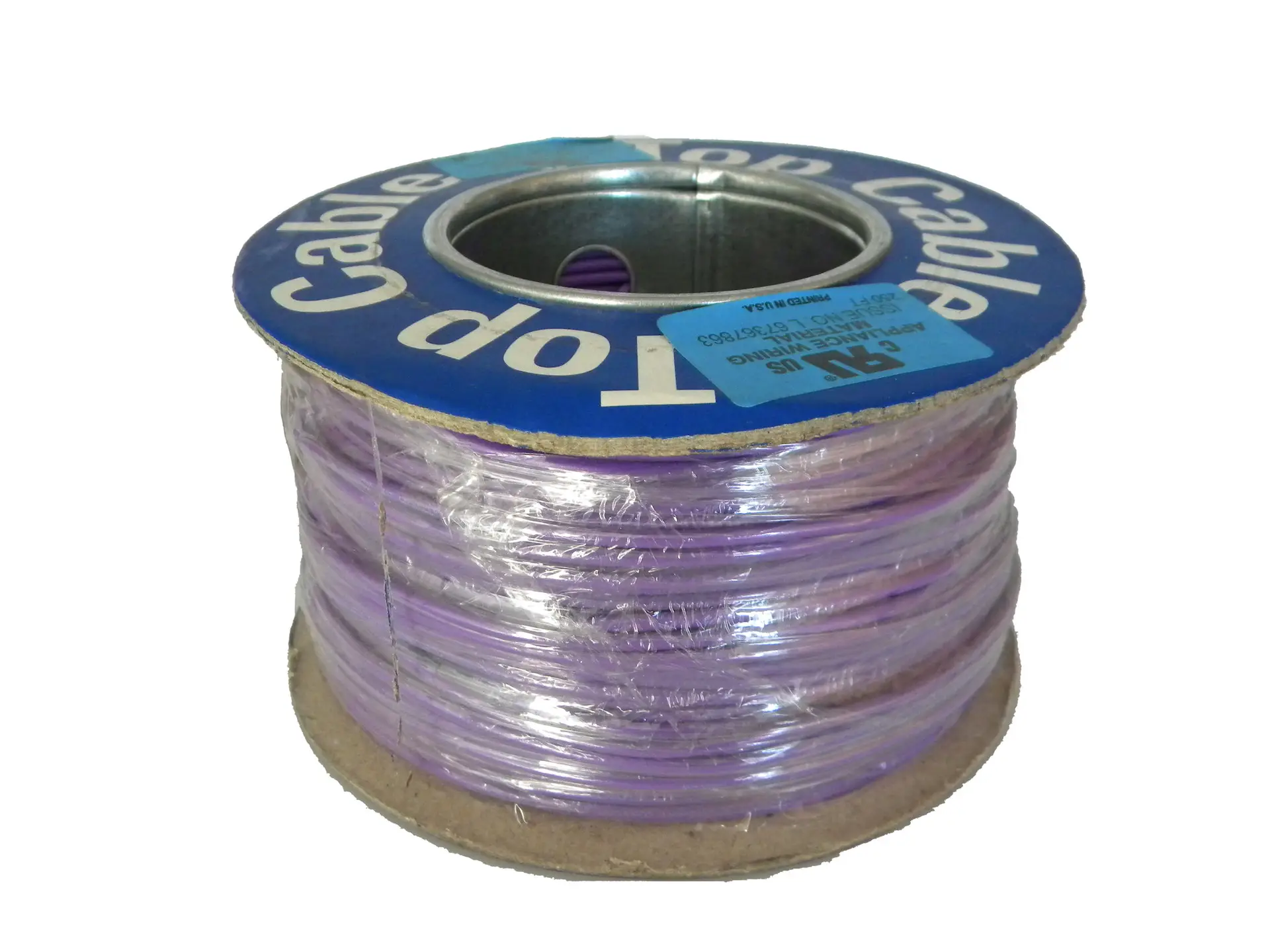

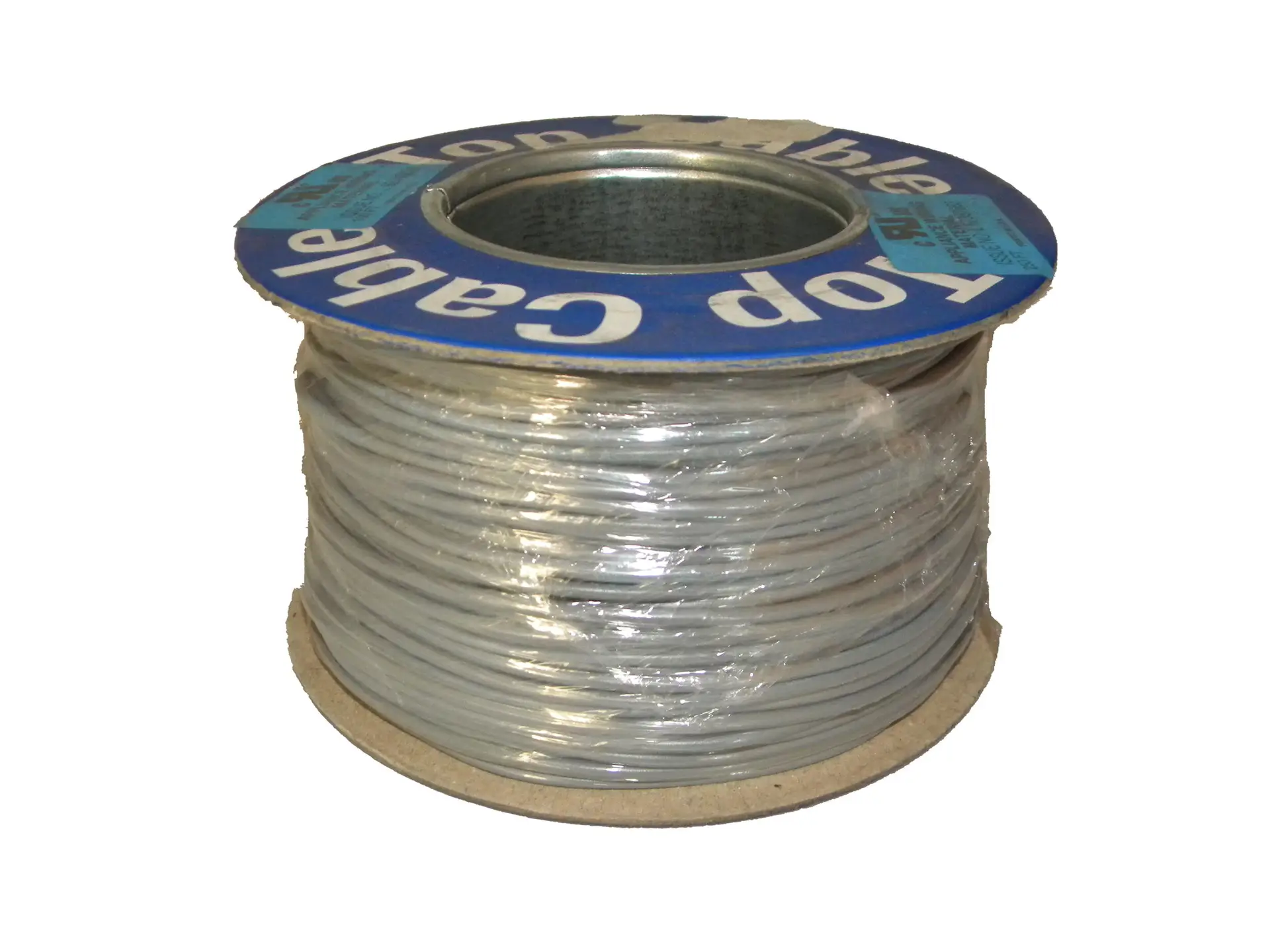

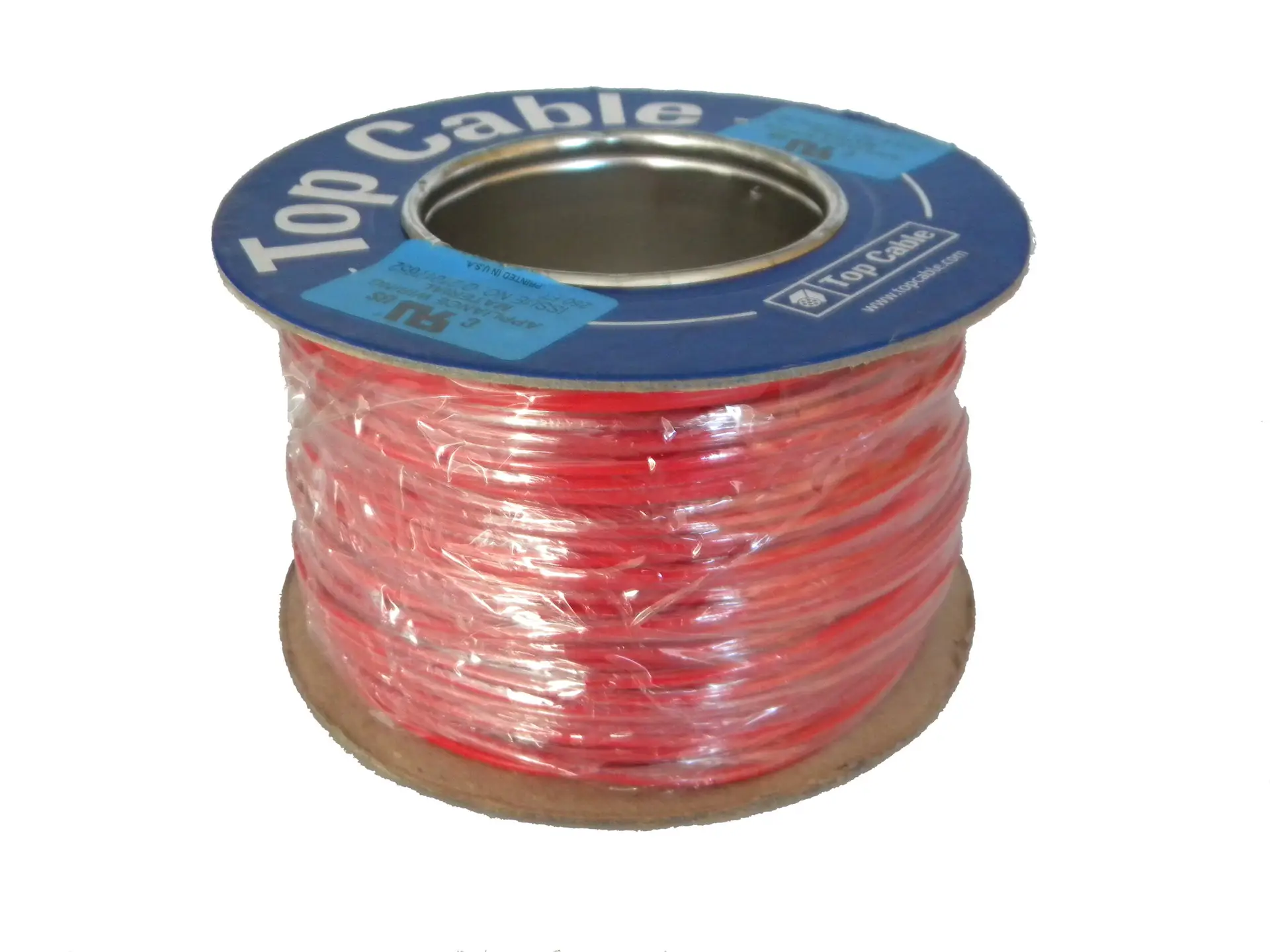

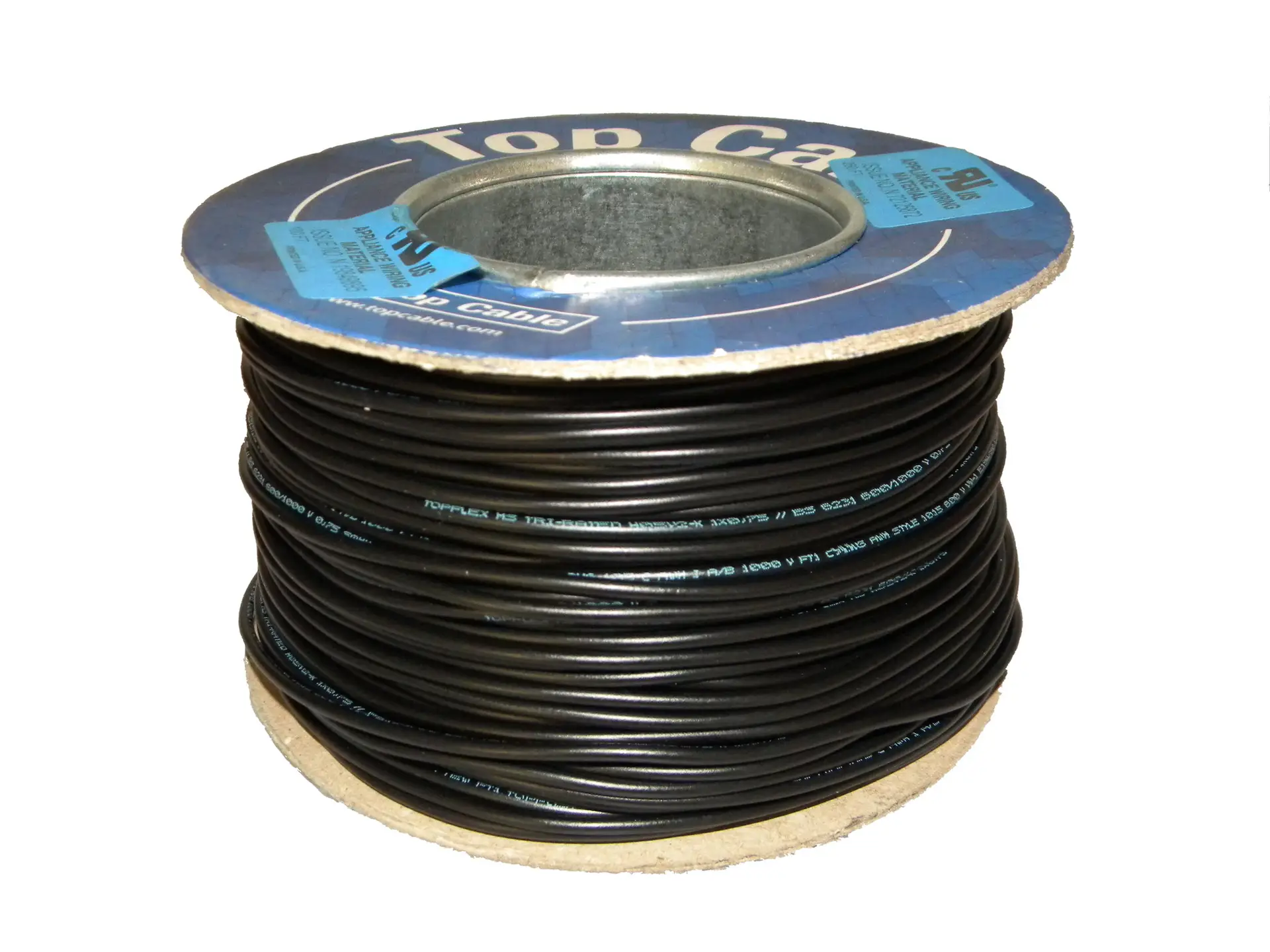

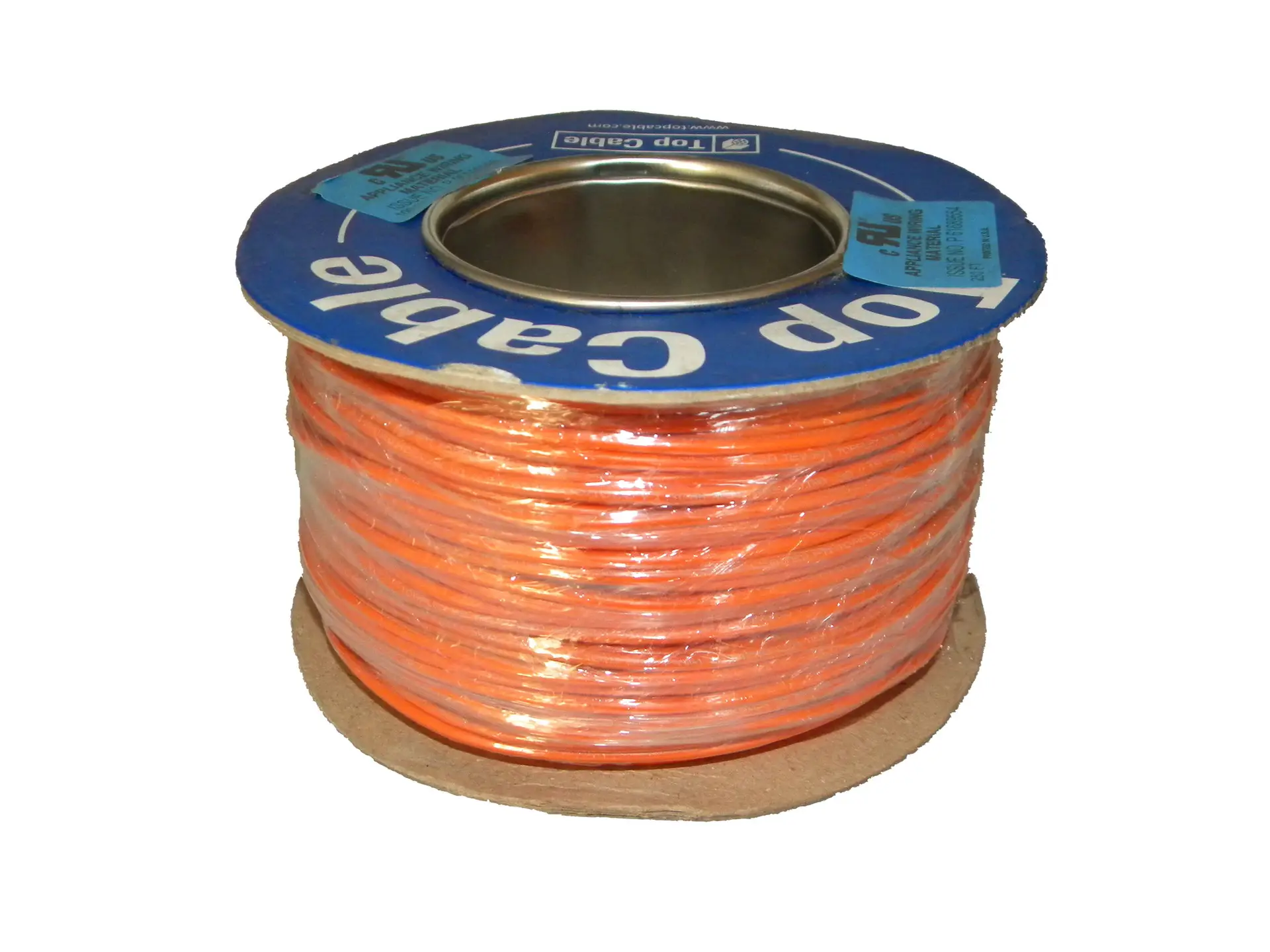

Tri-Rated Cable supplied on 100m reels.
Specification
Conductor: Copper, class 5 (flexible), based on EN60228 / IEC 60228 and BS 6360.
Insulation: Flexible PVC, extra sliding, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581.
Voltage Rating (Uo/U): UL, CSA: 600/1000V BS 6231: 600/1000V BS EN 50525-2-31: 300/500V, 450/750V
Temperature Rating: UL, CSA: +105°C BS 6231: +90°C Minimum: -15°C
Min Bending Radius: 6 x overall diameter
Additional information
| Weight | 1.2 kg |
|---|---|
| Colour | Black, Blue, Brown, Green, Green/Yellow, Grey, Orange, Pink, red, Violet, White, Yellow |
| Cable Size | 0.5mm, 0.75mm, 1mm, 1.5mm, 2.5mm, 4mm |
